No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.
This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.
Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives – ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.

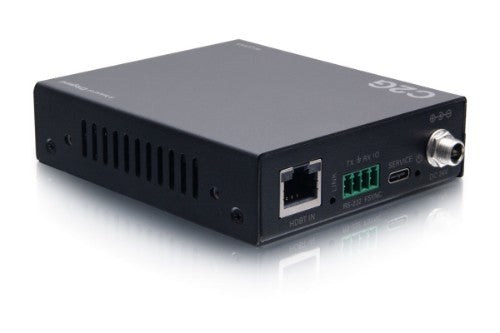

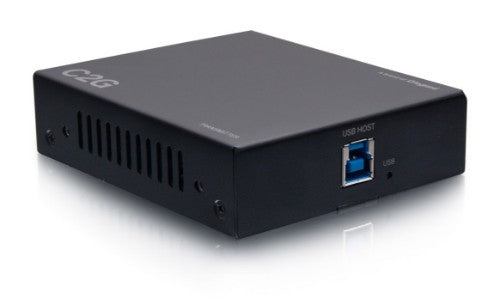

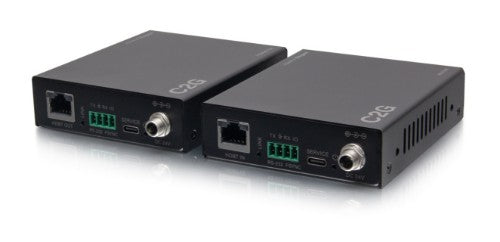

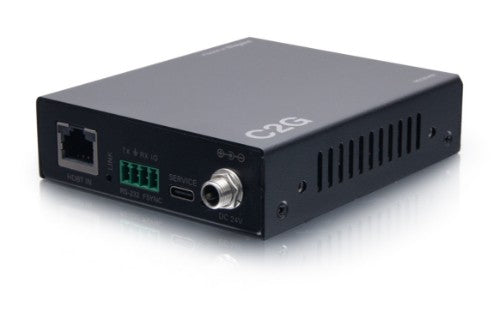

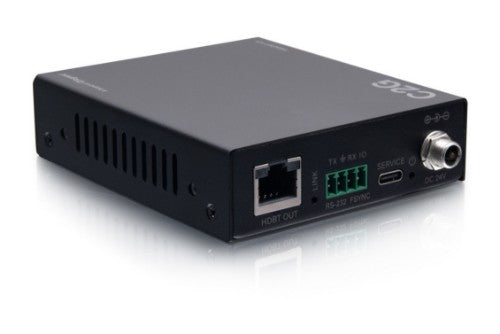

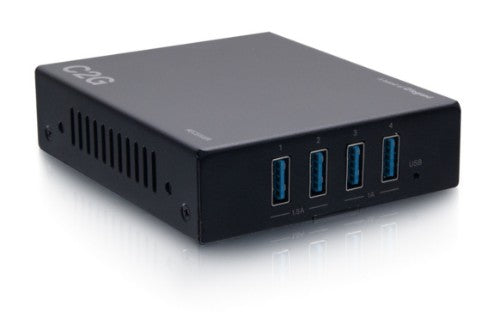

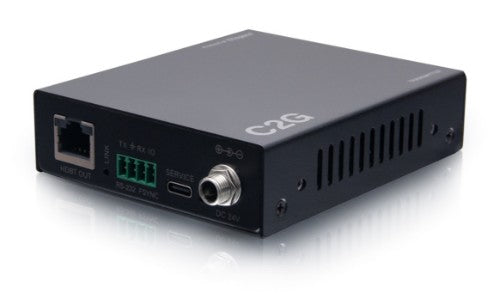

C2G Superbooster AV transmitter & receiver Gray
Part number
C2G54265
Regular price
$724.53 CAD
Sale price
$690.61 CAD
Superbooster 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
Key Features
- Extension of USB 3.2 data up to 328 ft (100m)over Cat6a cable
- USB 3.2 connectivity with data transfer rateup to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
Description
C2G’s Superbooster 4-Port USB over Cat6a Extender Kit – USB 3.2 Gen 1 (5Gbps) was designed to extend data from USB 3.2, 2.0 and 1.1 devices simultaneously up to 328 feet (100m) over a single Cat6a F/FTP cable, making it a perfect solution for USB 3.2 conferencing cameras, interactive white boards, security and monitoring, remote storage, and/or any other USB 3, 2 and 1 device.No software drivers are required, making installation quick and easy with true plug and play convenience. Simply connect the Transmitter to the source computer, extend with a single category cable, and connect the Receiver to as many as four USB devices.
This Superbooster 4-Port Extender Kit provides the ability to connect USB 3.2 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection.
Tested and Proven
This C2G Superbooster USB Extender has undergone rigorous compatibility testing with industry-leading video conferencing cameras, as well as solid state drives, docks, keyboards, mice and flash drives – ensuring total reliability and deployment confidence, plus saving valuable time for AV integrators as well.
Specifications
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Cable types supported | Cat6a |
| Maximum transfer distance | 3937" (100 m) |
| Material | Metal |
| LED indicators | Yes |
| Product colour | Gray |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B |
| Serial ports quantity | 2 |
| Serial interface type | USB C |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Ethernet LAN | Yes |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 3.35 x 3.94 x 1" (85 x 100 x 25.5 mm) |
| Transmitter dimensions (WxDxH) | 3.35 x 3.94 x 1" (85 x 100 x 25.5 mm) |
| Technical details | |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
