Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s ECC
430.39 CAD
Skip to product information
Out of stock
Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s ECC
Part number
KSM32ED8/32HD
Sale price
430.39 CAD
Regular price
434.33 CAD
Taxes and shipping calculated at checkout.
Save
3.94 CAD
Off
1%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.125 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free

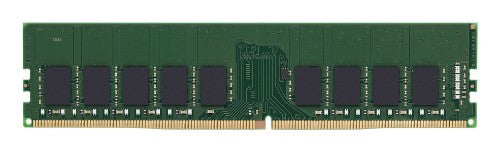

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Design | |
|---|---|
| JEDEC standard | Yes |
| Memory | |
| Buffered memory type | Unregistered (unbuffered) |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| Component for | Server |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory channels | Dual-channel |
| Memory ranking | 2 |
| Programming power voltage (VPP) | 2.5 V |
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| Component for | Server |
| ECC | Yes |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory channels | Dual-channel |
| Memory ranking | 2 |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Yes |
| Memory data transfer rate | 3200 MT/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 5.25" (133.3 mm) |
| Height | 1.23" (31.2 mm) |
