Ubiquiti UXG-Fiber (30W) gateway/controller 1000, 2500, 10000 Mbit/s
381.95 CAD
Skip to product information
Out of stock
Ubiquiti UXG-Fiber (30W) gateway/controller 1000, 2500, 10000 Mbit/s
Part number
UXG-FIBER
381.95 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.605 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS

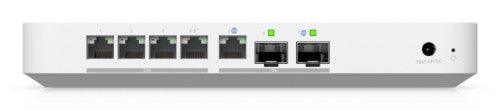

- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
| Design | |
|---|---|
| LED indicators | Activity, LAN, Link, System |
| Product colour | White |
| Enclosure material | Polycarbonate (PC) |
| Performance | |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
| Internal memory | 2000 MB |
| Control display unit | No |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Product colour | White |
| Enclosure material | Polycarbonate (PC) |
| Protocols | |
| Routing protocols | OSPF |
| Network | |
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
| Load balancing | Yes |
| Bluetooth | Yes |
| Security | |
| VLAN support | Yes |
| Security algorithms | IPSec, TLS |
| Firewall security | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45), SFP |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| SFP+ ports quantity | 2 |
| Management features | |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Input voltage | 100 - 240 V |
| Input current | 1.1 A |
| DC input voltage | 54 V |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV |
| Electromagnetic (EMP) protection (contact) | 4 kV |
| Weight & dimensions | |
| Weight | 21.3 oz (605 g) |
| Width | 8.38" (212.8 mm) |
| Height | 1.18" (30 mm) |
| Depth | 5.02" (127.6 mm) |
| Packaging content | |
| Cables included | Power |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
| AC adapter included | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Activity, LAN, Link, System |
| Memory | |
| Internal memory | 2000 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Number of processors installed | 1 |
