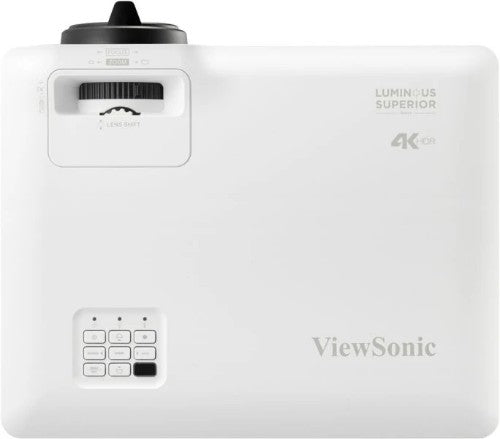

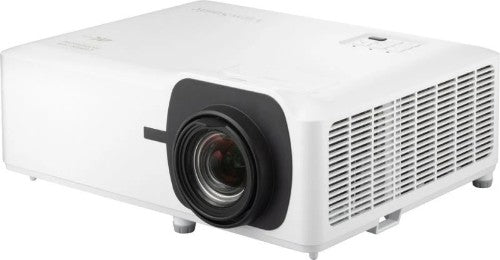

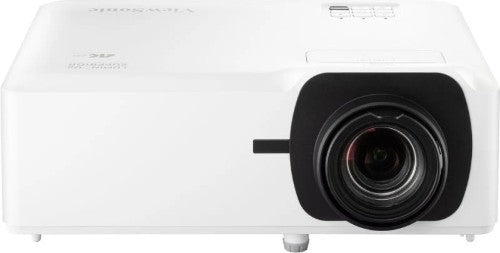

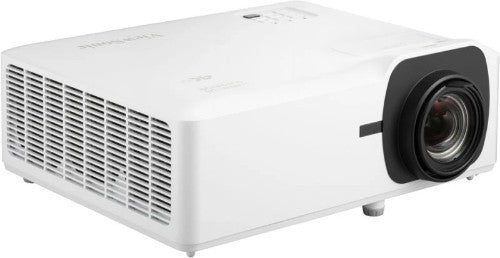

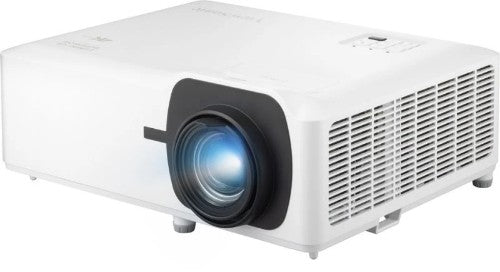

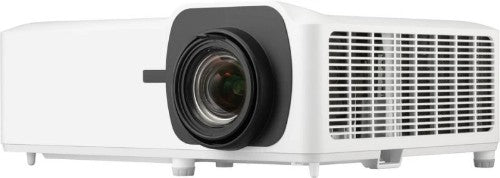

Introducing the LS901-4K from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring 5,500 ANSI lumens of brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens larger than 100 inches. Perfect for museums and educational institutions, the LS901-4K’s ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. With 21:9 aspect ratio support, the LS901-4K is also an ideal choice for Microsoft Teams Rooms. Its 1.7x optical zoom allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into corporate networks. Employing advanced 3rd generation laser phosphor technology, the LS901-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

Projector
Projector brightness	5500 ANSI lumens
Projector native resolution	UHD 4K (3840x2160)
Screen size compatibility	30 - 300"
Native aspect ratio	16:9
Projection distance	31.5 - 533.5" (0.8 - 13.6 m)
Contrast ratio (typical)	3000000:1
Number of colours	1.07 billion colors
Vertical scan range	23 - 240 Hz
Horizontal scan range	15 - 255 kHz
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Light source
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom capability	Yes
Focal length range	17.63 - 27.9 mm
Aperture range (F-F)	2.3 - 3
Vertical lens shift range	-21 - 0%
Offset	154%
Video
Full HD	Yes
Ports & interfaces
HDMI ports quantity	2
USB 2.0 ports quantity	2
Audio (L/R) out	1
Serial interface type	RS-232
AC (power) in	Yes
Network
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Features
Noise level	31 dB
Noise level (economic mode)	25 dB
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	30 W
Design
Market positioning	Education
Product colour	White
Product type	Standard throw projector
LED indicators	Yes
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	245 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Supplier features
Harmonized System (HS) code	8528620000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	13.3" (337 mm)
Depth	11" (280 mm)
Height	5.2" (132 mm)
Weight	10.7 lbs (4.85 kg)
Package width	19.5" (496 mm)
Package depth	7.68" (195 mm)
Package height	15.2" (387 mm)
Package weight	15 lbs (6.8 kg)
Packaging content
Remote control included	Yes
Manual	Yes
Logistics data
Pallet gross width	48" (122 cm)
Pallet gross length	40.2" (102 cm)
Pallet gross height	81.1" (2.06 m)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000
