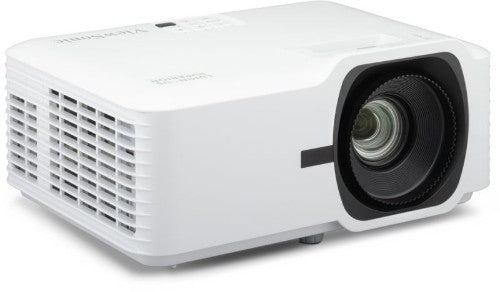

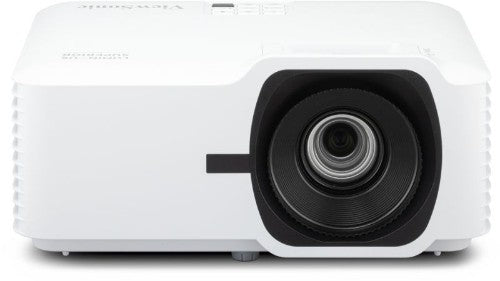

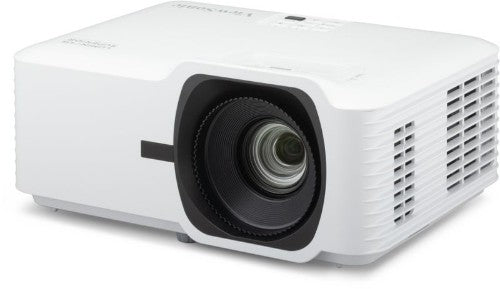

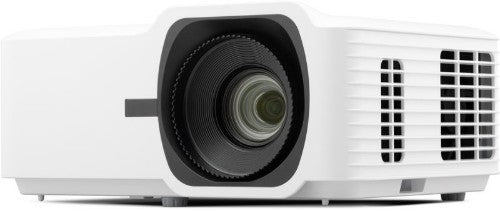

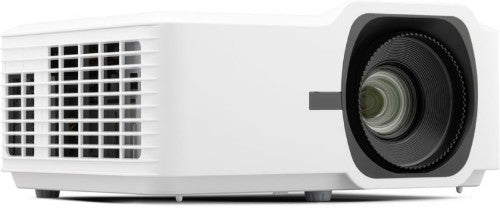

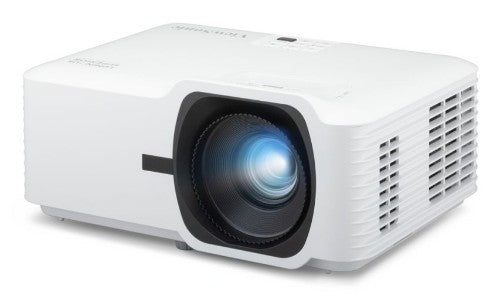

The LS630W is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in WXGA resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, this projector provides 4,500 ANSI Lumens of brightness and an impressive lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. Equipped with a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS630W supports flexible installation options. Comprehensive LAN control simplifies centralized management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

Bright, Compact, Durable
The LS630W incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Clear Visuals for Business/Education Environments
Thanks to the latest laser technology, the LS630W achieves high brightness of 4,500 ANSI Lumens. With WXGA resolution​, the projector ensures bright and detailed images in dim or lit environments.

Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS630W, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​

Save on Costs and Energy
With its advanced lamp-free light source, the LS630W offers a highly energy-efficient and cost-saving display solution by consuming up to 49% less power than competing projectors.

Enhanced Installation Flexibility
Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​

Get ​​Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

Centralized Control for Management Efficiency
The LS630W is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.

Brilliant Colors for an Authentic Golf Experience
Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

Versatile Creative Application​s​
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.

Reliable Long-Term Performance with DLP Projection Technology​
With DLP technology, the LS630W maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.

Upgrade Your Projector with Wireless Content Casting
Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.

Projector
Projector brightness	4500 ANSI lumens
Projection technology	DMD
Projector native resolution	WXGA (1280x800)
Screen size compatibility	30 - 300"
Projection distance	30.3 - 392.9" (0.77 - 9.98 m)
Contrast ratio (typical)	3000000:1
Number of colours	1.07 billion colors
Vertical synchronization (min)	0.024 kHz
Vertical synchronization (max)	0.12 kHz
Matrix type	MLA
Matrix size	0.64"
Keystone correction, vertical	+-30°
Keystone correction, horizontal	+-30°
Horizontal synchronization (min)	15 kHz
Horizontal synchronization (max)	102 kHz
Smart projector	No
Screen size (max)	300"
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source brightness	5500 lm
Lens system
Zoom capability	Yes
Focal length range	16.9 - 21.61 mm
Aperture range (F-F)	2.43 - 2.78
Vertical lens shift range	0 - 60%
Throw ratio	1.18 - 1.54
Optical zoom	1.3x
Offset	124%
Digital zoom	2x
Video
Full HD	Yes
3D	No
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

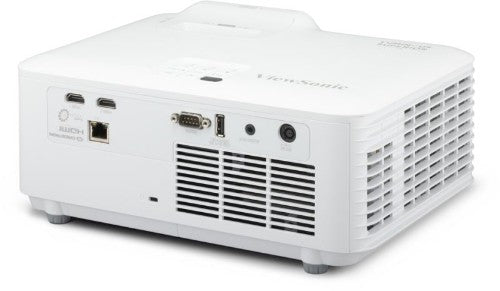

Ports & interfaces
VGA (D-Sub) ports quantity	0
HDMI ports quantity	2
HDMI connector type	Full-size
Composite video in	0
Audio (L/R) in	0
Serial interface type	RS-232
PC Audio out	Yes
HDMI version	1.4
DVI port	No
Component video (YPbPr/YCbCr) in	0
USB 2.0 Type-A ports quantity	1
Network
Smart TV	No
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Features
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Multi
Noise level	32 dB
Noise level (economic mode)	27 dB
HDCP version	1.4
Multimedia
Built-in speaker(s)	Yes
RMS rated power	15 W
Design
Market positioning	Education
Product colour	White
Product type	Standard throw projector
Cable lock slot	Yes
Display
Built-in display	No
Power
Power source	AC
Power consumption (typical)	175 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC adapter output voltage	19.5 V
Supplier features
Harmonized System (HS) code	8528620000
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	11.3" (286 mm)
Depth	8.5" (216 mm)
Height	5.08" (129 mm)
Weight	6.83 lbs (3.1 kg)
Package width	17.3" (440 mm)
Package depth	7.28" (185 mm)
Package height	13.4" (340 mm)
Package weight	9.7 lbs (4.4 kg)
Packaging content
Remote control included	Yes
Warranty card	Yes
Cables included	AC
Technical details
Image lag time	25 ms
Logistics data
Quantity per pack	1 pc(s)
Pallet gross width	48" (122 cm)
Pallet gross length	40.2" (102 cm)
Pallet gross height	85" (2.16 m)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000
