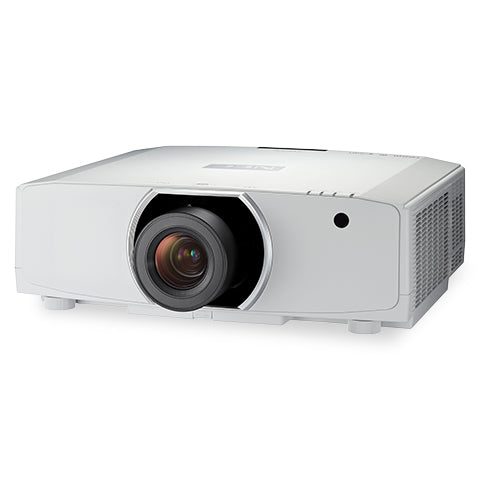

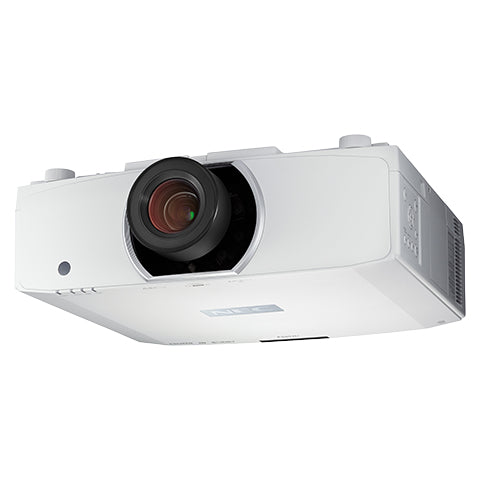

NEC PA653U data projector Large venue projector 6500 ANSI lumens LCD WUXGA (1920x1200) White
5,619.36 CAD
Skip to product information
Out of stock
NEC PA653U data projector Large venue projector 6500 ANSI lumens LCD WUXGA (1920x1200) White
Part number
NP-PA653U-41ZL
5,619.36 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
10.2 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
NEC's PA653U is a 6500-lumen widescreen advanced professional installation model that appeases higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge bledning and stacking. The HDBaseT input and seperate HDBaseT loop out provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
- T4K Ready - HDR10, BT.2020 signal format applicable for use with the “Ultra HD Blu-ray” and “4K TV broadcasting”
- Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
- Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
- High performance video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 6500-lumen brightness enhances images for most applications
- T4K Ready - HDR10, BT.2020 signal format applicable for use with the “Ultra HD Blu-ray” and “4K TV broadcasting”
- Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
- TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Loop Out
- Utilization of the optional MultiPresenter Stick provides those looking for a network connection easy connection with up to 12 devices at once. (Win, MAC, Android, iOS) Screen mirroring for Android and Win. Simple annotation software
- High performance video processing/scaling creates life-like images
- Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
- 6500-lumen brightness enhances images for most applications
| Projector | |
|---|---|
| Projector brightness | 6500 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Screen size compatibility | 40 - 500" |
| Projection distance | 29.1 - 822.8" (0.74 - 20.9 m) |
| Contrast ratio (typical) | 8000:1 |
| Vertical synchronization (min) | 0.024 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Matrix size | 0.76" |
| Keystone correction, vertical | -30 - 30° |
| Keystone correction, horizontal | -40 - 40° |
| Horizontal synchronization (min) | 15 kHz |
| Horizontal synchronization (max) | 153 kHz |
| Light source | |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 370 W |
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 5000 h |
| Lens system | |
| Zoom capability | Yes |
| Focus | Auto/Manual |
| Number of optional lenses supported | 8 |
| Horizontal lens shift range | -0.3 - 0.3° |
| Vertical lens shift range | -0.1 - 0.6° |
| Zoom type | Auto/Manual |
| Video | |
| Analog signal format system | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160 |
| Ports & interfaces | |
| HDBaseT port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| USB 2.0 ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| DVI port | No |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Storage | |
| Card reader integrated | No |
| Features | |
| HDCP | Yes |
| Sync-on-green (SOG) | Yes |
| Separate H/V sync | Yes |
| Composite sync | Yes |
| Certification | UL60950-1, FCC 15 B (ANSI C63.4.2014), C22.2 No.60950-1-07, ICES-003 6 (ANSI C63.4:2014) |
| Noise level | 39 dB |
| Noise level (economic mode) | 33 dB |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Design | |
| Product colour | White |
| Product type | Large venue projector |
| Placement | Desktop, Ceiling |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 506 W |
| Power consumption (standby) | 0.7 W |
| Power consumption (PowerSave) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (economy mode) | 390 W |
| Software | |
| Mac compatibility | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 19.8" (503 mm) |
| Depth | 16.2" (411 mm) |
| Height | 6.61" (168 mm) |
| Weight | 22.5 lbs (10.2 kg) |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Batteries included | Yes |
| Other features | |
| RS-232 ports | 1 |
