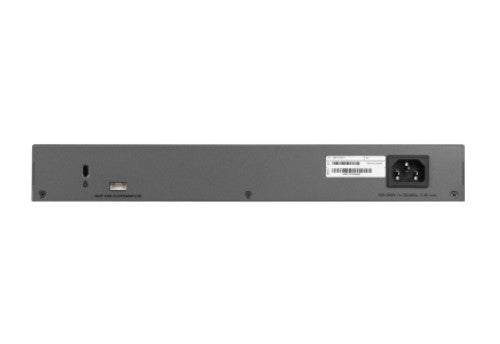

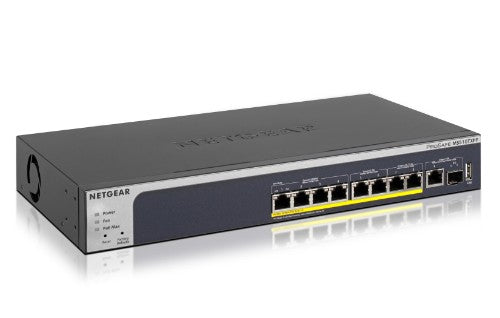

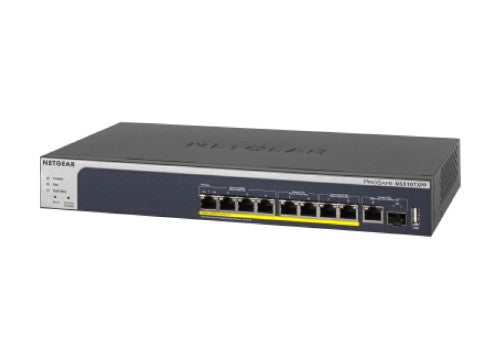

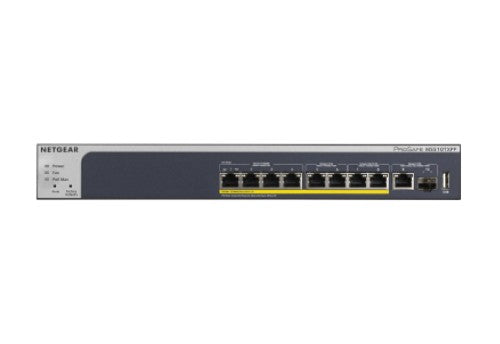

NETGEAR MS510TXPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

NETGEAR MS510TXPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

653.03 CAD

Skip to product information
NETGEAR MS510TXPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray
1/5

NETGEAR MS510TXPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Part number MS510TXPP-100NAS
653.03 CAD
Taxes and shipping calculated at checkout.
Out of stock

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
1.42 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

Introducing a new Gigabit, Multi-Gigabit and 10-Gigabit Smart Managed Pro Switch Family for future-proof deployments
Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy CAT5e / CAT6 cables.

That is why NETGEAR launched its new Multi-Gigabit Smart Managed Pro Switches with 10G Copper/Fiber Uplinks. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the MS510TX and MS510TXPP give the exact speed required, with no downgrade. Also, the new NETGEAR Multi-Gigabit switch ports can connect regular CAT5e Ethernet cables, without the need to upgrade to CAT6 wiring, therefore reducing wiring costs and hassle.

Access, Aggregation or Collapsed Core: You can now have your PCs, printers and routers/firewalls connected at 1G and aggregate Multi-Gigabit Ethernet new devices on the same switch, all line-rate. 10G copper and fiber ports are ready for local servers and storage, or high-speed aggregation to your network core.
Management features
Switch layer L2/L3/L4
Switch type Managed
ARP inspection Yes
Quality of Service (QoS) support Yes
Multicast support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Console port RJ-45
USB 2.0 ports quantity 1
Power connector DC-in jack
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs 256
VLAN support Yes
Spanning tree protocol Yes
Broadcast storm control Yes
10G support No
IGMP snooping Yes
Data transmission
MAC address table 16000 entries
Switching capacity 78 Gbit/s
Jumbo frames 10000
Latency (10 Gbps) 2.36 µs
Jumbo frames support Yes
Packet buffer memory 1.5 MB
Multicast MAC address table 512 entries
Number of VLANs 256
Security
Access Control List (ACL) rules 164
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP server
Multicast features
Multicast MAC address table 512 entries
Multicast support Yes
Design
Rack mounting Yes
Product colour Gray
LED indicators Yes
Certification EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
Performance
Processor frequency 800 MHz
Noise level 28.8 dB
Built-in processor Yes
Packet buffer memory 1.5 MB
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 19.39 W
Power consumption (max) 234.31 W
Power connector DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Heat dissipation 799.5 BTU/h
Virtual LAN features
Number of VLANs 256
VLAN support Yes
Weight & dimensions
Width 12.9" (328 mm)
Depth 6.65" (169 mm)
Height 1.69" (43 mm)
Weight 3.13 lbs (1.42 kg)
Packaging content
User guide Yes
Quick start guide Yes
Manual Yes
Certificates
Certification EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
Packaging data
User guide Yes
Quick start guide Yes
Manual Yes
