Large UHD Signage Display with Slim Design
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.

Slim Depth with Even Bezel
Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

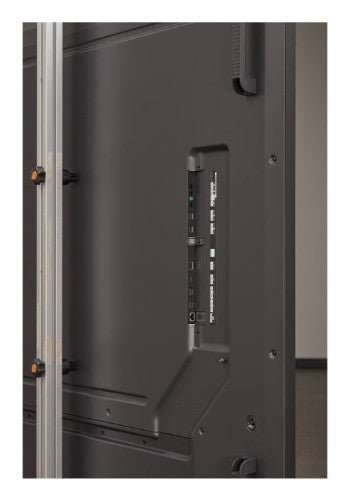

Versatile Operation with Multi-USB
With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

Enhanced Security Features
The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display
LED backlight	Yes
Display diagonal	86"
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	1000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colors
Panel life	50000 h
Touchscreen	No
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Display technology	LED
Colour gamut	95%
Colour depth	8 bit
Native refresh rate	120 Hz
Haze rate	25%
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
USB connector type	USB Type-A
Remote (IR) input	1
USB port	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
USB version	2.0
USB ports quantity	2
RS-232C	Yes
DisplayPorts quantity	1
HDMI input ports quantity	3
Audio
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Placement supported	Indoor
Orientation	Horizontal
Bezel width (bottom)	0.528" (1.34 cm)
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
On Screen Display (OSD)	Yes
HDCP	Yes
Automatic brightness control	Yes
Plug and Play	Yes
HDCP version	1.4/2.2/2.3
Panel life	50000 h
Wi-Fi	Yes
Power
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Heat dissipation	672 BTU/h
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (max)	297 W
Computer system
Operating system installed	WebOS
Computer system	Yes
Computer system type	System on Chip (SoC)
Internal memory	16 GB
Operating system version	6.0
Weight & dimensions
Display width	75.9" (1928.8 mm)
Display depth	1.17" (29.7 mm)
Display height	43.3" (1099.8 mm)
Display weight	116.2 lbs (52.7 kg)
Packaging data
Package width	82.7" (2100 mm)
Package depth	9.96" (253 mm)
Package height	49.2" (1250 mm)
Package weight	144.4 lbs (65.5 kg)
Remote control included	Yes
Cables included	AC, Phone
Batteries included	Yes
Packaging content
Remote control included	Yes
Cables included	AC, Phone
Batteries included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Features
Heat dissipation (max)	1013 BTU/h
Technical details
USB connector type	USB Type-A
Panel type	IPS
LED backlighting type	Edge-LED
Real Time Clock (RTC)	Yes
Other features
USB connector type	USB Type-A
Wi-Fi	Yes
Power consumption (max)	297 W
Panel type	IPS
Display technology	LED
Bezel width (bottom)	0.528" (1.34 cm)
Audio output	1
Plug and Play	Yes
