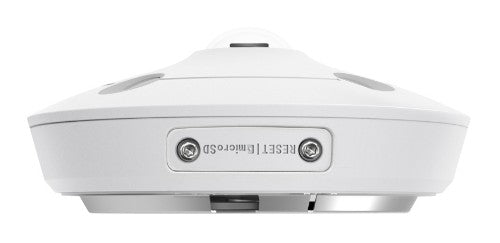

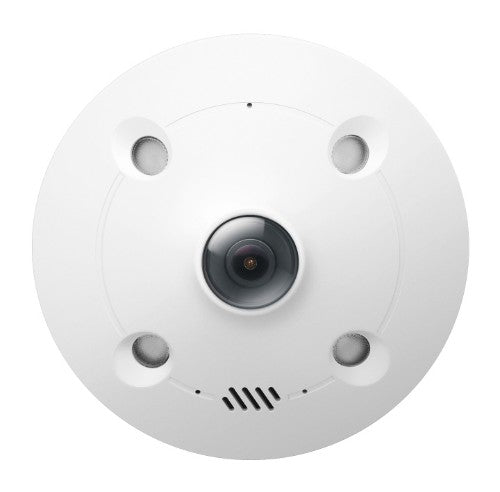

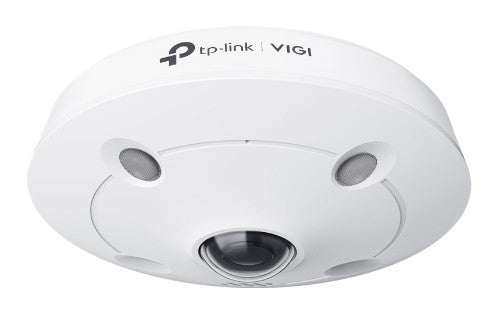

TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall
253.16 CAD
Skip to product information
Out of stock
TP-Link InSight S655I IP security camera Indoor 2560 x 1920 pixels Ceiling/wall
Part number
INSIGHT S655I
253.16 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.44 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 5MP Super-High Definition and IR Night Vision
- 360° Coverage without Blind Spots
- Supports Multiple Display Modes△ and ePTZ
- Supports Ceiling Mount / Wall Mount / Pendant Mount§
- Smart Detection
- Smart Video Enhancement Technology
- Built-In Microphone & Speaker
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
- Suitable for Small Indoor Areas like Retail Shops and Offices
360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
| Dynamic range | 120 dB |
| Design | |
| Weatherproof | Yes |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Protection features | Weatherproof |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Housing material | Metal |
| Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 - 1/10000 s |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 180° |
| Lens viewing angle, diagonal | 180° |
| Number of Privacy masking areas | 4 |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.7" |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Lens system | |
| Maximum aperture number | 2 |
| Detect distance | 1133.9" (28.8 m) |
| Observe distance | 472.4" (12 m) |
| Recognize distance | 224.4" (5.7 m) |
| Identify distance | 110.2" (2.8 m) |
| Fixed focal length | 0.0567" (1.44 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Maximum resolution | 2560 x 1920 pixels |
| Smart IR | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 64 Kbps to 6 Mbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 5 MP |
| Audio | |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Sample rate | 8 kHz |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Bit rate range | 0 - 64 Kbit/s |
| Number of microphones | 1 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Client interoperability | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Number of simultaneous live view channels | 6 channels |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Privacy protection | Yes |
| Alert notification type | E-mail, Push notification |
| Motion sensor | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Reset button | Yes |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12.14 W |
| Power consumption (max) | 11.76 W |
| DC output voltage | 12 |
| Certificates | |
| Certification | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Height | 2.2" (56 mm) |
| Diameter | 5.2" (13.2 cm) |
| Weight | 15.5 oz (440 g) |
| Packaging content | |
| Number of cameras | 1 |
| Technical details | |
| Lens mount interface | M12 |
