SmartFit™ - Comfort Made Easy

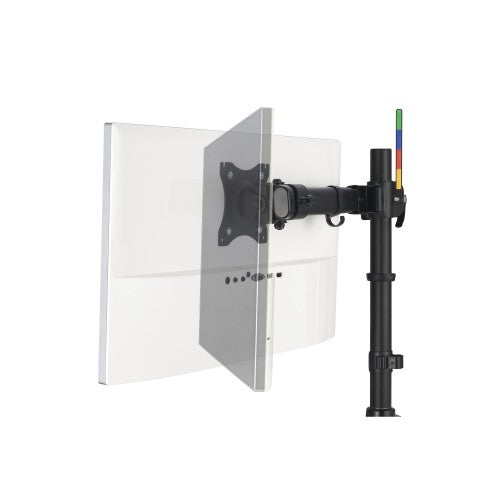

Supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment. Uses data-driven research and a colour-coded fitting chart to support quick and intuitive height-setting.

Hassle-Free Installation

Features a desktop base mount, eliminating the need for drilling holes or clamping mounts to the desk, while significantly reducing the time and labour costs associated with setting up a dual monitor workstation.

Curved Horizontal Rail

Effortlessly positions monitors in an angled orientation that follows the natural curvature of the human eye, providing a more comfortable and immersive viewing experience. Also consolidates the dual monitor setup’s footprint, freeing up valuable workspace while creating a sleek, integrated aesthetic for the workstation.

Sturdy Construction with Weighted Base

Constructed with durable steel materials for long-lasting reliability. Weighted base provides stability and support, ensuring monitors remain securely in place.

Dual Monitor Support

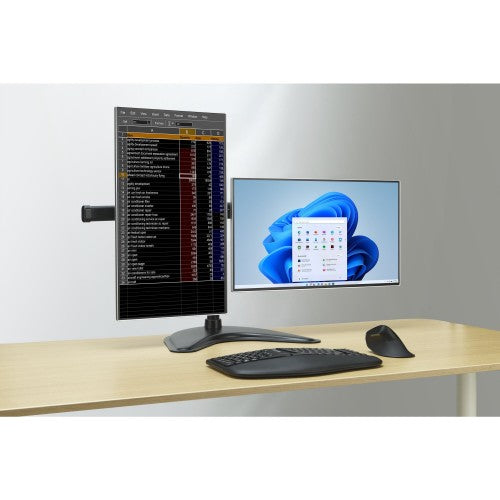

Accommodates up to 2 x 27” monitors via a VESA® 75/100 mounting hole pattern. Supports monitors weighing up to 10kg (22lbs) each. ±45° tilt, ±180° rotation and ±15° pan/swivel adjustments.

Quick-Release Handle for Toolless Height Adjustment

Up to 430mm (16.9”) monitor height adjustment without the need for tools. The quick-release handle allows for swift and convenient height adjustments, adapting to individual preferences with ease.

Silicone Pad for Phone/Tablet

Includes a convenient anti-slip silicone pad as a stable surface for phones or tablets.

5-Year Limited Warranty

Rest assured knowing you’re covered by Kensington with a 5-year limited warranty.

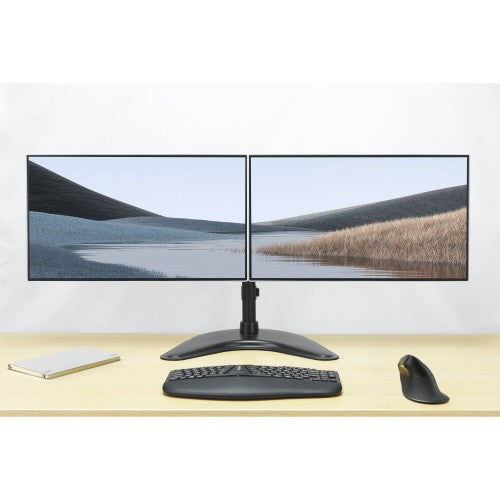

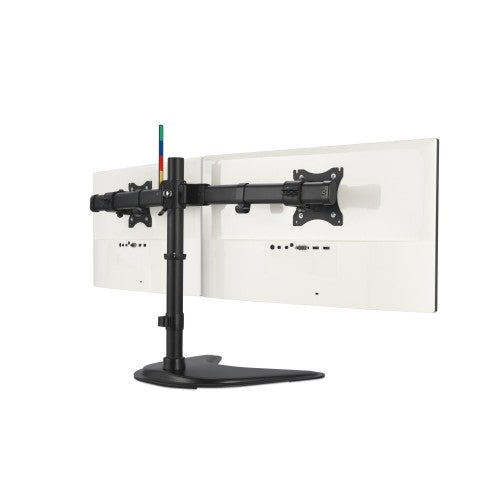

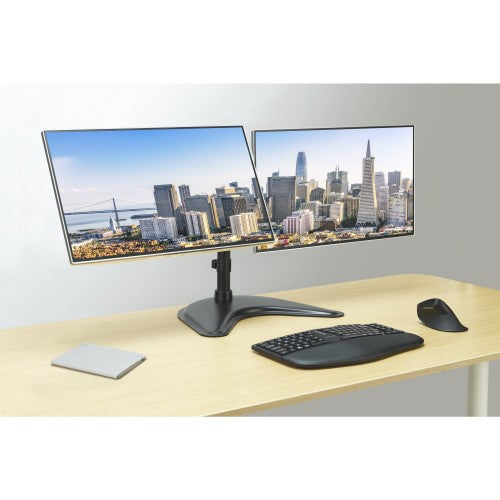

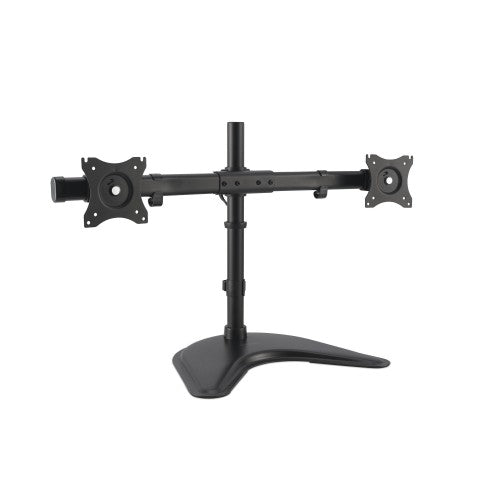

The SmartFit™ Ergo Freestanding Dual Monitor Stand is a convenient solution for supporting dual monitors. It accommodates up to 2 x 27” monitors and uses a sturdy desktop base for a hassle-free installation (no C-clamps or grommets needed). Innovative SmartFit™ provides users with a quick and intuitive height-setting guide, ensuring optimal viewing angles for ergonomic comfort. The curved horizontal rail effortlessly positions two monitors side-by-side, creating a sleek and modern workspace. Constructed with durable steel materials and a weighted base for long-lasting reliability and stability, the stand features a user-friendly quick-release handle for swift and toolless height adjustment, together with a silicone pad for phones and tablets. Includes a 5-year limited warranty.

Mounting
Maximum weight capacity (per display)	22 lbs (10 kg)
Maximum weight capacity	44.1 lbs (20 kg)
Maximum screen size	27"
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Freestanding
Ergonomics
Height adjustment	Yes
Swivel angle range	-15 - 15°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	4.53" (115 mm)
Depth	23.2" (590 mm)
Height	26.2" (665 mm)
Weight	10.7 lbs (4.86 kg)
Package width	19.8" (502 mm)
Package depth	13.1" (334 mm)
Package height	5.31" (135 mm)
Package weight	12.7 lbs (5.76 kg)
Packaging data
Package width	19.8" (502 mm)
Package depth	13.1" (334 mm)
Package height	5.31" (135 mm)
Package weight	12.7 lbs (5.76 kg)
Quantity per pack	1 pc(s)
Manual	Yes
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-10 - 60 °C
Technical details
Compliance certificates	REACH, RoHS
Other features
Compliance certificates	REACH, RoHS
Mounting type	Desk
Mounting	Freestanding
Country of origin	China
Logistics data
Master (outer) case width	20.4" (518 mm)
Master (outer) case length	14" (355 mm)
Master (outer) case height	17" (432 mm)
Master (outer) case gross weight	40.1 lbs (18.2 kg)
Products per master (outer) case	3 pc(s)
Country of origin	China
