SmartFit™ - Comfort Made Easy

Supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment. Uses data-driven research and a colour-coded fitting chart to support quick and intuitive height-setting.

Easy-Grip Handle

Effortlessly position your monitors exactly where you want them with the easy-grip handle.

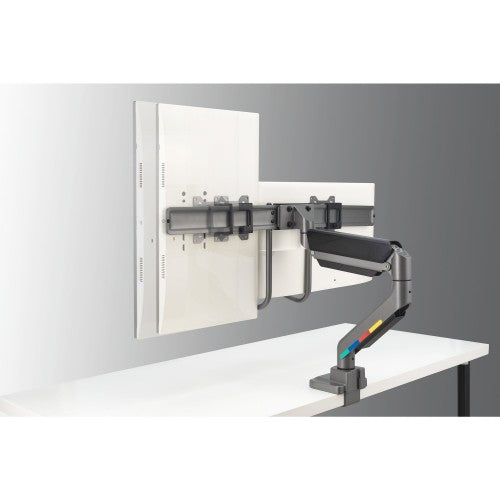

Curved Horizontal Rail with Sliding Monitor Bar

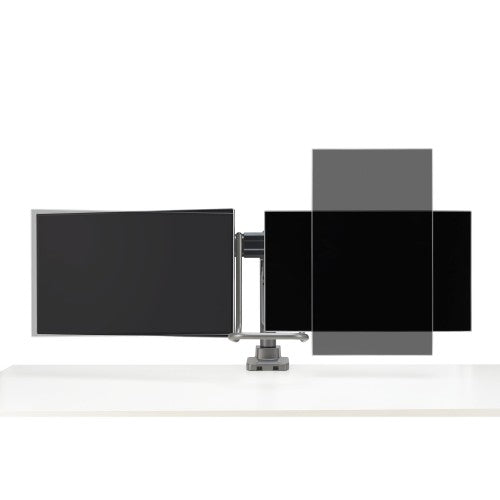

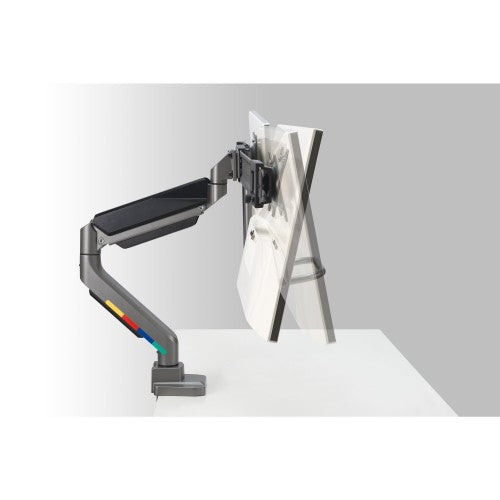

Supports separate horizontal adjustment for each monitor, allowing you to effortlessly achieve perfect viewing angles for a comfortable and productive workspace. Offers ±10° tilt, ±10° swivel and ±180° rotation.

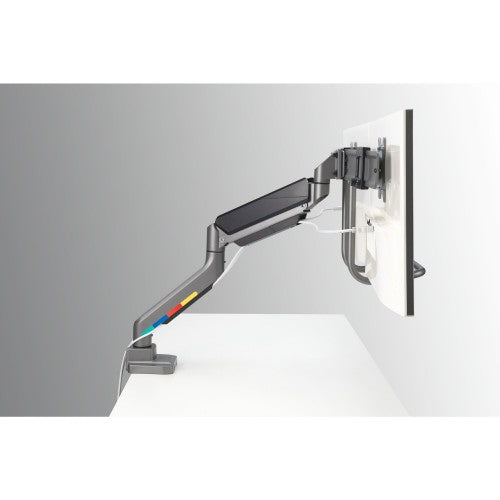

Gas Spring Mechanism

Ensures smooth and easy height adjustments with less physical effort, supporting ergonomic comfort throughout your workday.

Dual Monitor Support

Securely accommodates two side-by-side 32” monitors weighing up to 9kg (19.8lbs) each, using a VESA® (75/100) standard mounting hole pattern.

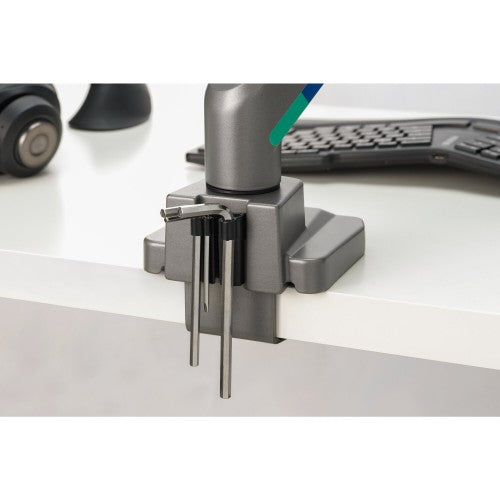

C-Clamp or Grommet Mount

The c-clamp or grommet mount base easily attaches to desks and tables, ensuring a hassle-free installation and stable monitor support.

5-Year Limited Warranty

Rest assured knowing you’re covered by Kensington with a 5-year limited warranty.

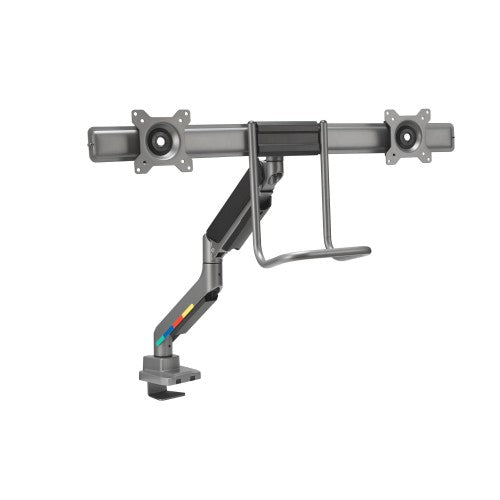

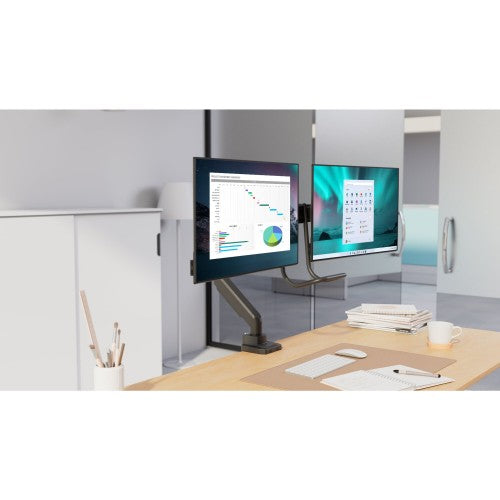

An ideal solution for shared workspaces, SmartFit™ Dual Monitor Arm with Crossbar and Handle harnesses the power of gas spring technology to unlock effortless ergonomic control for your dual-monitor setup. Simply grasp the easy-grip handle to smoothly raise or lower your monitors with the lightest of touches. The gas spring makes even the heaviest dual-monitor configurations feel weightless, enabling you to fine-tune ergonomic positioning throughout the day with less physical exertion. With a separate horizontal adjustment for each monitor, achieving the perfect viewing setup is easy. The innovative curved horizontal rail accommodates two side-by-side 32” monitors weighing up to 9kg (19.8lbs) each, together with the C-clamp providing hassle-free installation. Includes a 5-year limited warranty.

Mounting
Maximum weight capacity (per display)	19.8 lbs (9 kg)
Maximum weight capacity	39.7 lbs (18 kg)
Maximum screen size	32"
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Clamp/Grommet
Ergonomics
Height adjustment	Yes
Height adjustment range	10.4 - 22" (265 - 560 mm)
Swivel angle range	-10 - 10°
Tilt angle range	-10 - 10°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Gray
Housing material	Aluminum, Plastic, Steel
Weight & dimensions
Width	33.5" (850 mm)
Depth	25.2" (640 mm)
Height	27.2" (690 mm)
Weight	14.8 lbs (6.7 kg)
Package width	17.9" (455 mm)
Package depth	12.7" (323 mm)
Package height	6.02" (153 mm)
Package weight	17.1 lbs (7.75 kg)
Packaging data
Package width	17.9" (455 mm)
Package depth	12.7" (323 mm)
Package height	6.02" (153 mm)
Package weight	17.1 lbs (7.75 kg)
Manual	Yes
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 85%
Storage temperature (T-T)	-10 - 60 °C
Technical details
Compliance certificates	REACH, RoHS
Other features
Compliance certificates	REACH, RoHS
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	18.7" (475 mm)
Master (outer) case length	13.5" (342 mm)
Master (outer) case height	12.8" (325 mm)
Master (outer) case gross weight	35.9 lbs (16.3 kg)
Products per master (outer) case	2 pc(s)
Country of origin	China
