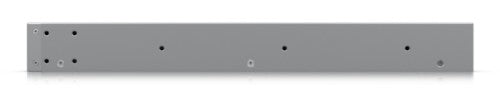

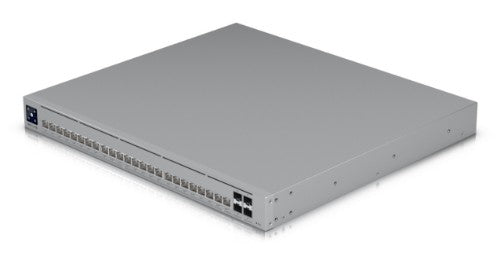

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Gray
Part number
USW-PRO-HD-24-POE
$1,358.03 CAD
230 Gbps, (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-), 56W, 22x 2.5/1 GbE, 100/10 MbE RJ45, 2x 10/5/2.5/1 GbE, 100 MbE RJ45, 4x 10/1G SFP+, SGCC steel, 442.4 x 400 x 44 mm
Key Features
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports
- (4) 10G SFP+ ports
- DC power backup ready**
- 600W total PoE availability
Description
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.Specifications
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 22 |
| 10G Ethernet (copper) ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1x |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| IPv4 routes | 12000 |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 230 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 MB |
| Static route | Yes |
| Forwarding rate | 171 Mpps |
| Throughput | 115 Gbit/s |
| Number of VLANs | 1000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP guarding, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Gray |
| Reset button | Yes |
| Form factor | 1U |
| Display type | LCM |
| LED indicators | Link, Speed, Status |
| Housing material | SGCC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 60 W |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC/PoE |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 600 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 15.7" (400 mm) |
| Height | 1.73" (44 mm) |
| Weight | 13.7 lbs (6.2 kg) |
| Packaging content | |

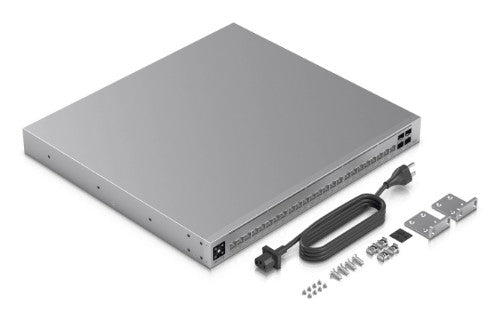

| Rack mount kit | Yes |
| Cables included | Power |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 2 MB |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | Power |
