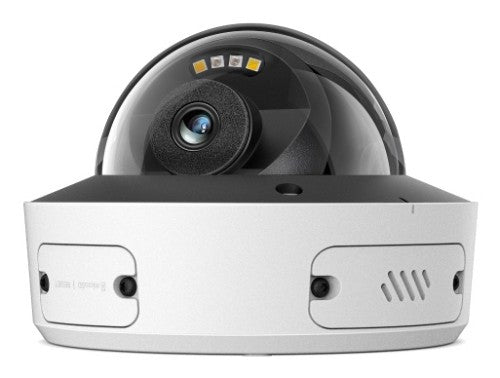

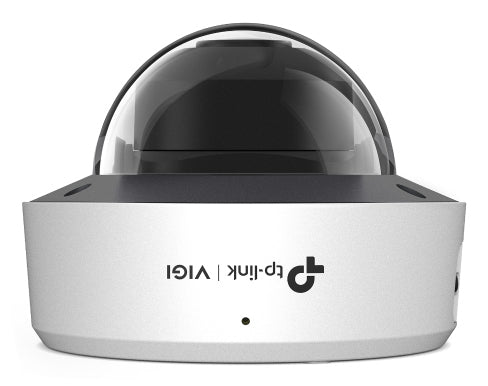

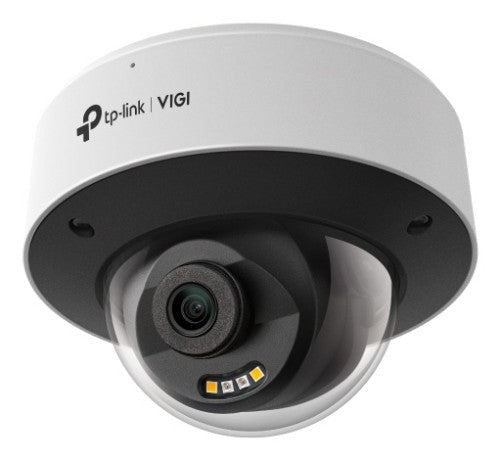

TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
122.60 CAD
Skip to product information
Out of stock
TP-Link InSight S245 Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
Part number
INSIGHT S245(4MM)
122.60 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.62 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics†
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Maximum operating distance | 3149.6" (80 m) |
| Dynamic range | 120 dB |
| Design | |
| Form factor | Dome |
| Weatherproof | Yes |
| Product colour | White |
| Mounting type | Ceiling |
| Protection features | Waterproof |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Housing material | Metal |
| Camera | |
| Minimum illumination | 0 lx |
| Tilt angle range | 0 - 75° |
| Camera shutter speed | 1/3 to 1/10000 |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 88° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 105.4° |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.7" |
| Lens system | |
| Maximum aperture number | 1.6 |
| Detect distance | 3149.6" (80 m) |
| Observe distance | 1299.2" (33 m) |
| Recognize distance | 629.9" (16 m) |
| Identify distance | 315" (8 m) |
| Fixed focal length | 0.157" (4 mm) |
| Night vision | |
| Night vision | Yes |
| LED type | IR/White |
| Video | |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Maximum resolution | 2688 x 1520 pixels |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| Back Light Compensation (BLC) | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 4 MP |
| Video recording | Yes |
| Audio | |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Sample rate | 8 kHz |
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Audio formats supported | G.711 A-law |
| Bit rate range | 0 - 64 Kbit/s |
| Number of microphones | 1 |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Live view | Yes |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | Push notification |
| Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| Motion sensor | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 3149.6" (80 m) |
| Password protection | Yes |
| Mirror | Yes |
| Built-in siren | Yes |
| Human and vehicle targets classification | Yes |
| Digest authentication | Yes |
| Management features | |
| Web browser | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Cloud-managed | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12.52 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 4.8" (122 mm) |
| Depth | 4.8" (122 mm) |
| Height | 3.5" (89 mm) |
| Weight | 21.9 oz (620 g) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
