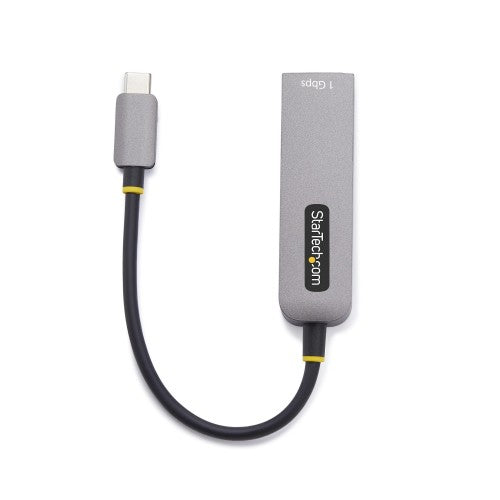

StarTech.com 1GPD3-USB-C-ETHERNET network card 5000 Mbit/s
40.72 CAD
Skip to product information
Out of stock
StarTech.com 1GPD3-USB-C-ETHERNET network card 5000 Mbit/s
Part number
1GPD3-USB-C-ETHERNET
40.72 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.027 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 100W CHARGING: 100W PD pass-through port allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging; Devices with limited USB-C ports can share a port without an additional hub
- BROAD COMPATIBILITY: Auto-installs on most operating systems including Windows 7 and up, Linux LTS Kernel 4.19+ and up, MacOS/iOS/ChromeOS; Works with MacBooks, Chromebooks and all hardware platforms, including Intel, AMD, ARM (Snapdragon) & Apple Silicon
- 1G OVER CAT5E: Add 1Gbps network access to laptops/tablets/iPhones with a Type-C port; Enables ethernet connection without losing access to the original USB-C port for charging/connecting additional peripherals; Ideal for devices with limited ports
- APPLICATIONS: Well-suited replacement for broken ethernet ports on laptops; Provides a wired connection that is faster and more secure than wireless for home, work and travel; Efficiently provision and maintain laptops with WoL & PXE
- TECH SPECS: USB-C 3.2 Gen 1 (5Gbps); 1x RJ45; 6in (15cm) Attached Cable; 10/100Mbps & 1Gbps; Realtek Chipset; 9K Jumbo Frames; WoL; VLAN; PXE Boot support; USB Bus Powered; Thunderbolt Compatible
Add Gigabit Ethernet network connectivity to a Laptop or Desktop Computer through a USB Type-C port
Add 1Gbps network access to laptops, tablets, and iPhones equipped with a USB-C port. This USB-C to Ethernet Adapter features a 100W PD pass-through port that allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging. Enable ethernet connection without losing access to the original USB-C port for charging or connecting additional peripherals; well-suited for devices with limited ports.
1 Gigabit Network Connection
This adapter supports both current and legacy Ethernet networks down to 10Mbps, making it ideal for providing a reliable network connection almost anywhere whether at home, work or while traveling. The Realtek chipset is broadly supported on new and older laptops enabling PXE capabilities to aid IT departments with provisioning and maintaining systems along with Wake-on-LAN (WoL) support. The adapter provides a wired connection that is faster and more secure than wireless, making it ideal for IT professionals.
Native Driver Support Makes Installation Easy
Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (macOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required.
The StarTech.com Advantage
Add 1Gbps network access to laptops, tablets, and iPhones equipped with a USB-C port. This USB-C to Ethernet Adapter features a 100W PD pass-through port that allows you to connect a charger to the same USB-C port, enabling simultaneous Ethernet connection and device charging. Enable ethernet connection without losing access to the original USB-C port for charging or connecting additional peripherals; well-suited for devices with limited ports.
1 Gigabit Network Connection
This adapter supports both current and legacy Ethernet networks down to 10Mbps, making it ideal for providing a reliable network connection almost anywhere whether at home, work or while traveling. The Realtek chipset is broadly supported on new and older laptops enabling PXE capabilities to aid IT departments with provisioning and maintaining systems along with Wake-on-LAN (WoL) support. The adapter provides a wired connection that is faster and more secure than wireless, making it ideal for IT professionals.
Native Driver Support Makes Installation Easy
Simply plug this USB-C to Ethernet adapter into the USB port on a laptop and connect to a network. The network adapter Realtek chipset provides native driver support for Windows (10/11, ARM supported) Macbooks (macOS), Chromebooks (ChromeOS), Snapdragon, Linux, iPhones, and tablets. Any Windows operating systems without the driver will be automatically prompted to download the software directly from the adapter, ensuring quick and effective installation with no Internet access required.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | No |
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector form factor | Straight |
| Bandwidth | |
| Maximum data transfer rate | 5000 Mbit/s |
| Full duplex | Yes |
| Network | |
| Chipset | Realtek RTL8153B |
| Maximum data transfer rate | 5000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Jumbo frames | 9000 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| VLAN tagging | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Design | |
| Internal | No |
| Product colour | Gray |
| Chipset | Realtek RTL8153B |
| Mean time between failures (MTBF) | 1912948 h |
| LED indicators | Yes |
| Component for | PC/Laptop |
| Power | |
| Output voltage | 5 V |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Depth | 0.866" (22 mm) |
| Height | 0.591" (15 mm) |
| Weight | 0.871 oz (24.7 g) |
| Package width | 8.66" (220 mm) |
| Package depth | 5.04" (128 mm) |
| Package height | 0.63" (16 mm) |
| Package weight | 0.952 oz (27 g) |
| Packaging data | |
| Package width | 8.66" (220 mm) |
| Package depth | 5.04" (128 mm) |
| Package height | 0.63" (16 mm) |
| Package weight | 0.952 oz (27 g) |
| Performance | |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Mean time between failures (MTBF) | 1912948 h |
| Cable length | 5.91" (0.15 m) |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022 |
| Other features | |
| Chipset | Realtek RTL8153B |
| Jumbo frames | 9000 |
| Cable length | 5.91" (0.15 m) |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 19.7" (500 mm) |
| Master (outer) case length | 12.6" (320 mm) |
| Master (outer) case height | 8.27" (210 mm) |
| Products per master (outer) case | 250 pc(s) |
