Kingston Technology KSM64R52BD4-128MB memory module 128 GB 1 x 128 GB DDR5 6400 MT/s
1,783.92 CAD
Skip to product information
Out of stock
Kingston Technology KSM64R52BD4-128MB memory module 128 GB 1 x 128 GB DDR5 6400 MT/s
Part number
KSM64R52BD4-128MB
1,783.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.034 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- RoHS Compliant and Halogen-Free

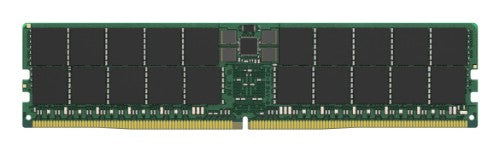

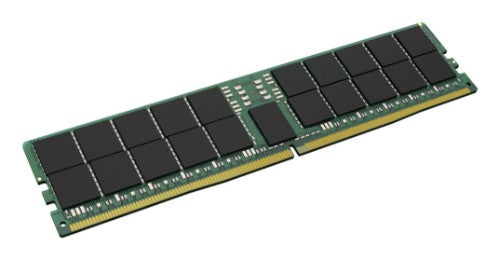

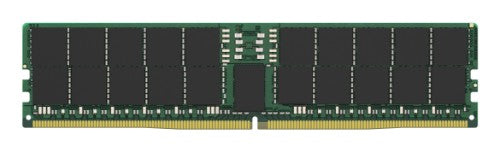

Kingston's KSM64R52BD4-128MB is a 16G x 80-bit (128GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 8G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Design | |
|---|---|
| JEDEC standard | Yes |
| Memory | |
| Buffered memory type | Registered (buffered) |
| Internal memory | 128 GB |
| Internal memory type | DDR5 |
| Component for | PC/server |
| ECC | No |
| Memory layout (modules x size) | 1 x 128 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 52 |
| Memory voltage | 1.1 V |
| Lead plating | Gold |
| Module configuration | 16384M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory ranking | 2 |
| Programming power voltage (VPP) | 1.8 V |
| Features | |
| On-Die ECC | Yes |
| Buffered memory type | Registered (buffered) |
| Internal memory | 128 GB |
| Internal memory type | DDR5 |
| Component for | PC/server |
| ECC | No |
| Memory layout (modules x size) | 1 x 128 GB |
| Memory form factor | 288-pin DIMM |
| CAS latency | 52 |
| Memory voltage | 1.1 V |
| Lead plating | Gold |
| Module configuration | 16384M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory ranking | 2 |
| Programming power voltage (VPP) | 1.8 V |
| JEDEC standard | Yes |
| Memory data transfer rate | 6400 MT/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 5.25" (133.3 mm) |
| Height | 1.23" (31.2 mm) |
