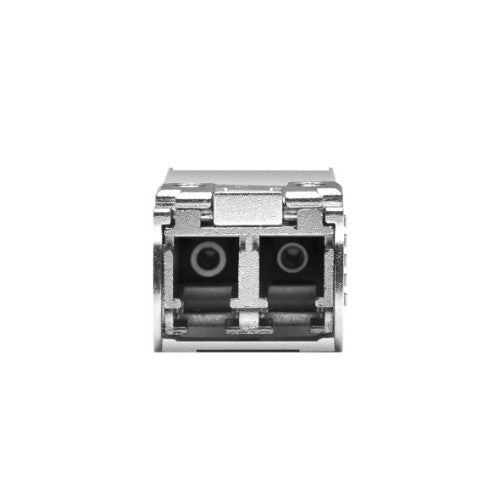

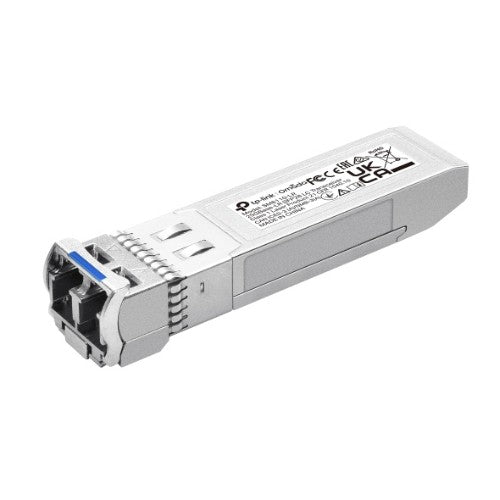

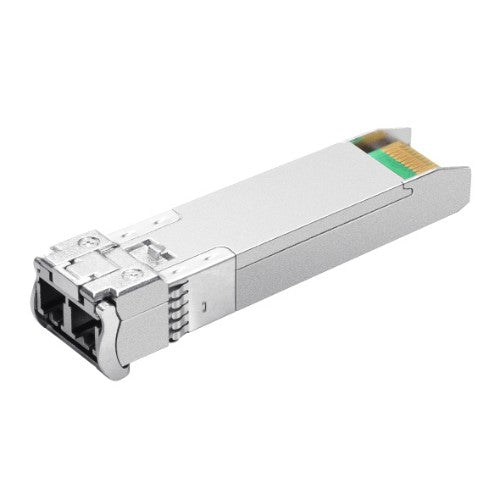

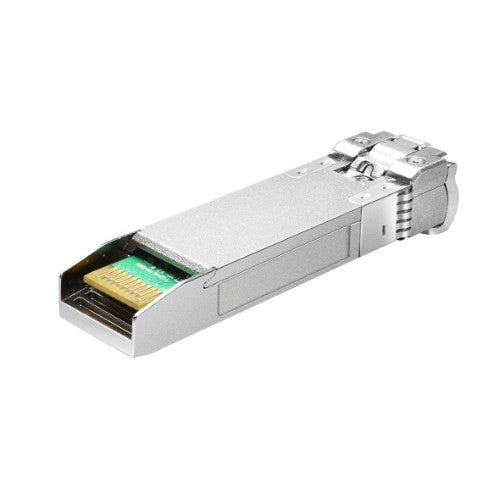

TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
81.68 CAD
Skip to product information
Out of stock
TP-Link SM6110-LR network transceiver module Fiber optic 25780 Mbit/s SFP+ 1310 nm
Part number
SM6110-LR
81.68 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.036 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Single-mode SFP+/SFP28 LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Low Power Consumption no more than 1.2 W
- Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
- Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X
The SM6110-LR is designed to extend transfer distances based on 10G/25G Ethernet connectivity. It is a 10G/25GBASE-LR high performance 1310 nm single-mode SFP+/SFP28 transceiver. It supports full duplex, 10G/25G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 25780 Mbit/s |
| Maximum transfer distance | 393700.8" (10000 m) |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Product colour | Gray |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Features | |
| Product colour | Gray |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 25780 Mbit/s |
| Weight & dimensions | |
| Width | 2.24" (57 mm) |
| Depth | 0.551" (14 mm) |
| Height | 0.472" (12 mm) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
