What This Product Does

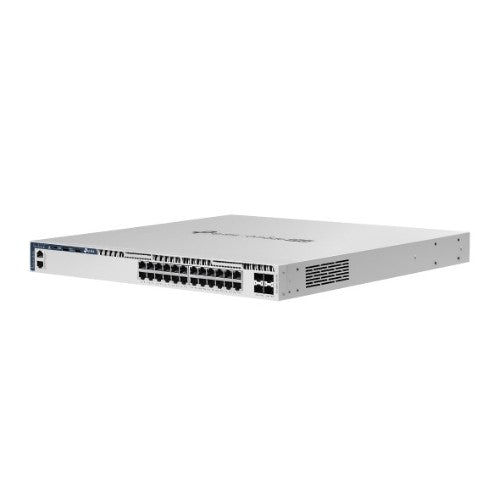

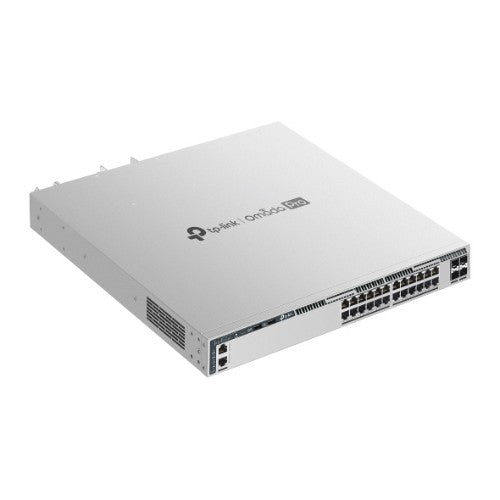

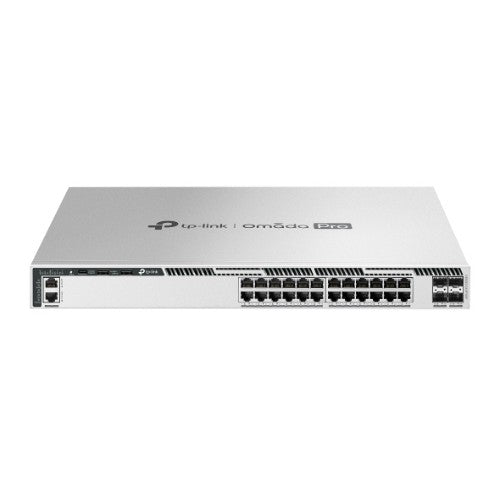

Omada Pro S6500-24GP4XF is a high-performance L3 managed PoE+ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, stacking options, and redundant power supply modules. It boasts a 720 W PoE budget,*24× Gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S6500-24GP4XF offers a dependable networking solution for SMBs, enterprises, and ISPs.

IEEE 802.3at/af-compliant Power over Ethernet
24× IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.

High-speed Connectivity and Powerful Stacking
24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.

Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.

Comprehensive Security Functions
Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks.

Highly Available
Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.

Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.‡ Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from central management via the web or Omada app, S6500-24GP4XF can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.

Management features
Switch layer	L3
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-C
USB 2.0 ports quantity	2
Network
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Active link detection	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes
Data transmission
MAC address table	32000 entries
Switching capacity	128 Gbit/s
Jumbo frames	9000
Number of queues	8
Jumbo frames support	Yes
Packet buffer memory	3 MB
Static route	Yes
Forwarding rate	95.2 Mpps
Security
Loop protection	Yes
Static port security	Yes
SSH/SSL support	Yes
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
Authentication type	AAA, RADIUS, TACACS+
DHCP features	DHCP relay, DHCP server, DHCPv6 relay
Multicast features
Multicast support	Yes
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Gray
Form factor	1U
Number of fans	4 fan(s)
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	916.6 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	720 W
Operational conditions
Operating temperature (T-T)	-5 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	3125.6 BTU/h
Virtual LAN features
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Weight & dimensions
Width	17.3" (440 mm)
Depth	16.5" (420 mm)
Height	1.73" (44 mm)
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
Performance
Stackable	Yes
Packet buffer memory	3 MB
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC
