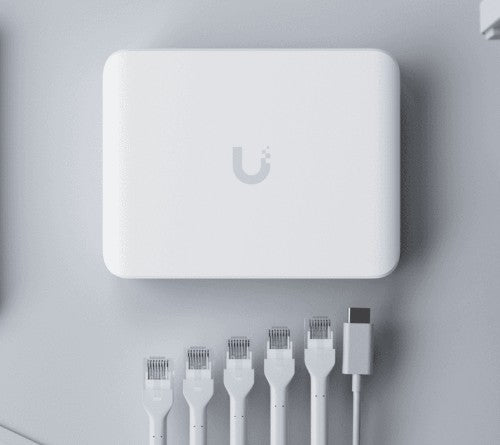

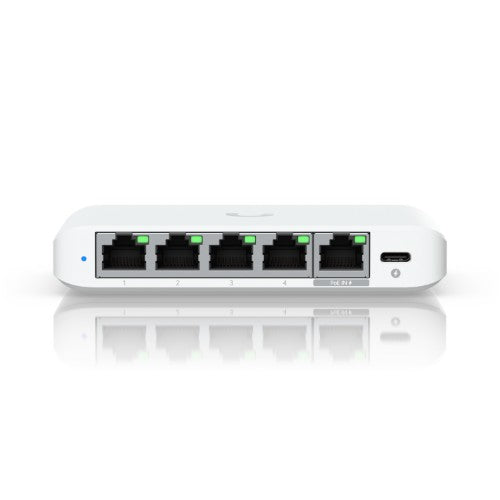

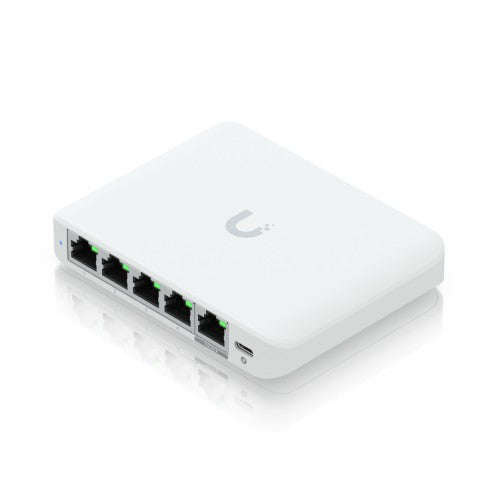

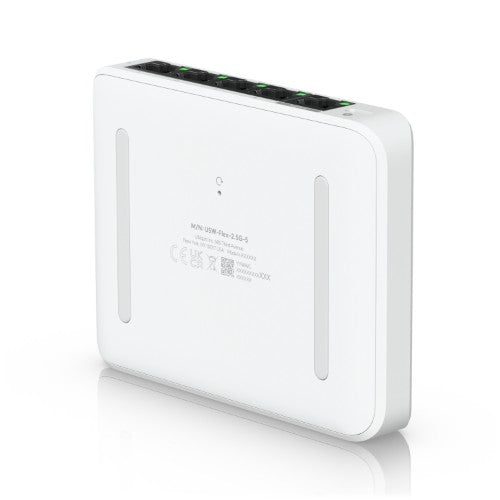

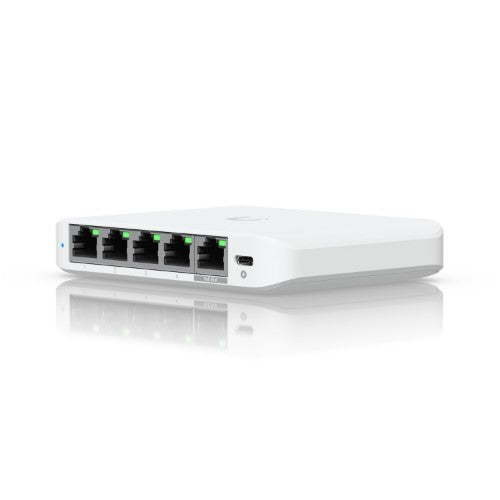

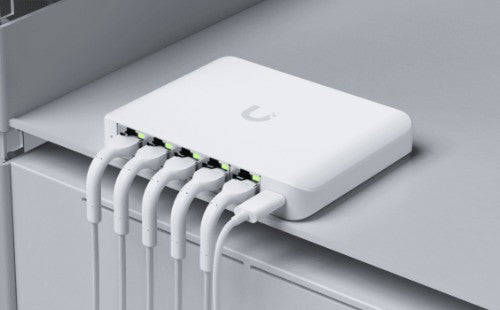

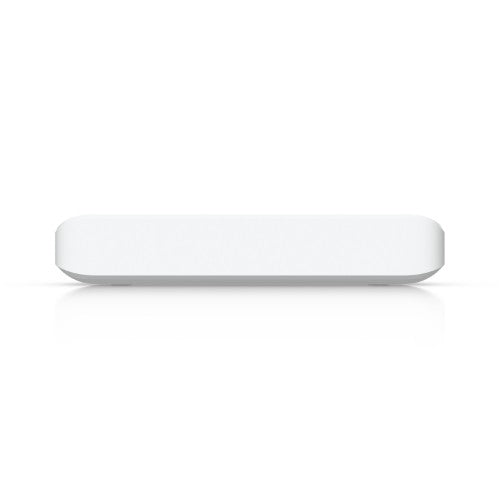

Ubiquiti UniFi Flex Mini 2.5G Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop White
Part number
USW-FLEX-2.5G-5
$71.29 CAD
5x 1/2.5 GbE RJ45, 25 Gbps, 18.6 Mpps, 12.5 Gbps throughput, DC 5V/1A/5W, PoE 44-57V/6.4W, -20 - 45°C, 10 - 90% humidity, 117.1 x 90 x 21.2 mm, 206 g
Key Features

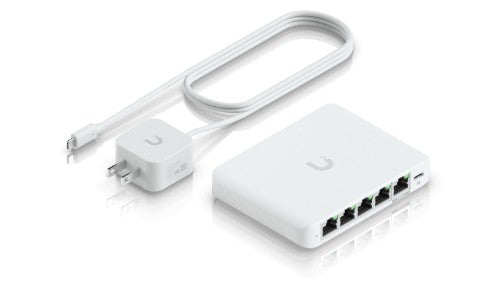

- Optional powering with included 5V, 1A USB-C adapter
- Ethernet In-Band
- Certifications CE, FCC, IC
Description
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Reset button | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | USB |
| 2.5G Ethernet (copper) ports quantity | 5 |
| USB Type-C ports quantity | 1 |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Network | |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Data transmission | |
| Switching capacity | 25 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 18.6 Mpps |
| Throughput | 12.5 Gbit/s |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | White |
| Reset button | Yes |
| Form factor | Desktop |
| LED indicators | Activity, Power, Progress |
| Housing material | Polycarbonate (PC) |
| Certification | CE, FCC, IC |
| Performance | |
| Minimum system requirements | UniFi Network Version 8.4.62 and later |
| Power | |
| Power supply included | Yes |
| Power consumption (max) | 5 W |
| Power plug type | Type A |
| Input current | 1 A |
| DC input voltage | 5 V |
| Power source | AC/DC/PoE |
| Power connector | USB |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 6.4 W |
| Power over Ethernet (PoE) voltage | 57 V |
| Other features | |
| Networking features | STP / RSTP with priorities and port-level disable, Egress rate limit |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 4.61" (117.1 mm) |
| Depth | 3.54" (90 mm) |
| Height | 0.835" (21.2 mm) |
| Weight | 7.27 oz (206 g) |
| Packaging data | |
| AC adapter included | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Certification | CE, FCC, IC |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| System requirements | |
| Minimum system requirements | UniFi Network Version 8.4.62 and later |
| Packaging content | |
| AC adapter included | Yes |
