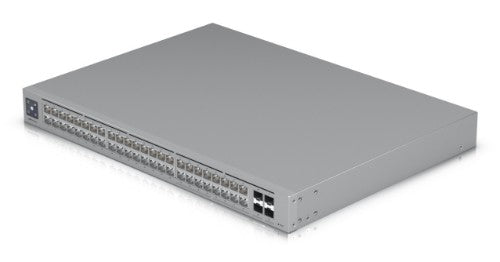

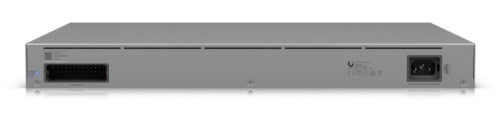

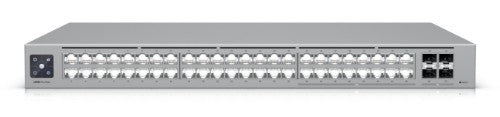

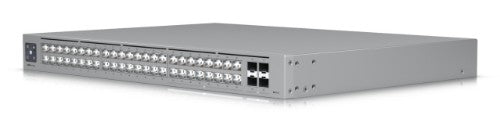

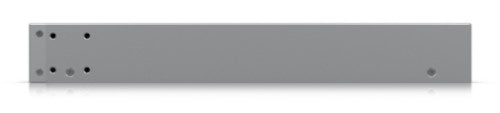

Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Gray
883.66 CAD
Skip to product information
In stock
Ubiquiti Pro Max 48 L3 2.5G Ethernet (100/1000/2500) 1U Gray
Part number
USW-PRO-MAX-48
883.66 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
4.8 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- (16) 2.5 GbE RJ45 ports
- (32) GbE RJ45 ports
- (4) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
| Management features | |
|---|---|
| Switch layer | L3 |
| Reset button | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 32 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 16 |
| Network | |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Switching capacity | 224 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 166.656 Mpps |
| Throughput | 112 Gbit/s |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP snooping |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Gray |
| Reset button | Yes |
| Form factor | 1U |
| Display type | LCM |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 100 W |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 12.8" (325 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 10.6 lbs (4.8 kg) |
| Packaging content | |
| Cables included | Power |
| Mounting brackets included | Yes |
| Packaging data | |
| Mounting brackets included | Yes |
| Cables included | Power |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
