ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

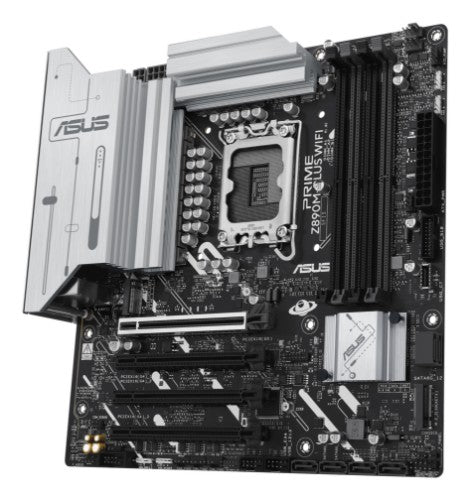

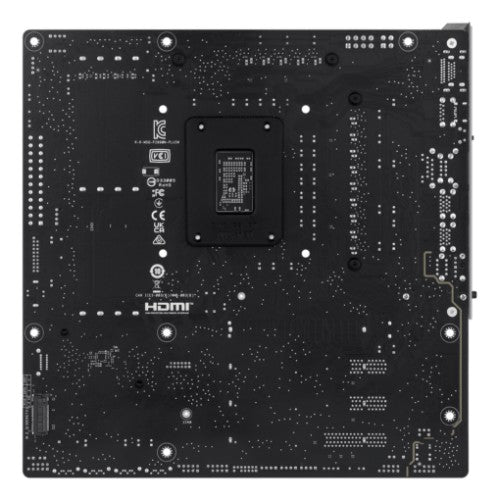

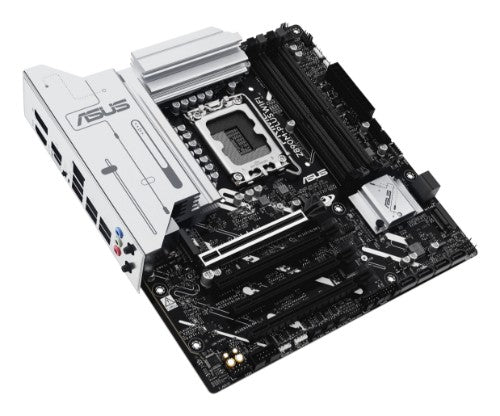

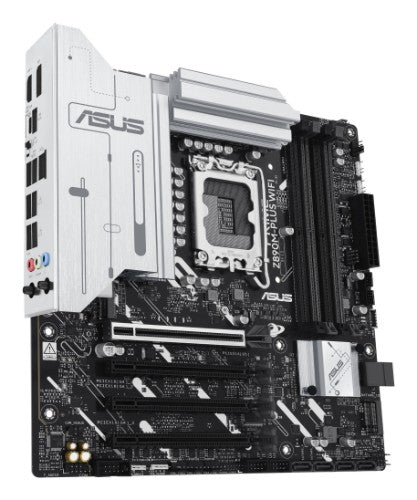

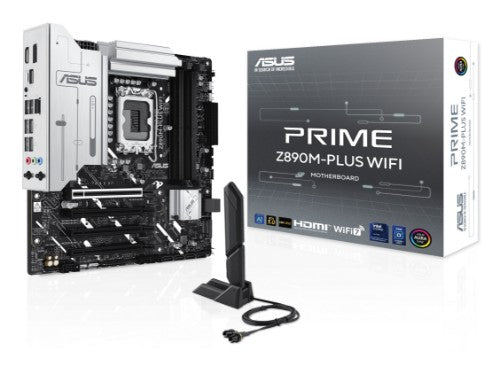

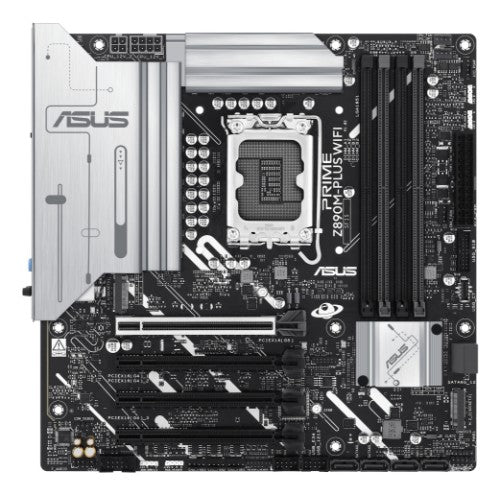

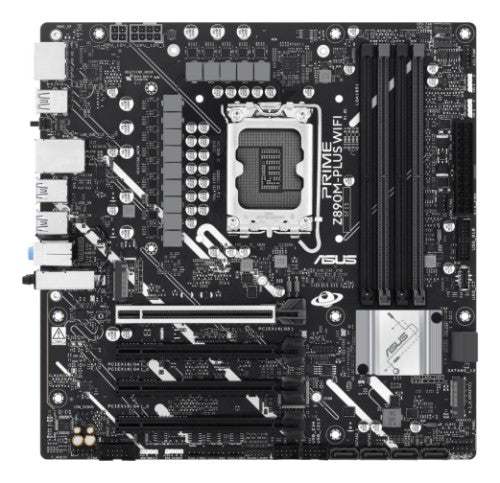

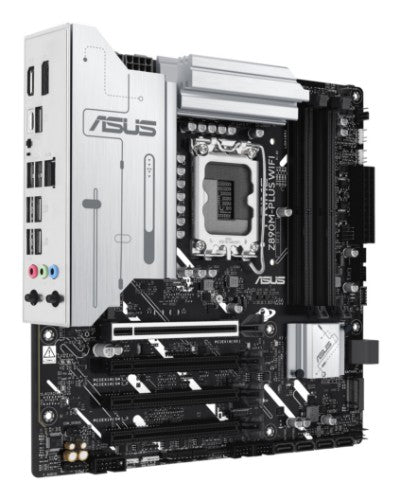

ASUS PRIME Z890M-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) micro ATX
Part number
PRIME Z890M-PLUS WIFI
$315.70 CAD
Intel Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5
Description
Z890M-PLUS WIFIASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| mSATA ports quantity | 0 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Performance | |
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| Supported processor sockets | LGA 1851 |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 6 |
| Windows operating systems supported | Windows 11 |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| WiFi-AP antenna jack | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Supported processor sockets | LGA 1851 |
| Windows operating systems supported | Windows 11 |
| Product colour | Aluminum, Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 10.8" (275 mm) |
| Package depth | 10.8" (275 mm) |
| Package height | 2.66" (67.5 mm) |
| Package weight | 3.62 lbs (1.64 kg) |
| Weight & dimensions | |
| Width | 9.61" (244 mm) |
| Depth | 9.61" (244 mm) |
| Package width | 10.8" (275 mm) |
| Package depth | 10.8" (275 mm) |
| Package height | 2.66" (67.5 mm) |
| Package weight | 3.62 lbs (1.64 kg) |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Other features | |
| mSATA ports quantity | 0 |
| Package width | 10.8" (275 mm) |
| Package depth | 10.8" (275 mm) |
| Package height | 2.66" (67.5 mm) |
| Package weight | 3.62 lbs (1.64 kg) |
