Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Xeon® W processor

Get optimized performance whether your professional application utilizes high core count or high frequency with the Intel® Xeon® W processor.^[2]

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

Professional Grade Graphics

Tackle 4K visual effects, advanced simulation, and machine learning projects

Ultra Fast Memory Configurations

Accelerate your workflow. Power through memory-intensive workloads with fast machine learning, visual effects, and simulation performance.

Engineered to stay cool and quiet.

Push your desktop workstation without disruptive noise. Smart fan control keeps the system whisper-quiet by tuning fan speeds in real-time using over 20 temperature sensors. Precisely placed vents and ducts streamline airflow and heat removal.

Ignite AI innovation

Accelerate AI development and inferencing with the Z6 AI workstation, with up to 3 NVIDIA RTX™ 6000 Ada Generation GPUs^[4] delivering up to 4,371 AI TOPS for advanced AI. Process proprietary data securely on a local workstation to gain insights faster.

Remarkable performance. Extraordinary expandability.

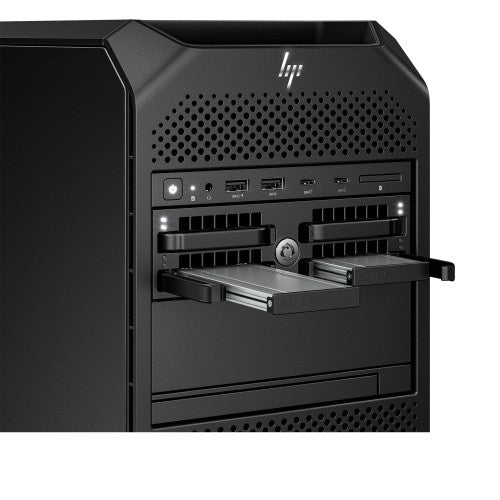

Tackle graphics-intensive workflows with up to 3 high-end GPUs^[1], an Intel® Xeon® W CPU with up to 36 cores^[2], and 1 TB DDR5 RAM3. Easily expand as work evolves with with tool-less access, 6 PCIe slots, 4 front accessible NVMe bays^[3].

Designed with the planet in mind.

At HP, we care about the impact our products have on our people, communities, and planet. That’s why the Z6 contains 40% recycled plastics,^[5] 10% recycled metal, 100% sustainably sourced outer box packaging, and is EPEAT® Gold Climate+ registered.^[6,7]

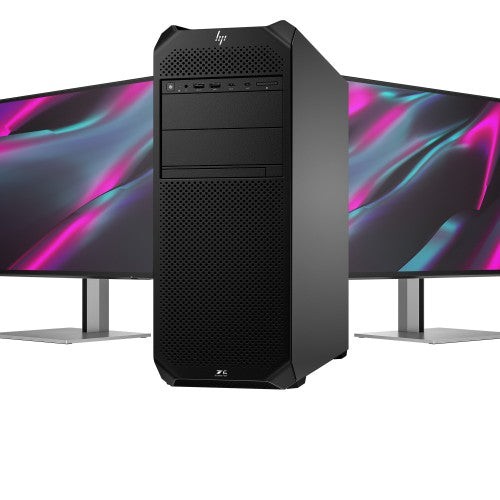

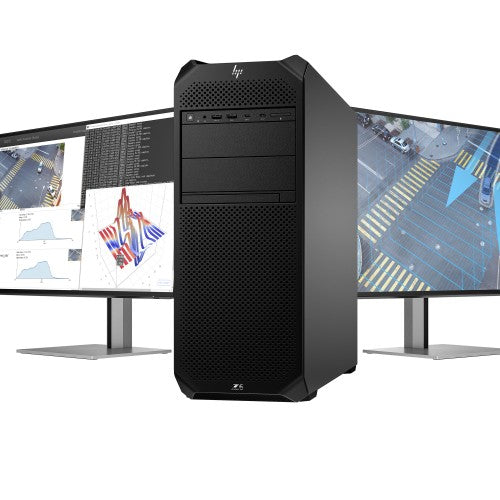

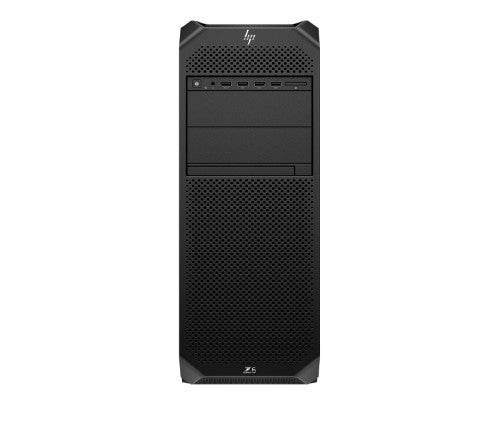

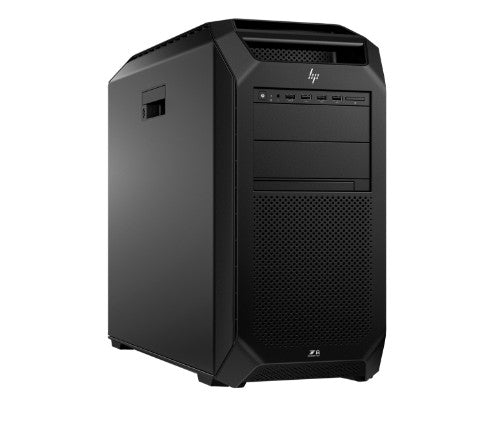

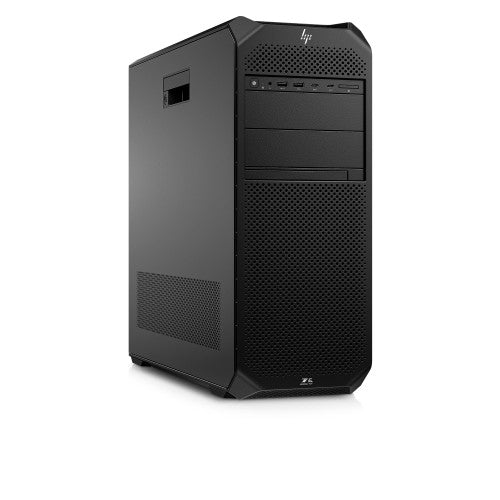

HP Z6 G5. Processor frequency: 3.2 GHz, Processor family: Intel Xeon W, Processor model: W5-3525. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 2 TB, Storage media: SSD. Discrete graphics card model: NVIDIA RTX 2000 Ada. Operating system installed: Windows 11 Pro. Power supply: 1125 W. Chassis type: Tower. Product type: Workstation. Weight: 28.2 lbs (12.8 kg). Product color: Black

Processor
Processor frequency	3.2 GHz
Processor family	Intel Xeon W
Processor manufacturer	Intel
Processor model	W5-3525
Processor cores	16
Processor cache type	Smart Cache
Processor boost frequency	4.8 GHz
Processor cache	45 MB
Processor threads	32
Performance cores	16
Efficient cores	0
Processor base power	290 W
Maximum turbo power	348 W
Memory
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	1 TB
Memory layout (slots x size)	2 x 32 GB
Memory slots	8x DIMM
Memory clock speed	4800 MHz
ECC	No
Storage
Total storage capacity	2 TB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	PCI Express
SSD memory type	TLC
SSD form factor	M.2
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA RTX 2000 Ada
Discrete graphics memory type	GDDR6
On-board graphics card model	Not available
Discrete graphics card memory	16 GB
On-board graphics card	No
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Combo headphone/mic port	Yes
Expansion slots
PCI Express x16 (Gen 3.x) slots	1
PCI Express x4 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	2
PCI Express x16 (Gen 5.x) slots	1
Design
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 3.5" bays	4
Cable lock slot	Yes
Cable lock slot type	Kensington
Introduction year	2024
Performance
Product type	Workstation
Motherboard chipset	Intel W790
Password protection	Yes
Password protection type	BIOS, Power on
Audio chip	Realtek ALC3205-CG
Market positioning	Performance
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Brand-specific features
HP Support Assistant	Yes
HP segment	Business
Power
Power supply	1125 W
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Weight & dimensions
Width	6.65" (168.9 mm)
Depth	18.3" (464.8 mm)
Height	17.5" (444.5 mm)
Weight	28.2 lbs (12.8 kg)
Package width	12.3" (313 mm)
Package depth	24" (610 mm)
Package height	23.3" (593 mm)
Packaging data
Package width	12.3" (313 mm)
Package depth	24" (610 mm)
Package height	23.3" (593 mm)
Packaging content
Display included	No
Mouse included	Yes
Keyboard included	Yes
Mouse connectivity	Wired
Keyboard connectivity	Wired
Display
Display included	No
Other features
Processor manufacturer	Intel
Trusted Platform Module (TPM)	Yes
On-board graphics card	No
Keyboard type	USB
