Flagship Wi-Fi 7 Performance

Based on the 802.11be standard, the HPE Aruba Networking 750 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multi gigabit traffic, and less interference.
With three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), it delivers up to 18.7 Gbps maximum tri-band aggregate data rate and is capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Featuring high availability with two 10 GbE ports for hitless failover for both data and power, allowing these dual ports to provide business continuity for mission-critical applications with flexibility to support speeds of 1, 2.5, 5, or 10 Gbps (or 100 Mbps).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the Access Point where it receives the strongest radio signal.
Patented Ultra Tri band filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.

Simplified Access with Enhanced Security

The HPE Aruba Networking 750 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
MACsec-capable 10 GbE port extends wired Ethernet protection to the access point.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
The APs simplify policy enforcement by using the Policy Enforcement Firewall (PEF) to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking Access Points include an installed Trusted Platform Module (TPM) for protected storage of credentials, keys, and boot code.

AP as an IoT Platform

The HPE Aruba Networking 750 Series Campus Access Point can serve as flexible IoT platforms that bolsters network security and provide coverage for a broad range of IoT devices without the need for network overlays.
It provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and BLE/Zigbee radios to operate at greater capacity without the impact of interference.
HPE Aruba Networking Central IoT Operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Energy Saving and Self-locating

The HPE Aruba Networking 750 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the Access Points that serve as reference points for client devices and other technologies using fine time measurement.
It offers precision locationing with the support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receivers for high-accuracy indoor location measurements.
Built-in barometric sensor for altitude locationing within multi-story buildings that provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 750 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization sustainability initiatives.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention. Intelligent Power Monitoring provides energy consumption insights as APs continuously monitor and report hardware energy usage.

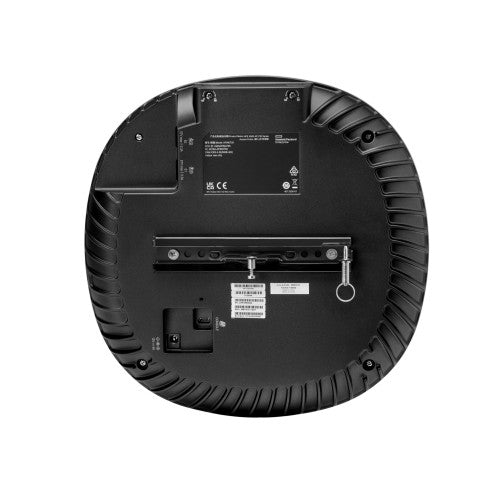

HPE Aruba Networking AP-755 (US) Tri Radio 4x4 Wi-Fi 7 Internal Antennas Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz. Power over Ethernet (PoE). Product color: White. Power consumption (max): 51 W

Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto MDI/MDI-X	Yes
Reset button	Yes
Networking standards	IEEE 802.11be
Certification	None
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.11be
Bluetooth	Yes
Bluetooth version	5.4
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	1400 Mbit/s
Maximum data transfer rate (5 GHz)	5800 Mbit/s
Maximum data transfer rate (6 GHz)	11500 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
BeamForming	Yes
Ports & interfaces
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Power consumption (max)	51 W
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Design
Reset button	Yes
Placement	Wall
Product colour	White
Certification	None
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	None
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	10.2" (260 mm)
Depth	10.2" (260 mm)
Height	2.24" (57 mm)
Weight	3.37 lbs (1.53 kg)
Package width	12.6" (320 mm)
Package depth	12.6" (320 mm)
Package height	3.27" (83 mm)
Package weight	4.7 lbs (2.13 kg)
Packaging data
Package width	12.6" (320 mm)
Package depth	12.6" (320 mm)
Package height	3.27" (83 mm)
Package weight	4.7 lbs (2.13 kg)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Quantity per pack	1 pc(s)
