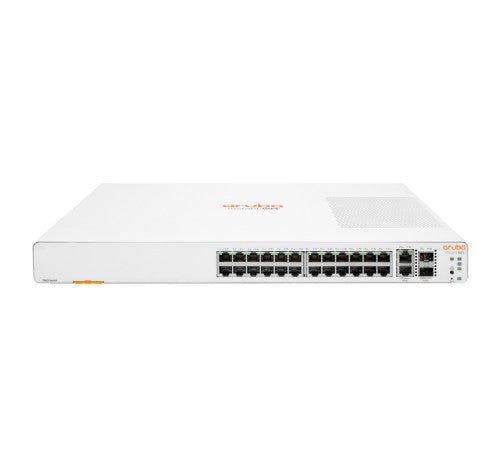

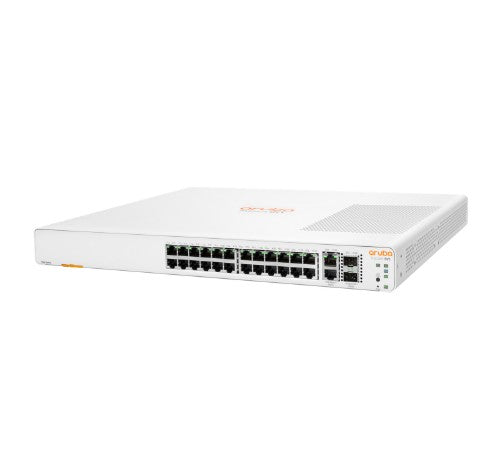

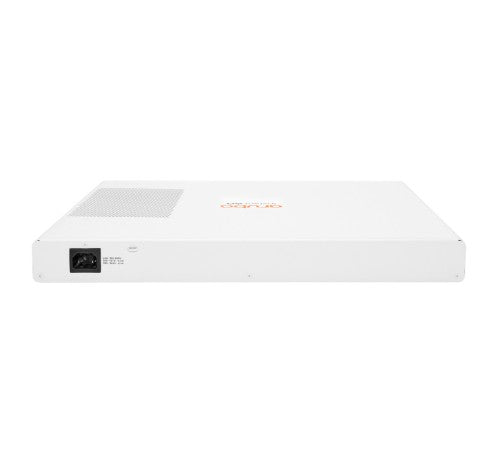

HPE Aruba Networking Aruba Instant On 1960 24G 2XGT 2SFP+ Managed L2+ Gigabit Ethernet (10/100/1000) 1U White
Part number
JL806A#ABA
$807.12 CAD
HPE Aruba Networking Aruba Instant On 1960 24G 2XGT 2SFP+, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Description
HPE Aruba Networking Aruba Instant On 1960 24G 2XGT 2SFP+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| IPv6 FIB entries | 32 |
| IPv4 FIB entries | 32 |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 32 |
| IPv4 FIB entries | 32 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Performance | |
| Stackable | Yes |
| Physical stacking (units) | 4 |
| Processor frequency | 800 MHz |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| 10G Ethernet (copper) ports quantity | 2 |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
| Latency (10-100 Mbps) | 4.4 µs |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| Jumbo frames support | Yes |
| Security | |
| Authentication | Port-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| IPv6 FIB entries | 32 |
| IPv4 FIB entries | 32 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | White |
| Form factor | 1U |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 13.8" (350.5 mm) |
| Height | 1.73" (44 mm) |
| Weight | 8.6 lbs (3.9 kg) |
