High Performance Wi-Fi 7

The HPE Aruba Networking 730 Series Campus Access Points are based on the IEEE 802.11be standard and designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference.
This access point series delivers up to 9.3 Gbps maximum tri-band aggregate data rate by using three 2x2 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), and achieve capability of up to 14.4 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes.
Patented Ultra Tri-band filtering enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without creating coverage gaps or islands.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives the best radio signal.
High availability with two HPE Smart Rate Ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps (or 100 Mbps), these dual ports provide business continuity for mission-critical applications.

Simplified Access with Enhanced Security

The HPE Aruba Networking 730 Series Campus Access Points offer enhanced security with Dynamic Segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
MACsec-capable 5 GbE port extends wired Ethernet protection to the access point.
This access point series offers stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
The access points simplify policy enforcement using the HPE Aruba Networking Policy Enforcement Firewall (PEF) to encapsulate traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking 730 Series Campus Access Points include an installed TPM for secure storage of credentials, keys, and boot code.

AP as an IoT platform

The HPE Aruba Networking 730 Series Campus Access Points can serve as flexible IoT platforms that bolster network security and provide coverage for a broad range of IoT devices, without the need for network overlays.
This access point series provides two built-in Bluetooth 5.4 and 802.15.4 radios for Zigbee support to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors. Two USB port extensions provide connectivity to a range of IoT devices.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi and Bluetooth Low Energy (BLE)/Zigbee radios to operate at maximum capacity without the impact of interference.
HPE Aruba Networking Central IoT Operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring and insights to BLE, Zigbee, and other non-IP IoT devices to help non-Wi-Fi device onboarding and data collection.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that helps verify devices are receiving proper policy enforcement and continuously monitors for rogue devices.

Energy Saving and Self-locating Access Points

The HPE Aruba Networking 730 Series Campus Access Points help organizations reduce energy consumption and deliver precision indoor location services with the Access Points that serve as reference points for client devices and other technologies using fine time measurement.
This access point series offers precision locationing with support of FTM 802.11az for sub-1 meter accuracy and built-in GNSS receiver for high accuracy indoor location measurements.
Built-in barometric sensor for altitude locationing within multi-story buildings provides floor-level mappings.
AI-powered dynamic power save mode enables the HPE Aruba Networking 730 Series Campus Access Points to automatically wake up at a schedule when connectivity demand arises, reducing power demands and lowering the energy footprint to align with the organization’s sustainability initiatives.
The target wake time (TWT) establishes a schedule for clients to communicate with an Access Point to help improve client power savings and reduce airtime contention. Intelligent Power Monitoring provides energy consumption insights as APs continuously monitor and report hardware energy usage.

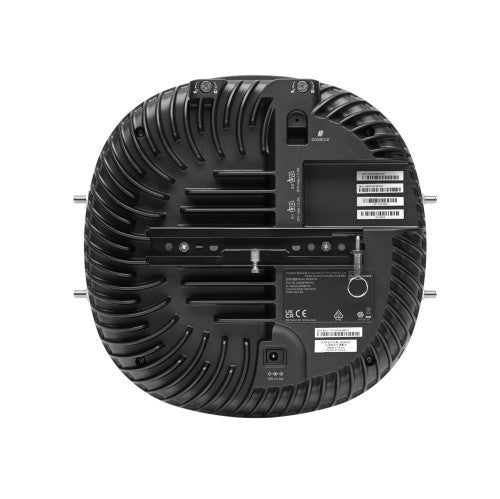

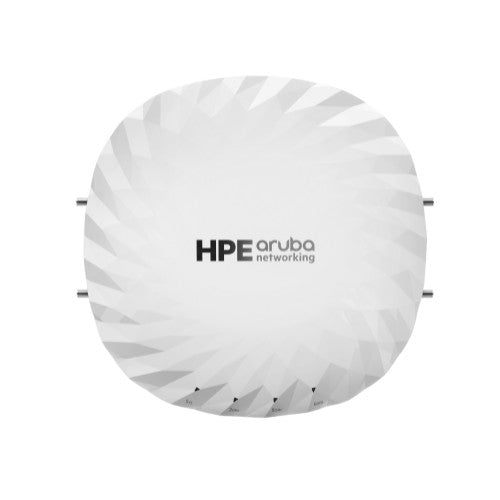

HPE Aruba Networking AP-734 (US) Tri Radio 2x2 Wi-Fi 7 External Antennas Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 36 W

Performance
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Networking standards	IEEE 802.11be
Certification	None
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	Yes
Ethernet LAN data rates	10,100,1000,2500,5000 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11be
Bluetooth	Yes
Bluetooth version	5.4
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	2900 Mbit/s
Maximum data transfer rate (6 GHz)	5800 Mbit/s
Bluetooth Low Energy (BLE)	Yes
Trusted Platform Module (TPM)	Yes
BeamForming	Yes
Ports & interfaces
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes
Power
Power consumption (max)	36 W
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Pole, Wall
Product colour	White
Cable lock slot	Yes
Certification	None
Cable lock slot type	Kensington
Antenna
Antenna type	External
Number of connectors	4
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	None
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	9.45" (240 mm)
Depth	9.45" (240 mm)
Height	2.2" (56 mm)
Weight	3.17 lbs (1.44 kg)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Logistics data
Quantity per pack	1 pc(s)
