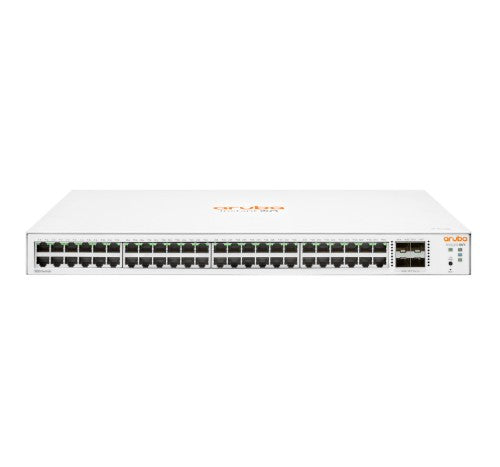

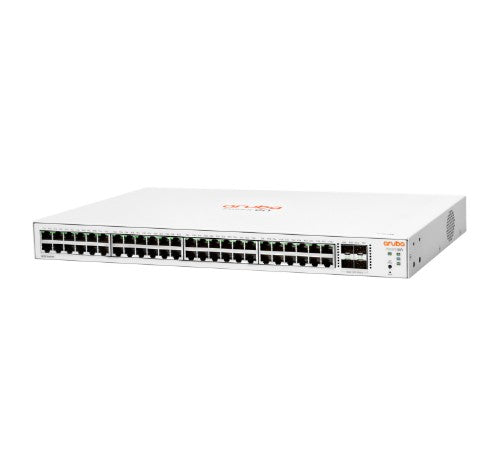

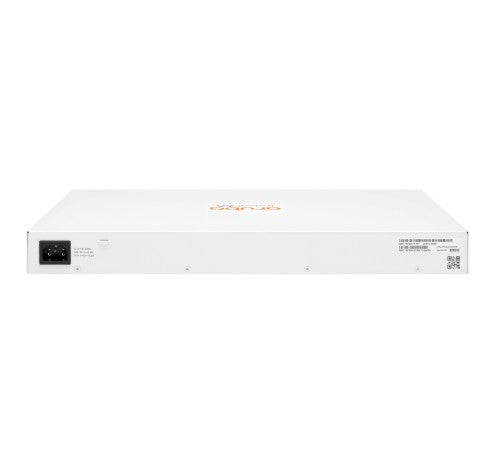

HPE Aruba Networking Aruba Instant On 1830 48G 4SFP Managed L2 Gigabit Ethernet (10/100/1000) 1U
Part number
JL814A#ABA
$607.31 CAD
HPE Aruba Networking Aruba Instant On 1830 48G 4SFP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Description
HPE Aruba Networking Aruba Instant On 1830 48G 4SFP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Throughput | 77.37 Mpps |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 2.8 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 40.2 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 9.96" (253 mm) |
| Depth | 17.4" (443 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 7.8 lbs (3.54 kg) |
