High Performance Outdoor Wi-Fi 6E

HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MU‑MIMO, and target wake time (TWT) to extend the battery life of devices.
Fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
Self-locating with embedded GPS receiver and will operate as standard power (SP) devices requiring an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology that eliminates sticky client issues by steering a client to the AP where it receives the best radio signal.
Ii offers convenient wired connectivity with fast 2.5 GbE uplink port and 1 GbE port.

Simplified Access with Enhanced Security

The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to eliminate the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
It offers network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
Simplified policy enforcement with the Policy Enforcement Firewall (PEF) that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our access points include an installed TPM for secure storage of credentials and keys, and boot code.

Ruggedized and Ready for IoT

The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.
Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
The intelligent power monitoring (IPM) provides insights into energy consumption, our access points continuously monitor and report hardware energy usage. Unlike the other vendors access points, our access points can also be configured to enable or disable capabilities based on available PoE power.

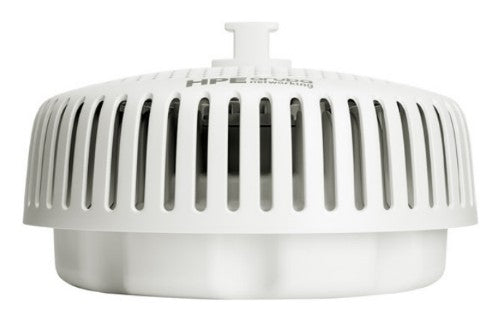

HPE Aruba Networking AP-677 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Directional Outdoor AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 3900 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 45.5 W

Performance
Maximum data transfer rate	3900 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Networking standards	IEEE 802.11ax
Certification	None
MIMO type	Multi User MIMO
MIMO	Yes
Features
6 GHz	Yes
Maximum data transfer rate	3900 Mbit/s
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ax
Bluetooth	Yes
Bluetooth version	5.0
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	287 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Maximum data transfer rate (6 GHz)	2400 Mbit/s
BeamForming	Yes
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	45.5 W
Power over Ethernet (PoE)	Yes
Design
Reset button	Yes
Placement	Pole, Wall
International Protection (IP) code	IP66, IP67
Product colour	White
Certification	None
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Technical details
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	None
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	11.4" (290 mm)
Depth	11.3" (288 mm)
Height	6.73" (171 mm)
Weight	7.94 lbs (3.6 kg)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 100%
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 100%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Logistics data
Quantity per pack	1 pc(s)
