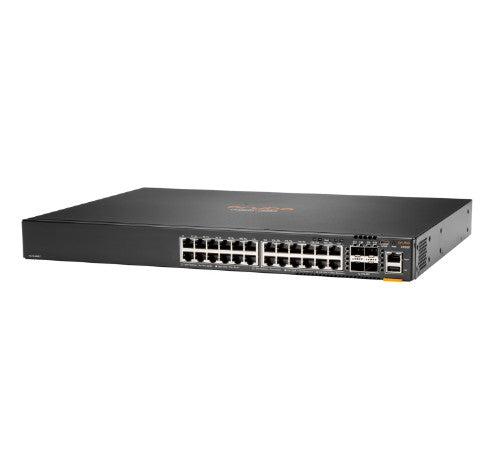

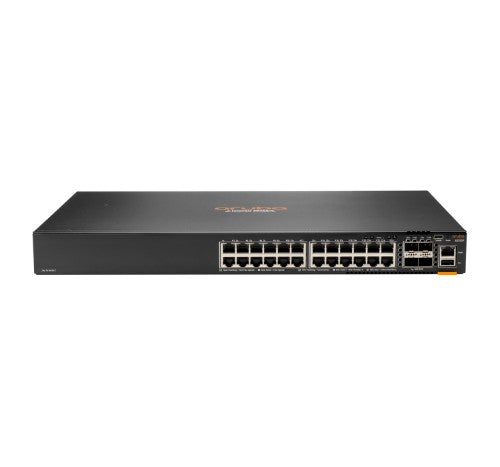

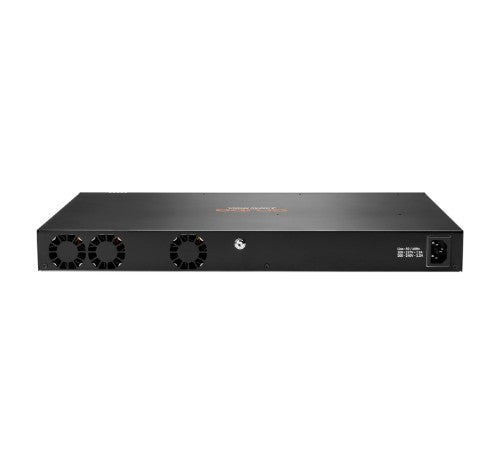

HPE Aruba Networking CX 6200F 24G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U
Part number
JL724B#ABA
$5,356.19 CAD
HPE Aruba Networking CX 6200F 24G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Description
HPE Aruba Networking CX 6200F 24G 4SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE.... Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 10 km |
| Data transmission | |
| MAC address table | 32768 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet buffer memory | 8 MB |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 5120 |
| Access Control List (ACL) egress | 22048 |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Stackable | Yes |
| Packet buffer memory | 8 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 59 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 12.9" (327 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 11.2 lbs (5.1 kg) |
