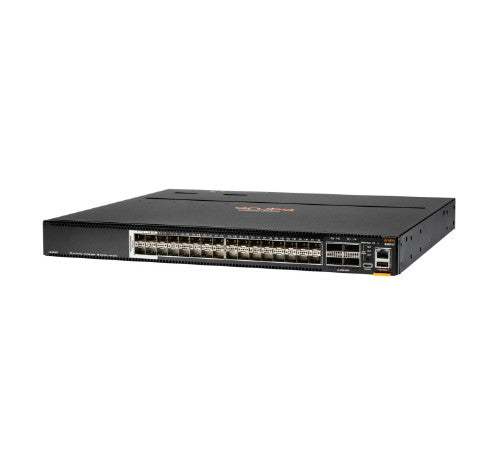

HPE Aruba Networking CX 8360‑32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Managed L3 1U
38,458.96 CAD
Skip to product information
Out of stock
HPE Aruba Networking CX 8360‑32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC Managed L3 1U
Part number
JL700C#ABA
38,458.96 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
8.19 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
HPE Aruba Networking CX 8360‑32Y4C v2 32p 25G SFP/+/28 4 Sec 4p 100G QSFP+/28 FB 3 Fans 2 AC. Switch type: Managed, Switch layer: L3. Console port: RJ-45/USB Type-C. MAC address table: 212992 entries, Switching capacity: 2400 Gbit/s. Networking standards: IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s,.... Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 32 |
| QSFP+ module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+, SFP28 |
| Network | |
| Networking standards | IEEE 802.1AE, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
| 10G support | Yes |
| IGMP snooping | Yes |
| IGMP entries | 7000 |
| Data transmission | |
| MAC address table | 212992 entries |
| Switching capacity | 2400 Gbit/s |
| Throughput | 2678 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
| Number of VLANs | 4094 |
| Security | |
| SSH/SSL support | Yes |
| Security algorithms | SNMPv2, SNMPv3 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| IGMP entries | 7000 |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | BGP4, MPLS, OSPF, OSPFv3, RIP-2, RIPng |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Ventilation system | Front-to-back airflow |
| Airflow direction | Front-to-back airflow |
| Number of fans | 3 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | RAM / Flash |
| Internal memory | 16384 MB |
| Flash memory | 32768 MB |
| Built-in processor | Yes |
| Packet buffer memory | 32 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 425 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 1450 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442.5 mm) |
| Depth | 16" (406.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 18.1 lbs (8.19 kg) |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Optical fiber | |
| Fiber optic connector | QSFP+, QSFP28, SFP, SFP+, SFP28 |
| Other features | |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
