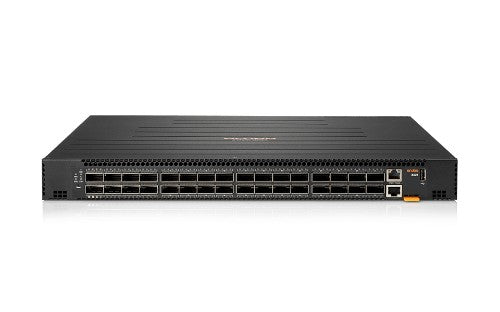

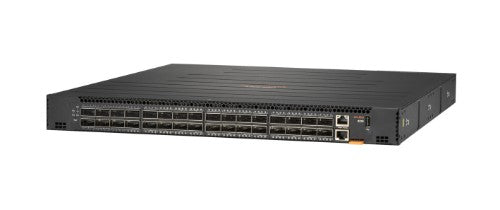

HPE Aruba Networking Aruba 8325-32C Managed L3 1U Black
52,484.01 CAD
Skip to product information
Out of stock
HPE Aruba Networking Aruba 8325-32C Managed L3 1U Black
Part number
JL626A#ABA
52,484.01 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
9.5 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
HPE Aruba Networking Aruba 8325-32C. Switch type: Managed, Switch layer: L3. MAC address table: 98304 entries, Switching capacity: 6400 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Network | |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Data transmission | |
| Multicast MAC address table | 98304 entries |
| MAC address table | 98304 entries |
| Supported data transfer rates | 40/100 Gbps |
| Switching capacity | 6400 Gbit/s |
| Throughput | 1905 Mpps |
| Maximum data transfer rate | 100 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
| Performance | |
| Stackable | Yes |
| Packet buffer memory | 32 MB |
| Processor frequency | 2200 MHz |
| Internal memory | 16384 MB |
| Flash memory | 8192 MB |
| Built-in processor | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed QSFP+ modules quantity | 32 |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast MAC address table | 98304 entries |
| Multicast support | Yes |
| MLD entries | 4094 |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Form factor | 1U |
| Number of fans | 6 fan(s) |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 550 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 17.3" (438.4 mm) |
| Depth | 20.3" (515.1 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 20.9 lbs (9.5 kg) |
