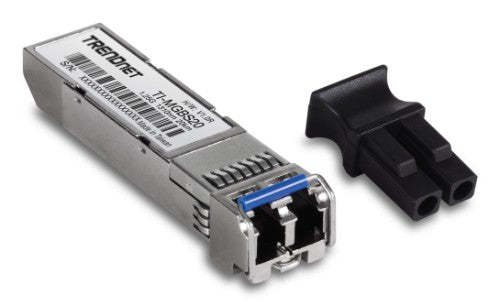

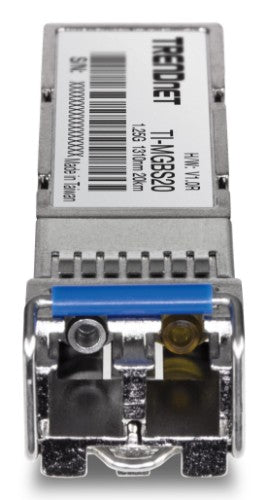

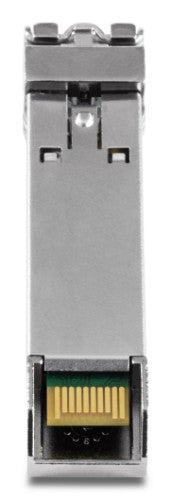

Trendnet TI-MGBS20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
61.22 CAD
Skip to product information
Out of stock
Trendnet TI-MGBS20 network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Part number
TI-MGBS20
61.22 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.019 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- Extreme operating temperature range of -40°– 85 ° C (-40° – 185 ° F)
- Supports data rates of up to 1.25Gbps
- Transmission distance of up to 20km (12.42 mi.)
- Low Electromagnectic Interference (EMI) design
- Supports 1310nm single -mode network transmissions
- Duplex LC optical interface
- Low power consumption
TRENDnet’s 1000Base-LX Industrial SFP Single -Mode LC Module, model TI-MGBS20, is designed to operate within an extreme temperature range and is well suited for industrial environments. This industrial SFP module works with standard SFP slots found on industrial switches and fiber media converters. The TI-MGBS20 industrial SFP is compatible with duplex LC fiber connector types and supports gigabit single- mode fiber connections at distances of up to 20 km (12.42 mi.).
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Maximum transfer distance | 787401.6" (20000 m) |
| Wavelength | 1310 nm |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Features | |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Certification | CE FCC |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | CE FCC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Weight & dimensions | |
| Width | 2.28" (58 mm) |
| Depth | 0.528" (13.4 mm) |
| Height | 0.496" (12.6 mm) |
| Weight | 0.67 oz (19 g) |
