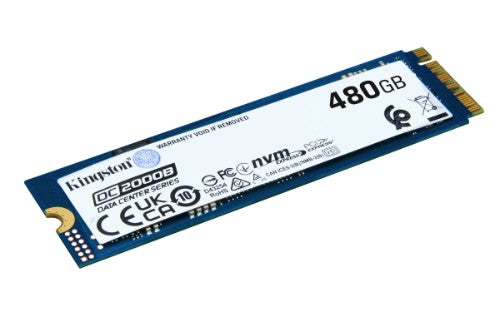

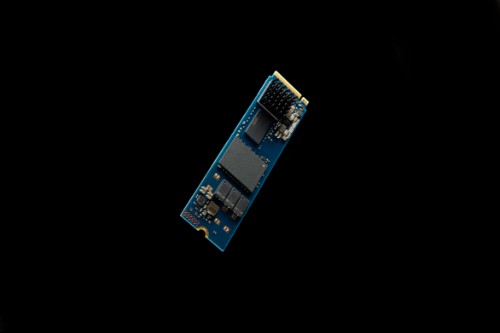

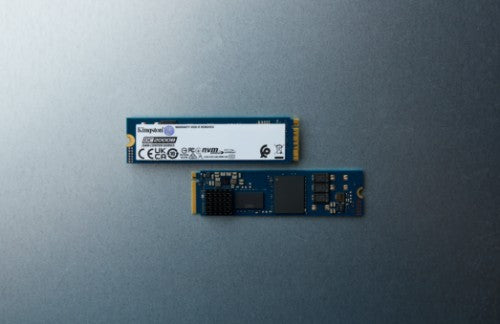

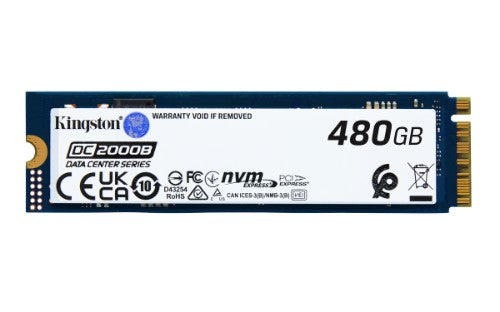

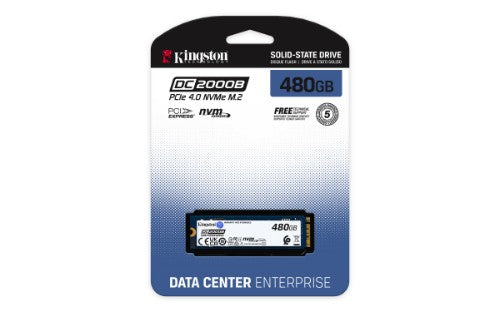

Kingston Technology DC2000B 480 GB M.2 PCI Express 4.0 NVMe 3D TLC
196.58 CAD
Skip to product information
Out of stock
Kingston Technology DC2000B 480 GB M.2 PCI Express 4.0 NVMe 3D TLC
Part number
SEDC2000BM8/480G
196.58 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.034 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- PCIe 4.0 NVMe Gen 4x4 performance
- Hardware-based power loss protection
- Latency and IOPS consistency
- Designed for data center environments
Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

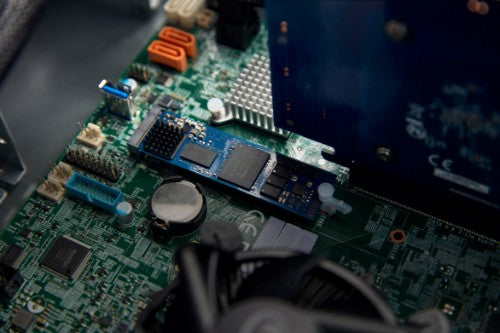

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.
Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
| Features | |
|---|---|
| Interface | PCI Express 4.0 |
| Component for | Server |
| SSD capacity | 480 GB |
| Read speed | 7000 MB/s |
| Write speed | 800 MB/s |
| Memory type | 3D TLC |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 530000 IOPS |
| Random write (4KB) | 32000 IOPS |
| Read latency | 70 µs |
| Write latency | 29 µs |
| S.M.A.R.T. support | Yes |
| NVMe | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 350 |
| SSD form factor | M.2 |
| H/W PLP function | Yes |
| Use conditions | Server/Enterprise |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Drive writes per day (DWPD) | 0.4 |
| Power | |
| Power consumption (write) | 5.77 W |
| Power consumption (read) | 3.29 W |
| Average power consumption (write) | 5.6 W |
| Average power consumption (read) | 3.22 W |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server |
| SSD capacity | 480 GB |
| Read speed | 7000 MB/s |
| Write speed | 800 MB/s |
| Memory type | 3D TLC |
| PCI Express interface data lanes | x4 |
| Random read (4KB) | 530000 IOPS |
| Random write (4KB) | 32000 IOPS |
| Read latency | 70 µs |
| Write latency | 29 µs |
| S.M.A.R.T. support | Yes |
| NVMe | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 350 |
| Design | |
| Component for | Server |
| Cooling type | Heatsink |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 0.866" (22 mm) |
| Depth | 3.15" (80 mm) |
| Height | 0.35" (8.9 mm) |
| Weight | 0.353 oz (10 g) |
| Package width | 5.1" (129.5 mm) |
| Package depth | 0.56" (14.2 mm) |
| Package height | 7.25" (184.2 mm) |
| Package weight | 1.19 oz (33.8 g) |
| Packaging data | |
| Package width | 5.1" (129.5 mm) |
| Package depth | 0.56" (14.2 mm) |
| Package height | 7.25" (184.2 mm) |
| Package weight | 1.19 oz (33.8 g) |
| Master (outer) case width | 5.35" (135.9 mm) |
| Master (outer) case length | 8" (203.2 mm) |
| Master (outer) case height | 2.75" (69.8 mm) |
| Master (outer) case gross weight | 9.9 oz (280.6 g) |
| Products per master (outer) case | 6 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating vibration | 20 G |
| Technical details | |
| Interface | PCI Express 4.0 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating vibration | 20 G |
| SSD form factor | M.2 |
| Other features | |
| Cooling type | Heatsink |
| Country of origin | China, Taiwan |
| Logistics data | |
| Master (outer) case width | 5.35" (135.9 mm) |
| Master (outer) case length | 8" (203.2 mm) |
| Master (outer) case height | 2.75" (69.8 mm) |
| Master (outer) case gross weight | 9.9 oz (280.6 g) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China, Taiwan |
