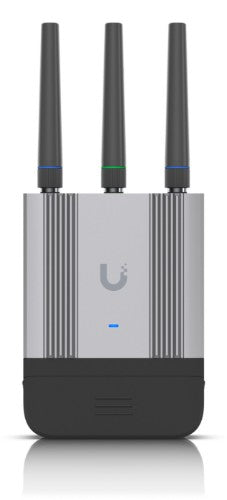

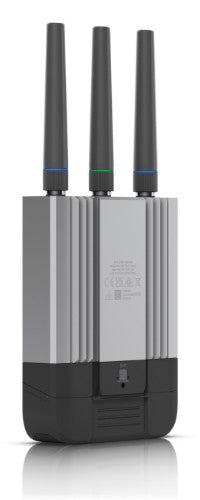

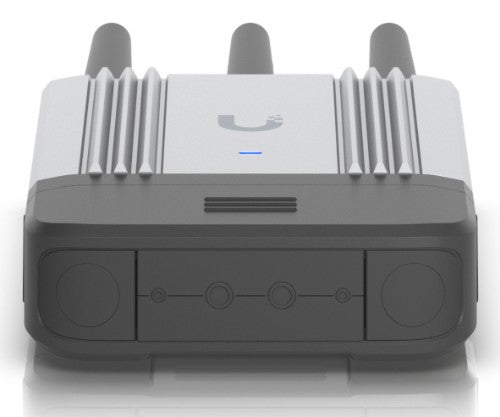

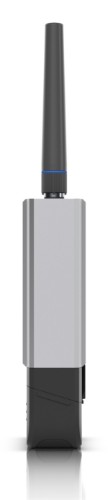

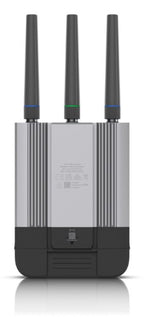

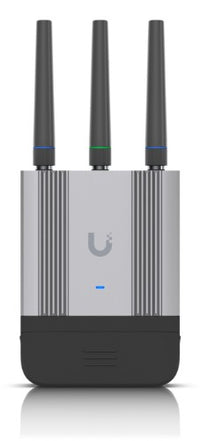

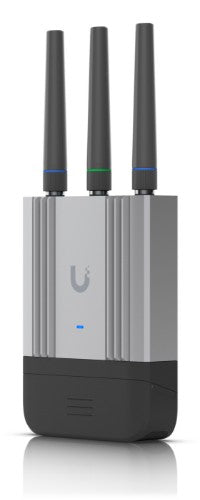

Ubiquiti UMR-Industrial Cellular network router
Part number
UMR-INDUSTRIAL
$269.91 CAD
Mobile Router Industrial, LTE Cat 4 WiFi, nano-SIM (4FF), 2x GbE RJ45, Weatherproof. polycarbonate, aluminum
Key Features
- Site-to-site VPN and VPN client routing
- (2) GbE ports with (1) PoE output
- Powered using PoE, USB Type-C, or 4-pin DC power socket
- Outdoor GPS location tracking
- Flexible wall, pole, and DIN rail mounting
- Weatherproof (outdoor exposed) with the included cover
- Optional Mobility Cloud subscription
Description
Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.Specifications
| Technical details | |
|---|---|
| Mounting | Wall/Pole/DIN-rail mounting |
| Device type | Cellular network router |
| Data network | 3G, 4G |
| Compliance certificates | CE |
| Ethernet LAN features | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Cellular interface | |
| 4G standard | LTE |
| Design | |
| Mounting | Wall/Pole/DIN-rail mounting |
| Housing material | Aluminum, Polycarbonate (PC) |
| Device type | Cellular network router |
| Product colour | Black, Gray |
| Suitable for outdoor use | Yes |
| Suitable for indoor use | Yes |
| Reset button | Yes |
| LED indicators | Status |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,150,300 Mbit/s |
| Wi-Fi frequency | 2.4 GHz |
| Mobile network | |
| Data network | 3G, 4G |
| 4G standard | LTE |
| SIM card type | NanoSIM |
| Data transfer rate (LTE) (upload) | 50 Mbit/s |
| Data transfer rate (LTE) (download) | 150 Mbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB port type | USB Type-C |
| GPS Performance | |
| GPS (satellite) | Yes |
| Certificates | |
| Compliance certificates | CE |
| Packaging content | |
| User guide | Yes |
| Material | |
| Housing material | Aluminum, Polycarbonate (PC) |
| Performance | |

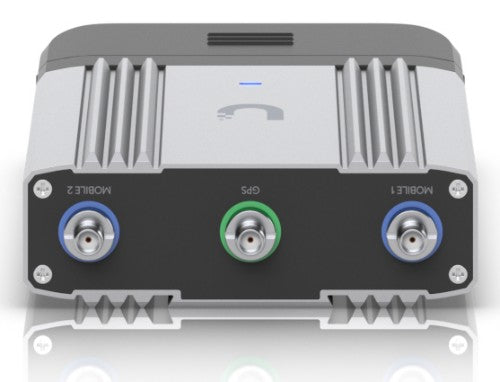

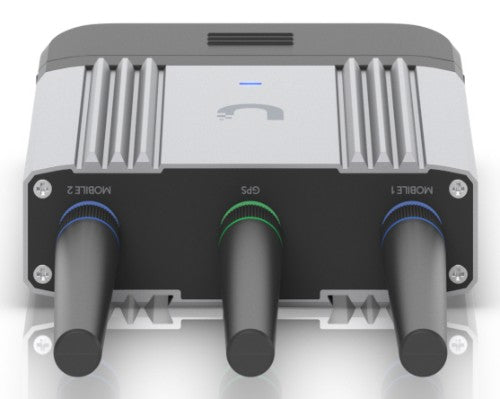

| Antenna connector type | SMA/RP-SMA |
| Antenna type | External |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
| GPS (satellite) | Yes |
| Built-in processor | Yes |
| Antenna | |
| Antenna connector type | SMA/RP-SMA |
| Antenna type | External |
| Antennas quantity | 3 |
| Detachable antenna(s) | Yes |
| Power | |
| Power consumption (typical) | 12.5 W |
| Power source type | DC, PoE, USB |
| Output voltage | 48 - 54 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 13.9 oz (395 g) |
| Width | 3.7" (94 mm) |
| Depth | 1.26" (32 mm) |
| Height | 8.54" (217 mm) |
| Packaging data | |
| User guide | Yes |
