Supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the Access Point where it receives the best radio signal.
Weatherproof and temperature hardened, this series can handle temperatures ranging from -40ΛC to +65ΛC, including full sun deployments.
Class 1 Division 2 and ATEX Zone 2 certified for the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target Wake Time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
Simplifies policy enforcement by using the Policy Enforcement Firewall (PEF) to encapsulate all traffic from the Access Point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.

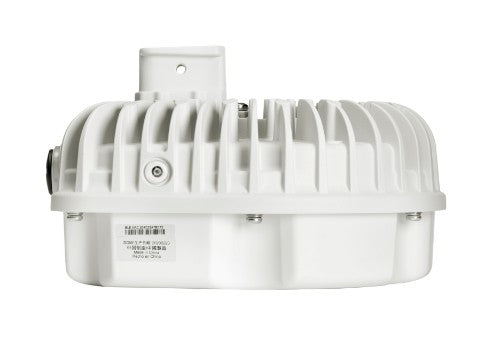

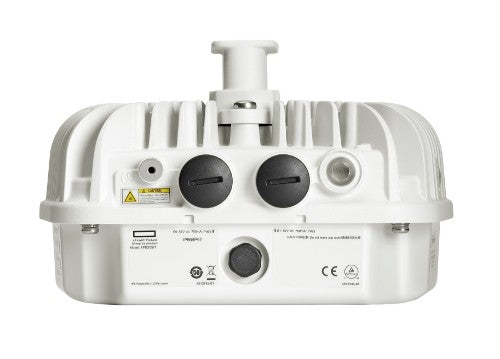

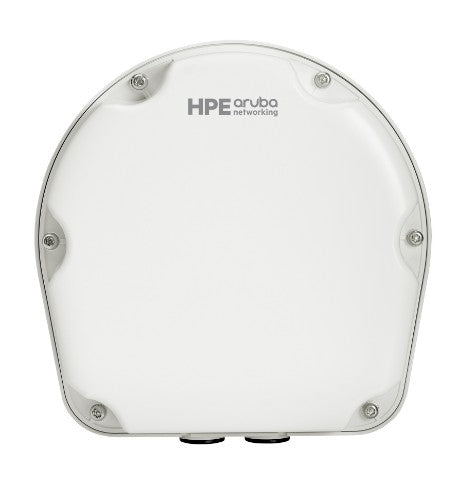

HPE Aruba Networking AP-577EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional HazLoc AP
Part number
R4W38A
$3,612.97 CAD
HPE Aruba Networking AP-577EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional HazLoc AP, 2.4 GHz, 5 GHz, 4800 Mbit/s, WPA2, WPA3, 1000,2500 Mbit/s
Reasons To Buy
Ruggedized Outdoor Wi-Fi 6
HPE Aruba Networking 570EX Series Hazardous Location Access Points provide Class 1 Division 2 and ATEX Zone 2 certification to operate in hazardous locations and provide up to 2.69 Gbps combined aggregate data rate. It provides high-performance wireless connectivity for outdoor hazardous locations.Supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA), bi-directional Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the Access Point where it receives the best radio signal.
Deploy In Hazardous Locations
HPE Aruba Networking 570EX Series Hazardous Location Access Points are purpose-built to survive in some of the harshest outdoor hazardous locations and can withstand extreme temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants.Weatherproof and temperature hardened, this series can handle temperatures ranging from -40ΛC to +65ΛC, including full sun deployments.
Class 1 Division 2 and ATEX Zone 2 certified for the most extreme indoor and outdoor areas with ignitable concentrations of flammable gases, vapors, or liquids.
IoT Ready
HPE Aruba Networking 570EX Series Hazardous Location Access Points can serve as IoT platforms that bolster network security and provide coverage for a range of IoT devices without the need for network overlays.Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target Wake Time (TWT) improves battery life of IoT devices.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.
Enhanced Security
HPE Aruba Networking 570EX Series Hazardous Location Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.Offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
Simplifies policy enforcement by using the Policy Enforcement Firewall (PEF) to encapsulate all traffic from the Access Point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, HPE Aruba Networking access points include an installed Trusted Platform Module (TPM) for protected storage of credentials and keys, and boot code.
Description
HPE Aruba Networking AP-577EX (RW) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional HazLoc AP. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 32 WSpecifications
| Performance | |
|---|---|
| Maximum data transfer rate | 4800 Mbit/s |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11ax |
| Certification | None |
| MIMO | Yes |
| Features | |
| 6 GHz | No |
| Maximum data transfer rate | 4800 Mbit/s |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| MIMO | Yes |
| Trusted Platform Module (TPM) | Yes |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Ports & interfaces | |
| USB connector type | USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 32 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling, Pole, Wall |
| International Protection (IP) code | IP66, IP67 |
| Product colour | White |
| Certification | None |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6.8 dBi |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Software | |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Weight & dimensions | |
| Width | 9.06" (230 mm) |
| Depth | 8.66" (220 mm) |
| Height | 5.12" (130 mm) |
| Weight | 4.63 lbs (2.1 kg) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | -40 - 65 Β°C |
| Storage temperature (T-T) | -40 - 70 Β°C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
