TP-Link Omada Pro S5500-8XF network switch Managed L2/L2+
1,257.35 CAD
Skip to product information
Out of stock
TP-Link Omada Pro S5500-8XF network switch Managed L2/L2+
Part number
S5500-8XF
1,257.35 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.839 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 8× Full 10G SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 160 Gbps switching capacity
- Integrated into Omada Pro: Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and the Omada App
- Management Flexibility: Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP
- Ethernet Ring Protection Switching (ERPS): Blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping
What This Product Does
Easily build a Whole 10G network with Omada Pro S5500-8XF—a fully enterprise-level managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks. An abundance of L2+ and L3 features including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for dormitories, apartments, enterprises, campuses, and ISPs. Our high-quality security features defend against a range of network threats.
Besides, integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Abundant L2 and L3 features
S5500-8XF supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.
ISP Features
DDM, sFlow, ERPS, L2PT, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.* Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in MDU, hospitality, education, offices, and more.
Apart from being centrally managed via Omada Pro controllers, S5500-8XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Easily build a Whole 10G network with Omada Pro S5500-8XF—a fully enterprise-level managed switch with full 8-port 10G fiber ports and 160 Gbps switching capacity. Ideal for small, medium, and large business networks, it meets and surpasses the need for high-speed, reliable, and safe enterprise networks. An abundance of L2+ and L3 features including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for dormitories, apartments, enterprises, campuses, and ISPs. Our high-quality security features defend against a range of network threats.
Besides, integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Abundant L2 and L3 features
S5500-8XF supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.
ISP Features
DDM, sFlow, ERPS, L2PT, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.* Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in MDU, hospitality, education, offices, and more.
Apart from being centrally managed via Omada Pro controllers, S5500-8XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
| Management features | |
|---|---|
| Switch layer | L2/L2+ |
| Switch type | Managed |
| Traffic classification | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z |
| Active link detection | Yes |
| Number of VLANs | 4000 |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 32000 entries |
| Switching capacity | 160 Gbit/s |
| Jumbo frames | 9000 |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Packet buffer memory | 16 MB |
| Static route | Yes |
| Forwarding rate | 119.04 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| LED indicators | Yes |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Fanless | Yes |
| Packet buffer memory | 16 MB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 16.46 W |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 52.75 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 7.09" (180 mm) |
| Height | 1.73" (44 mm) |

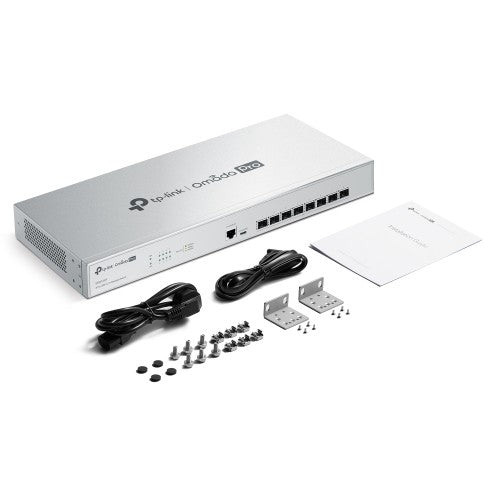

| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
