Extend a 10/100Mbps network up to 0.5mi (800m) using RJ45 or RJ11 cabling

Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity.

Extend Network Connectivity

The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires.

Thoughtful Design

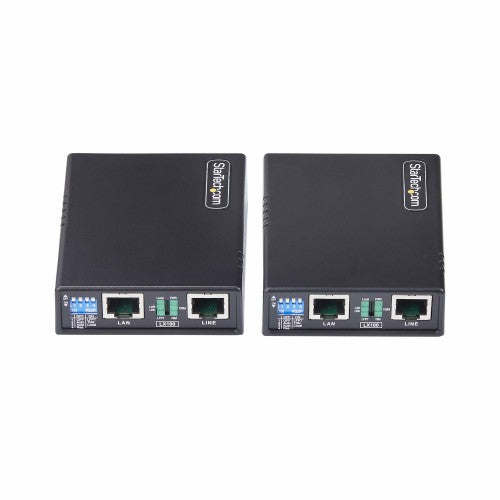

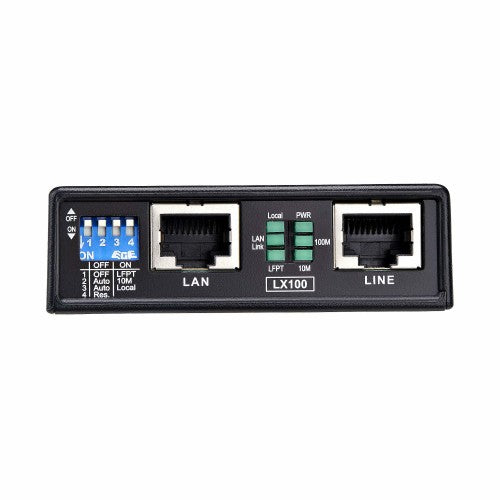

The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow to change the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup.

Versatile

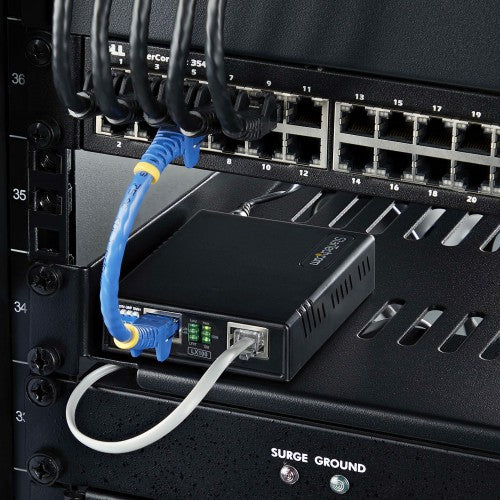

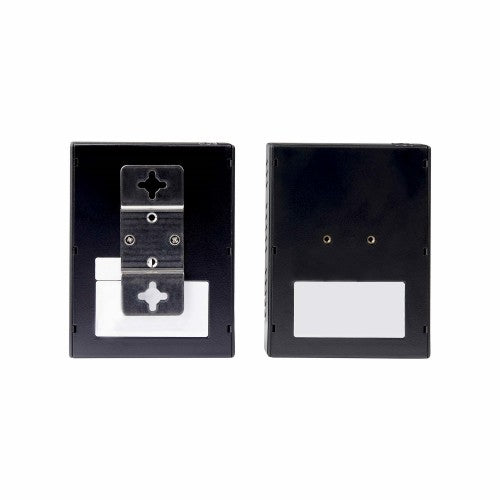

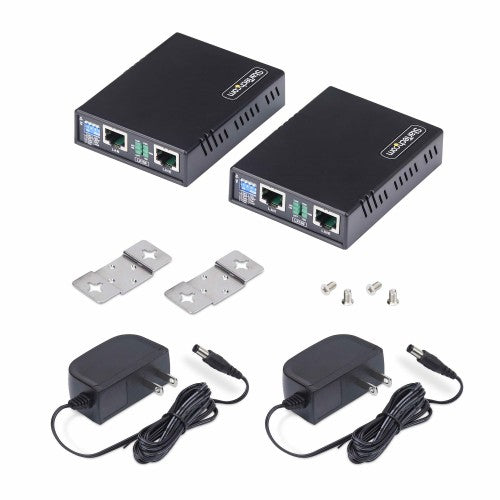

The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units.

Being a transparent network device allows the network extender to support the following Ethernet protocols, such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot.

The StarTech.com Advantage

Performance
Type	Network transmitter & receiver
Maximum transfer distance	31496.1" (800 m)
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
Data transfer rate	100 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
Jumbo frames support	Yes
Auto MDIX IEEE	No
Technical details
Type	Network transmitter & receiver
Maximum transfer distance	31496.1" (800 m)
Plug and Play	Yes
Ethernet LAN data rates	10,100 Mbit/s
Data transfer rate	100 Mbit/s
Cable types supported	Cat5, Cat5e, Cat6, Cat6a
LED indicators	Yes
Jumbo frames support	Yes
Auto MDIX IEEE	No
Sustainability compliance	Yes
Compliance certificates	RoHS
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1Q, IEEE 802.1x, IEEE 802.3i, IEEE 802.3u
Ports & interfaces
RJ-45 ports quantity (transmitter)	2
RJ-45 ports quantity (receiver)	2

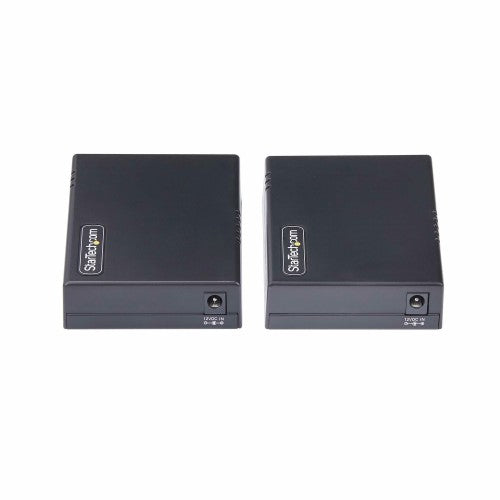

DC-in jack	Yes
Design
LED indicators	Yes
Housing material	Plastic, Steel
Product colour	Black
Power
AC input voltage	100 - 240 V
Input current	0.5 A
Power consumption (typical)	3.8 W
Output voltage	12 V
Output current	1 A
Power plug type	Type M
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	3.78" (96 mm)
Depth	0.906" (23 mm)
Height	2.87" (73 mm)
Weight	2.59 oz (73.5 g)
Packaging content
Quick start guide	Yes
AC adapter included	Yes
Packaging data
Package width	5.12" (130 mm)
Package depth	5.91" (150 mm)
Package height	7.09" (180 mm)
Package weight	31.7 oz (900 g)
Logistics data
Master (outer) case width	20.3" (515 mm)
Master (outer) case length	12" (305 mm)
Master (outer) case height	16.7" (425 mm)
Products per master (outer) case	15 pc(s)
