Attract Passing Customers with a Bright Display Presented Through a Window

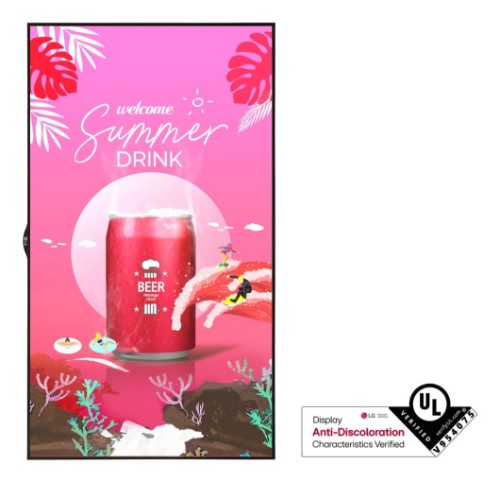

World’s First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with
webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quiet Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

Display
LED backlight	Yes
Display diagonal	55"
Display resolution	1920 x 1080 pixels
Display brightness	4000 cd/m²
HD type	Full HD
Response time	9 ms
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	500000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colors
Panel life	50000 h
Touchscreen	No
Panel type	IPS
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Display technology	LED
Native refresh rate	60 Hz
Haze rate	3%
Ports & interfaces
Ethernet LAN	Yes
HDMI ports quantity	2
DVI-D ports quantity	1
USB connector type	USB Type-A
Remote (IR) output	1
Remote (IR) input	1
USB port	Yes
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
RS-232C	Yes
Infrared data port	Yes
DisplayPorts quantity	2
DisplayPorts out	1
DisplayPorts in	1
HDMI input ports quantity	2
Audio
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Placement supported	Outdoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.472" (1.2 cm)
Bezel width (side)	0.39" (9.9 mm)
Bezel width (bottom)	0.472" (1.2 cm)
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Retail
Operating hours (hours/days)	24/7
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
On Screen Display (OSD)	Yes
Number of OSD languages	22
HDCP	Yes
HDCP version	1.4
Panel life	50000 h
Power
Power consumption (typical)	375 W
Heat dissipation	1280 BTU/h
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (off)	0.5 W
Power consumption (max)	400 W
Computer system
Operating system installed	WebOS
Computer system	Yes
Computer system type	System on Chip (SoC)
Internal memory	16 GB
Operating system version	6.0
Weight & dimensions
Display width	48.6" (1235.5 mm)
Display depth	3.36" (85.4 mm)
Display height	27.9" (709.4 mm)
Display weight	57.3 lbs (26 kg)
Packaging data
Package width	53.5" (1360 mm)
Package depth	33.2" (844 mm)
Package height	9.09" (231 mm)
Package weight	68.8 lbs (31.2 kg)
Remote control included	Yes
Manual	Yes
Cables included	AC, HDMI
Packaging content
Remote control included	Yes
Manual	Yes
Cables included	AC, HDMI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Thin Client
Operating system installed	WebOS
Internal memory	16 GB
Features
Suitable for outdoor use	Yes
Heat dissipation (max)	1365 BTU/h
Technical details
USB connector type	USB Type-A
Panel type	IPS
LED backlighting type	Direct-LED
DisplayPorts out	1
DisplayPorts in	1
Introduction year	24
Other features
USB connector type	USB Type-A
Power consumption (max)	400 W
Panel type	IPS
Manual	Yes
DisplayPorts out	1
DisplayPorts in	1
Display technology	LED
Bezel width (top)	0.472" (1.2 cm)
Bezel width (side)	0.39" (9.9 mm)
Bezel width (bottom)	0.472" (1.2 cm)
