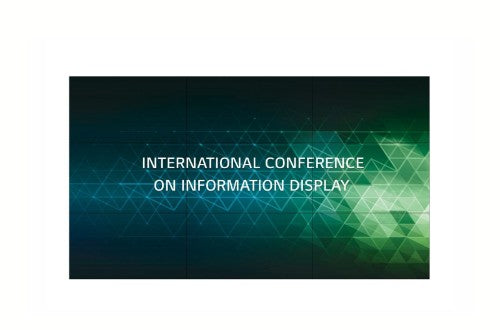

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

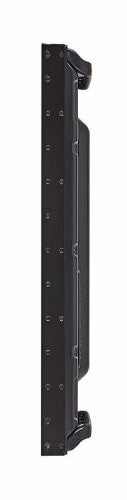

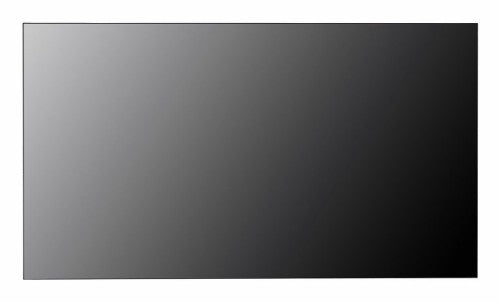

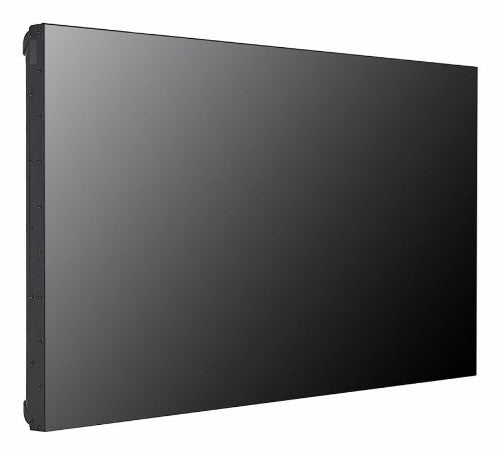

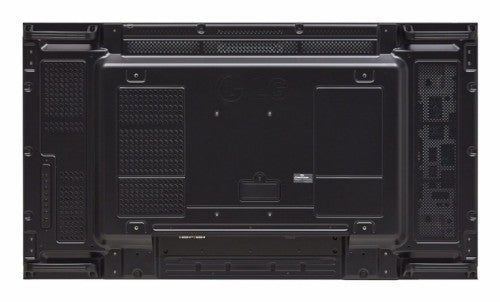

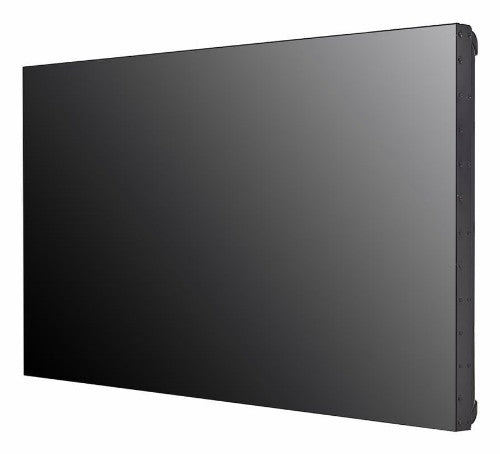

LG 55VH7J-H signage display Panorama design 55" 700 cd/m² Full HD Black 24/7
Part number
55VH7J-H
$2,568.71 CAD
55'', 700 nits, 1920 x 1080 px, FHD, IPS, 100-240V, 50/60Hz, 1212.2 × 683.0 × 86.9 mm, 18.8 kg
Key Features
- Brightness(Typ.) : 700 nit
- Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
- Depth : 86.9 mm
- Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Description
Seamless Large Screens with Extreme-Narrow BezelThe ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
Image Gap Reduction
The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation
The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VH7J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
Conformal Coating
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
Daisy Chain Capability
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
Specifications
| Display | |
|---|---|
| Display diagonal | 55" |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 700 cd/m² |
| HD type | Full HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colors |
| Touchscreen | No |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| Rated lifetime | 60000 h |
| Native refresh rate | 60 Hz |
| Haze rate | 28% |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.2 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 1 |
| RS-232C | Yes |
| DisplayPorts quantity | 1 |
| Design | |
| Product design | Panorama design |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| On Screen Display (OSD) | Yes |
| Power | |
| Power consumption (typical) | 250 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/6 Hz |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 157 kWh |
| Weight & dimensions | |
| Display width | 47.7" (1212.2 mm) |
| Display depth | 3.42" (86.9 mm) |
| Display height | 26.9" (683 mm) |
| Display weight | 41.4 lbs (18.8 kg) |
| Packaging data | |
| Package width | 53.3" (1353 mm) |
| Package depth | 10.4" (263 mm) |
| Package height | 33.7" (855 mm) |
| Package weight | 68.3 lbs (31 kg) |
| Remote control included | Yes |
| Cables included | DisplayPort, Power, RS-232 |
| Packaging content | |
| Remote control included | Yes |
| Cables included | DisplayPort, Power, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Logistics data | |
| Country of origin | South Korea |
| Technical details | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Other features | |
| Panel type | IPS |
| Energy efficiency scale | A to G |
