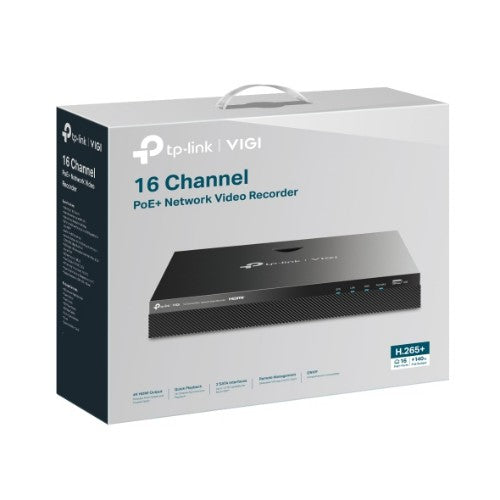

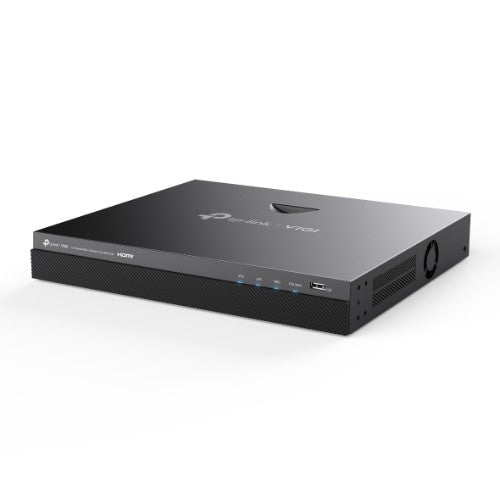

TP-Link VIGI VIGINVR2016H-16MP4TB Black
629.54 CAD
Skip to product information
Out of stock
TP-Link VIGI VIGINVR2016H-16MP4TB Black
Part number
VIGI NVR2016H-16MP-4TB
629.54 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
4.1 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W
- 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time
- 24/7 Continuous Recording: Stores up to 32 TB of footage (1048 storage days) from connected cameras to secure your data for quick, convenient access
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience
Security Never Shuts Down
16MP16 Channel PoE+ Network Video Recorder
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.
Security for Every Hour and Every Day
27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
16MP16 Channel PoE+ Network Video Recorder
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.
Security for Every Hour and Every Day
27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
|---|---|
| Video input channels | 16 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Playback modes | Fast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum frame rate | 30 fps |
| Supported resolutions | 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Audio formats supported | G.711, G.711 μ-law, G.726 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p, 1080p, 2160p |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |

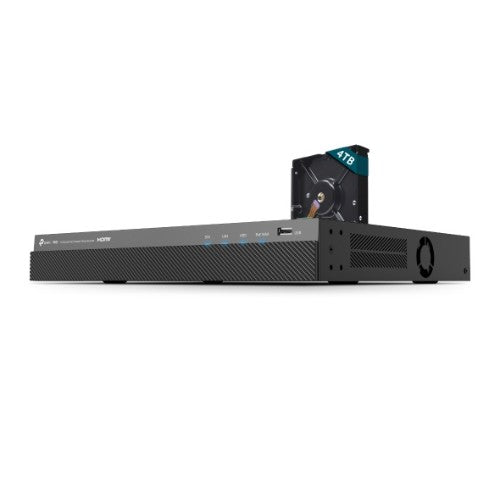

| Hard drive | |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 4 TB |
| Maximum storage capacity | 32000 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 4 TB |
| HDD interface | SATA |
| Storage | |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 4 TB |
| Maximum storage capacity | 32000 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 4 TB |
| HDD interface | SATA |

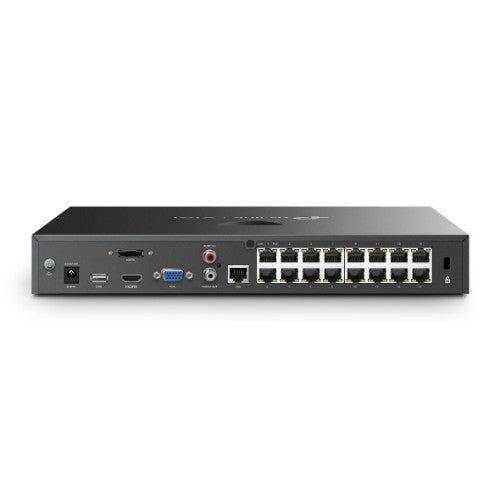

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 1 |
| Power over Ethernet (PoE) ports quantity | 16 |
| eSATA ports quantity | 1 |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| DC-in jack | Yes |
| Storage relative humidity (H-H) | 10 - 90% |
| Features | |
| Reset button | Yes |
| Product colour | Black |
| Power | |
| Power consumption (max) | 40 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power consumption (typical) | 6.2 W |
| System requirements | |
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA, VCCI |
| Weight & dimensions | |
| Width | 13" (330 mm) |
| Depth | 11.2" (285 mm) |
| Height | 1.77" (45 mm) |
| Weight | 4.63 lbs (2.1 kg) |
| Package weight | 9.04 lbs (4.1 kg) |
