TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
48.42 CAD
Skip to product information
In stock
TP-Link Omada DS105GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
DS105GP
48.42 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.73 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

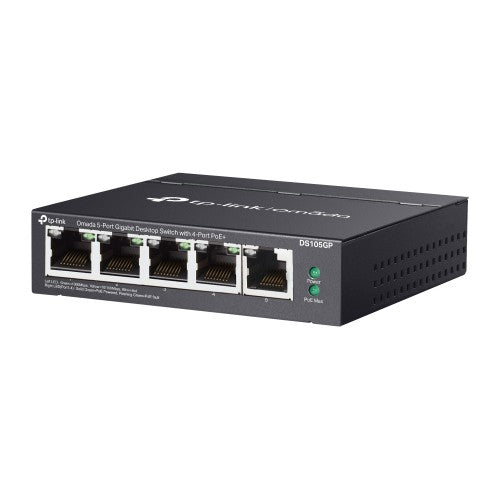

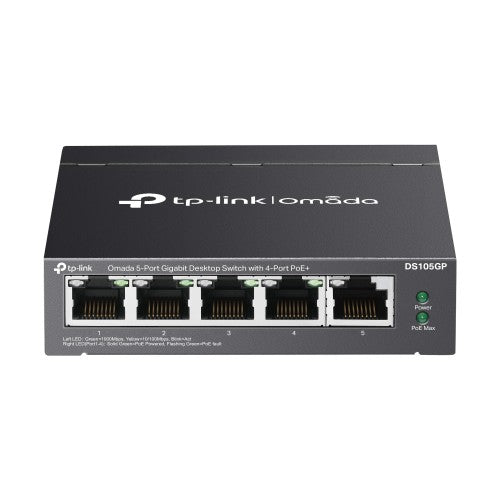

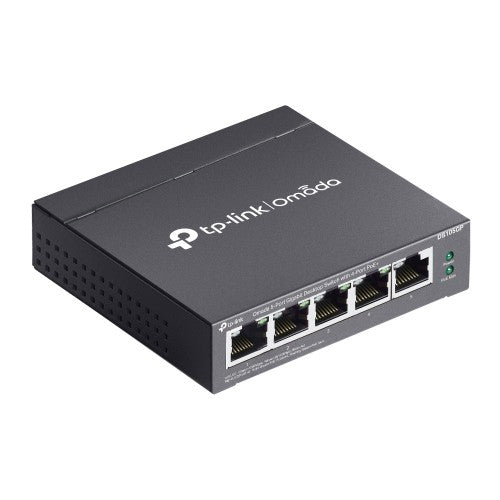

- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required
Omada 5Port Gigabit Desktop Switch with 4Port PoE+PORT: 4 Gigabit PoE+ Ports, 1 Gigabit NonPoE PortSPEC: 802.3af/at, 65 W PoE Power, Desktop Steel CaseFEATURE: Plug and Play
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames | 16 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Black |
| Reset button | Yes |

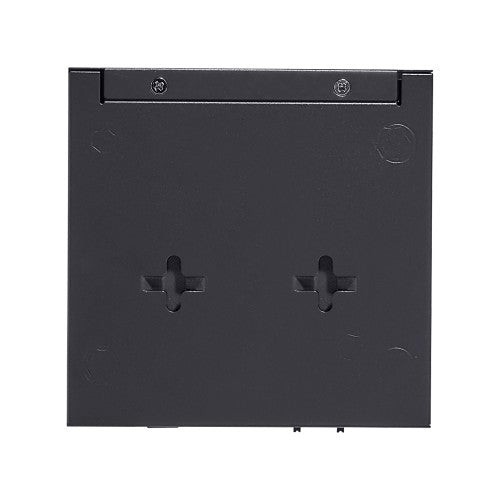

| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Steel |
| Performance | |
| Fanless | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 74.54 W |
| Input current | 1.31 A |

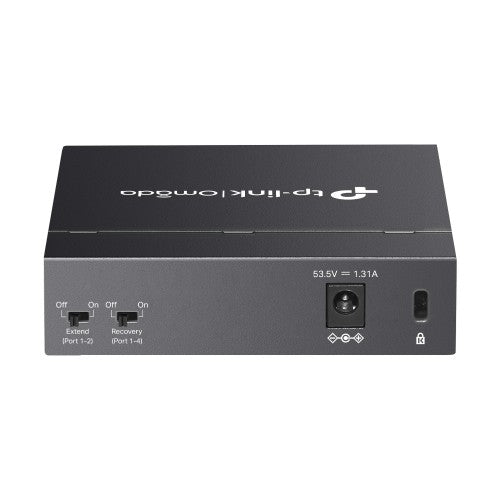

| DC input voltage | 53.5 V |
| Power source | AC/DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 254.01 BTU/h |
| Weight & dimensions | |
| Width | 3.93" (99.8 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |

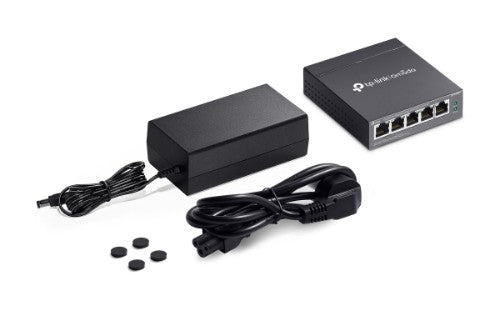

| Packaging content | |
| User guide | Yes |
| Cables included | Power |
| Rubber feet | Yes |
| Packaging data | |
| Rubber feet | Yes |
| User guide | Yes |
| Cables included | Power |
| Technical details | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Certificates | |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
