Designed to deliver instant and intuitive collaboration without a complicated setup, ViewSonic® TeamJoin™ solutions for Microsoft Teams Rooms enhance communication, foster collaboration, and promote inclusivity for teams of all sizes, regardless of location. The TeamJoin™ TRS10-UB bundle, featuring a Computing Engine (MPC310-W31-TU), Touch Console (MRC1010-TN), and 4K Video Bar System (UMB202), offers a complete, one-stop solution that can easily scale to meet your needs and adapt to any meeting space size.

One-stop Microsoft Teams Rooms Solution

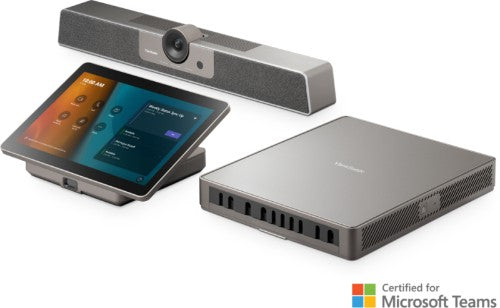

Featuring a nimble Computing Engine, intuitive Touch Console and 4K Video Bar System, this TRS10-UB bundle includes everything needed for a comprehensive Microsoft Teams Rooms experience. Ideal for enterprises looking to completely upgrade and transform their meeting spaces, this bundle delivers optimized setup, enhanced security, crisp audio and crystal-clear video performance for instant collaboration in meeting rooms of any size.

Enterprise-grade Security
An integrated Trusted Platform Module (TPM) 2.0 ensures safer, more secure computing with hardware-based authentication and tamper detection. Additionally, the 12th generation Intel processor delivers advanced security features, including Intel Threat Detection Technology and Control-Flow Enforcement. These are further complemented by the Windows 11 IoT Enterprise operating system with Smart App Control (SAC), enhancing overall device security.

Seamless Collaboration Control Hub

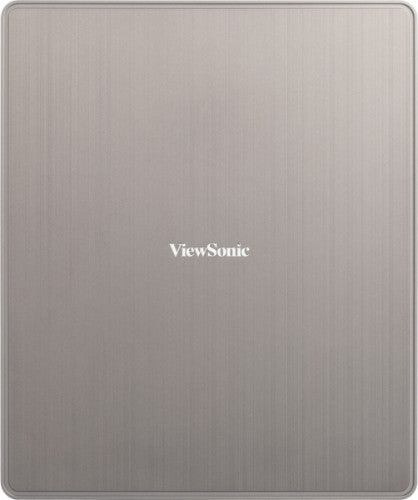

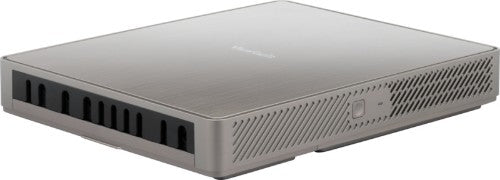

The MPC310-W31-TU TeamJoin Computing Engine powered by a 12th Gen Intel® Core™ processor, optimises hybrid collaboration. With built-in Microsoft Teams Rooms software on the latest Windows 11 IoT Enterprise, it facilitates easy connection, content sharing, and collaboration in calls and meetings. The integrated cable management streamlines the setup, simplifying maintenance for IT staff.

Full Meeting Control at Your Fingertips

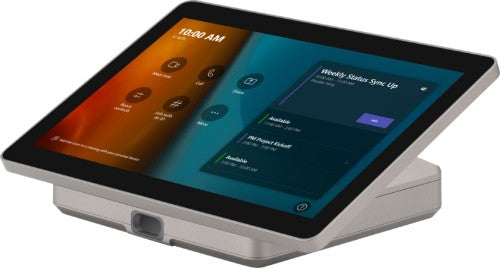

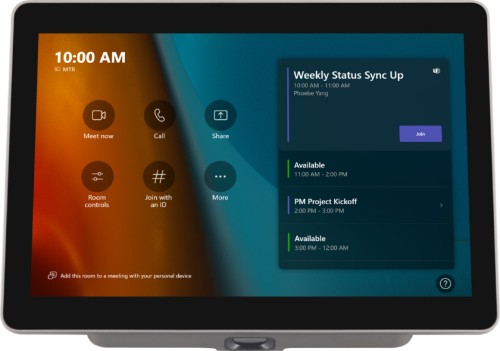

Enjoy intuitive touch control with the MRC1010-TN TeamJoin Touch Console. Featuring Direct HDMI Ingest connectivity for BYOD presentations, this 10.1” Full HD anti-glare touch display offers an easy-to-use Microsoft Teams interface that allows you to start, join and manage meetings—all from your fingertips.

Start Meetings with a Simple Move
The MRC1010-TN TeamJoin Touch Console automatically activates the computing engine and ViewSonic display upon detecting human presence, ensuring the meeting is ready to start the moment you are.

Elevate Your Presence in Every Interaction

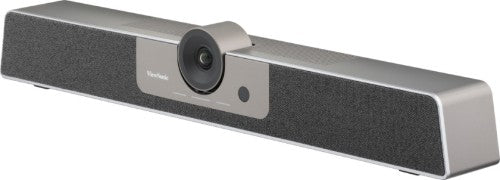

The UMB202 TeamJoin 4K Video Bar System's intelligent auto-framing and Direction-of-Arrival (DOA) voice tracking technology accurately detect individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures your presence is felt in every interaction, fostering inclusivity and collaboration in every meeting.

See and Hear Everyone Clearly
Ensure everyone is seen and heard with the UMB202 TeamJoin 4K Video Bar System, equipped with a built-in 6-microphone array, an 8W+3W front-facing speaker, and an Ultra HD 4K camera featuring an advanced Sony sensor..

Performance
Product type	Video collaboration bar
Product colour	Black
PTZ control	Yes
Bluetooth	Yes
Bluetooth version	5.3
Auto framing	Yes
Technical details
Product type	Video collaboration bar
Product colour	Black
PTZ control	Yes
Bluetooth	Yes
Bluetooth version	5.3
Video
Megapixel (approx.)	12 MP
HD type	2K Ultra HD
Digital zoom	5x
Supported graphics resolutions	320 x 240, 352 x 288, 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Maximum video resolution	3804 x 2160 pixels
Audio
Noise reduction	Yes
Built-in speaker(s)	Yes
Memory
Internal memory	8000 MB
Internal memory type	DDR4
Storage media type	SSD
Total storage capacity	128 GB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Camera
Megapixel (approx.)	12 MP
Image sensor size	1/2.3"
Horizontal field of view	109°
Digital zoom	5x
Sensor type	CMOS
Communication protocol	UVC 1.1
Vertical field of view	74.4°
Diagonal field of view	117.8°
Camera type	Single camera
Zoom capability	Yes
Display
Built-in display	Yes
Display	LED
Display diagonal	10.1"
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
Display brightness	300 cd/m²
Microphone
Number of microphone arrays	6
Features
Motion sensor	Yes
Computer system
Processor family	Intel® Core™ i3
VESA mounting	Yes
Operating system installed	Windows 11 IoT Enterprise
Other operating systems supported	Android, ChromeOS
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8.1
Mac operating systems supported	Yes
Processor model	i3-1220P
Computer case
Processor family	Intel® Core™ i3
VESA mounting	Yes
Operating system installed	Windows 11 IoT Enterprise
Other operating systems supported	Android, ChromeOS
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	111.9 W
Weight & dimensions
Speaker dimensions (WxDxH)	18.1 x 3.66 x 3.01" (461 x 93 x 76.4 mm)
Interface module dimensions (W x D x H)	9.06 x 10.8 x 1.69" (230 x 275.5 x 43 mm)
Remote control dimensions (W x H x D)	9.64 x 6.3 x 3.86" (244.8 x 160 x 98 mm)
Packaging content
Mounting kit	Yes
Wall mounting kit	Yes
Remote control included	Yes
Cables included	AC, USB Type-C
Power cable length	70.9" (1.8 m)
AC adapter included	Yes
Screws included	Yes
Quick start guide	Yes
