Fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
Self-locating with embedded GPS receiver and will operate as standard power (SP) devices requiring an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology that eliminates sticky client issues by steering a client to the AP where it receives the best radio signal.
Ii offers convenient wired connectivity with fast 2.5 GbE uplink port and 1 GbE port.
It offers network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
Simplified policy enforcement with the Policy Enforcement Firewall (PEF) that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our access points include an installed TPM for secure storage of credentials and keys, and boot code.
Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
The intelligent power monitoring (IPM) provides insights into energy consumption, our access points continuously monitor and report hardware energy usage. Unlike the other vendors access points, our access points can also be configured to enable or disable capabilities based on available PoE power.

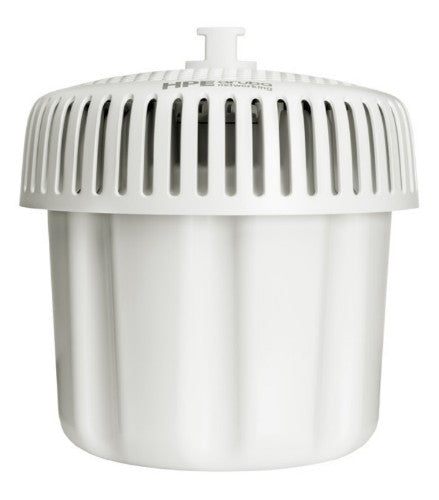

HPE Aruba Networking AP-675 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Omni-Directional Outdoor AP
Part number
S0P51A
$3,375.37 CAD
HPE Aruba Networking AP-675 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Omni-Directional Outdoor AP, 2.4 GHz, 5 GHz, 6 GHz, 3900 Mbit/s
Key Features
- Ideal for outdoor and environmentally challenging locations
- Tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz for 3.9 Gbps peak aggregate data rate
- Industrial IoT-ready with highpower Bluetooth and Zigbee radios
- Fast wired connectivity with 2.5GbE and 1GbE SFP ports
- Standard Power (SP) device operation and self-locating with embedded GPS receiver
- Class 1 Division 2 and ATEX Zone 2 certified AP-670EX models
Reasons To Buy
High Performance Outdoor Wi-Fi 6E
HPE Aruba Networking 670 Series Outdoor Access Points operate as standard power (SP) devices and deliver greater efficiency with OFDMA, MU‑MIMO, and target wake time (TWT) to extend the battery life of devices.Fast performance with 6 GHz band that delivers up to 1200 MHz additional capacity and 3.6 Gbps maximum combined data rate to better support high-bandwidth, low-latency applications such as high-definition video.
Self-locating with embedded GPS receiver and will operate as standard power (SP) devices requiring an automated frequency coordination service (AFC) to protect incumbent outdoor services.
Enhanced wireless experience with ClientMatch technology that eliminates sticky client issues by steering a client to the AP where it receives the best radio signal.
Ii offers convenient wired connectivity with fast 2.5 GbE uplink port and 1 GbE port.
Simplified Access with Enhanced Security
The HPE Aruba Networking 670 Series Outdoor Access Points offer enhanced security with Dynamic Segmentation to eliminate the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.It offers network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).
Simplified policy enforcement with the Policy Enforcement Firewall (PEF) that encapsulates all traffic from the AP to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, our access points include an installed TPM for secure storage of credentials and keys, and boot code.
Ruggedized and Ready for IoT
The HPE Aruba Networking 670 Series Outdoor Access Points include integrated high-power Bluetooth and Zigbee radios to simplify deploying and managing IoT-based location services, asset tracking services, security solutions, and IoT sensors.Ruggedized outdoor access points support extended temperatures to address the requirements of a broad range of surface, subsurface, and offshore applications. This series includes 670EX outdoor models that are designed for the most extreme, hazardous locations.
The target wake time (TWT) establishes a schedule for when clients need to communicate with an AP to help improve client power savings and reduce airtime contention with other clients.
Advanced IoT Coexistence (AIC) feature uses built-in filtering to allow Wi-Fi, Bluetooth, and Zigbee radios to operate at higher capacity without the impact of interference.
The intelligent power monitoring (IPM) provides insights into energy consumption, our access points continuously monitor and report hardware energy usage. Unlike the other vendors access points, our access points can also be configured to enable or disable capabilities based on available PoE power.
Description
HPE Aruba Networking AP-675 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Omni-Directional Outdoor AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 3900 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 45.5 WSpecifications
| Performance | |
|---|---|
| Maximum data transfer rate | 3900 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Networking standards | IEEE 802.11ax |
| Certification | None |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Features | |
| 6 GHz | Yes |
| Maximum data transfer rate | 3900 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth version | 4.2 + 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| BeamForming | Yes |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 45.5 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Reset button | Yes |
| Placement | Pole, Wall |
| International Protection (IP) code | IP66, IP67 |
| Product colour | White |
| Certification | None |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 11.4" (290 mm) |
| Depth | 11.3" (288 mm) |
| Height | 12.3" (312 mm) |
| Weight | 8.82 lbs (4 kg) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 100% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
