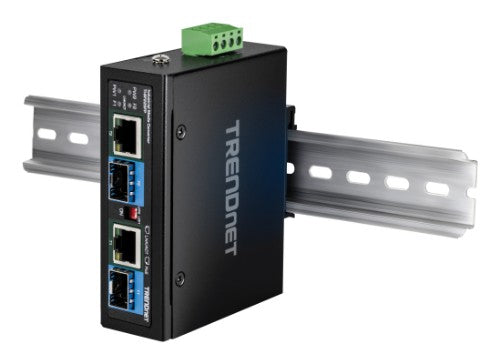

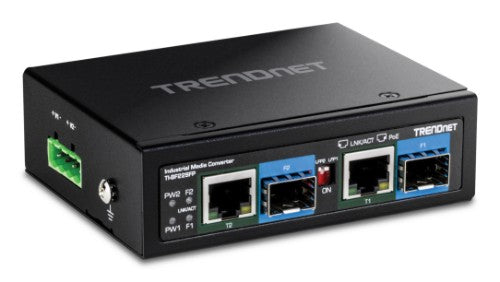

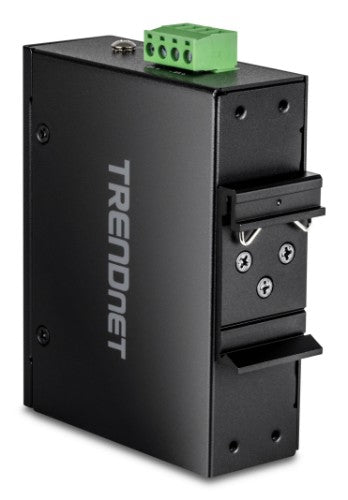

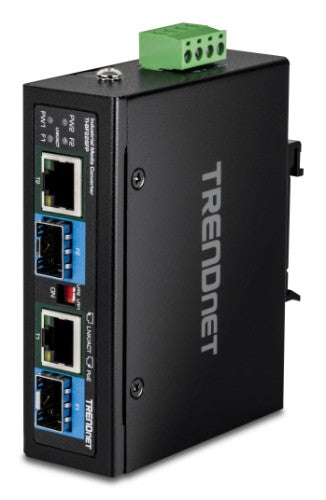

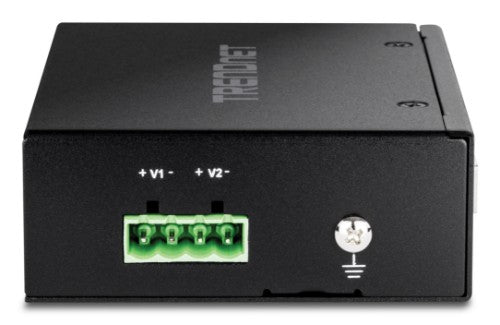

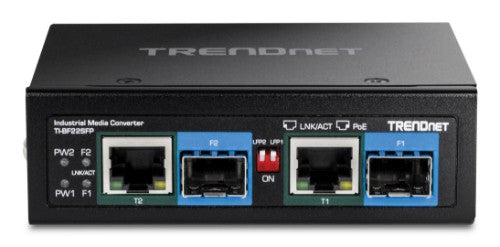

Trendnet TI-BF22SFP network media converter 1000 Mbit/s Black
307.80 CAD
Skip to product information
In stock
Trendnet TI-BF22SFP network media converter 1000 Mbit/s Black
Part number
TI-BF22SFP
307.80 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.176 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 2 x Gigabit SFP ports
- 2 x Gigabit PoE++ RJ-45 ports
- Hardened IP30 rated metal housing
- Provides up to 90W for PoE, PoE+ and PoE++ compliant devices
- Includes DIN-Rail and wall mounts
- Extreme operating temperature range -40°– 75° C (-40° – 167° F)
- Overload current protection
- Powers supply sold separately (model TI-S15052)
- NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 2-Port Industrial SFP to Gigabit PoE++ Media Converter, model TI-BF22SFP, converts two long distance fiber connections to copper connections, while providing power to PoE, PoE+, and PoE++ compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the industrial PoE++ fiber media converter features a hardened IP30 rated metal housing suitable for tough, industrial environments. The industrial PoE++ fiber media converter’s rugged design also provides protection from shock, freefall, and vibration.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Auto-negotiation | Yes |
| Jumbo frames | 16000 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full |
| Fiber optic connector | SFP |
| Performance | |
| Mean time between failures (MTBF) | 551468 h |
| Auto-negotiation | Yes |
| Jumbo frames support | Yes |
| Features | |
| Internal | No |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power | |
| Input voltage | 48 - 56 V |
| Power consumption (typical) | 3.84 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Weight & dimensions | |
| Width | 4.09" (104 mm) |
| Depth | 3.21" (81.5 mm) |
| Height | 1.26" (32 mm) |
| Weight | 6.21 oz (176 g) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Design | |
| Internal | No |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Product colour | Black |
| Certification | CE FCC |
| Certificates | |
| Certification | CE FCC |
