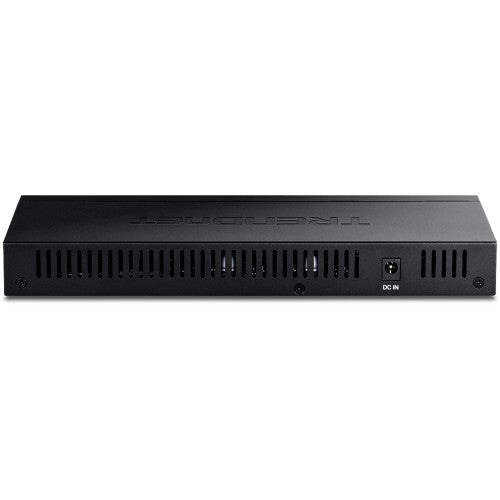

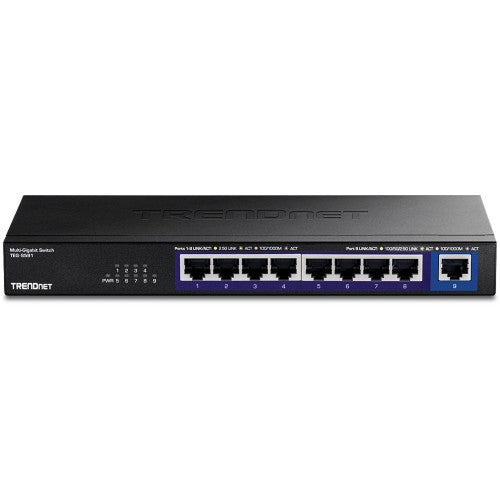

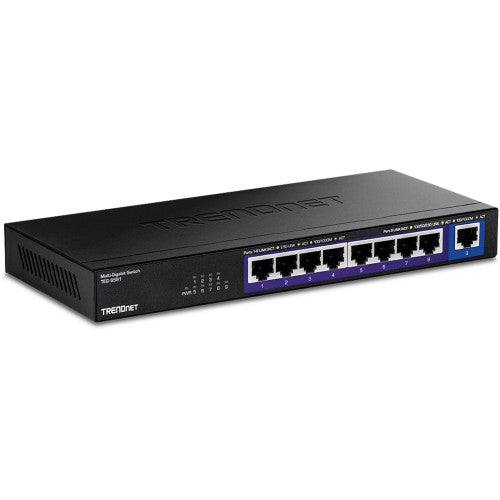

Trendnet TEG-S591 network switch Unmanaged 2.5G Ethernet (100/1000/2500)
Part number
TEG-S591
$182.69 CAD
9-Port Multi-Gig Switch
Key Features
- 8 x 2.5G RJ-45 ports
- 1 x 10G RJ-45 port
- Compact fanless design eliminates noise

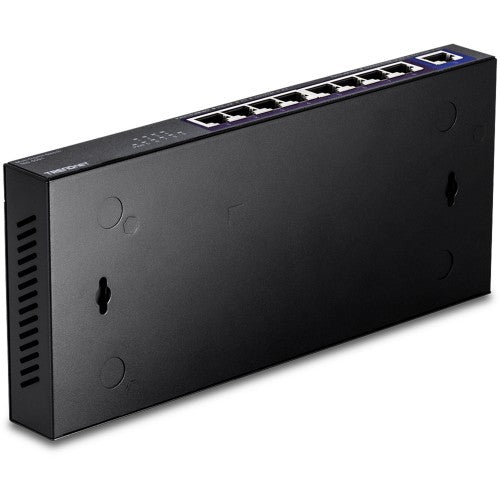

- Wall mountable for installation flexibility
- 60Gbps switching capacity
- IEEE 802.3bz (2.5G) compliant
- IEEE 802.3an (10G) compliant
- NDAA / TAA compliant (U.S. and Canada only)
Description
Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable multi-gigabit switches are cost-effective solutions to increase your network’s throughput.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 60 Gbit/s |
| Jumbo frames | 12000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 1 MB |
| Forwarding rate | 44.64 Mpps |
| Design | |
| Wall mountable | Yes |
| LED indicators | Yes |
| Certification | CE FCC LVD |
| Performance | |
| Mean time between failures (MTBF) | 518151 h |
| Fanless | Yes |
| Packet buffer memory | 1 MB |
| Power | |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47/63 Hz |
| Power consumption (max) | 11.9 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 9.45" (240 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.06" (27 mm) |
| Weight | 25.4 oz (720 g) |
| Certificates | |
| Certification | CE FCC LVD |
