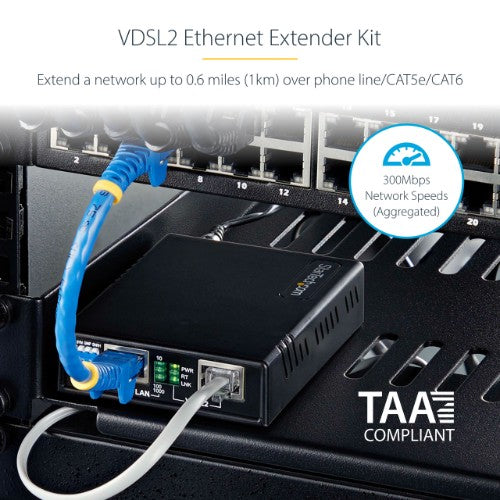

Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP

Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).

Extend Network Connectivity

Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.

Thoughtful Design

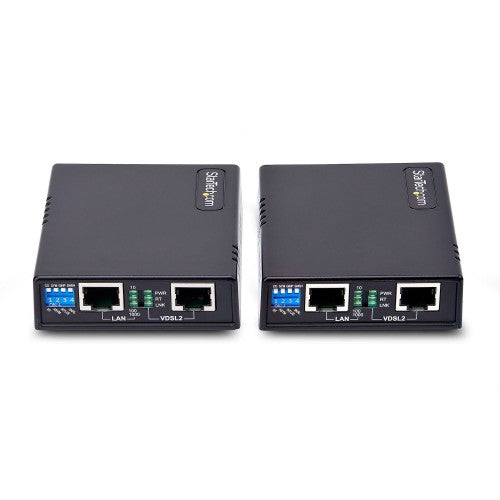

The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.

Versatile Applications

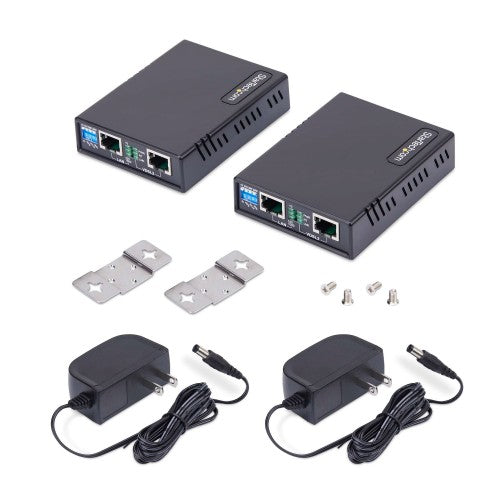

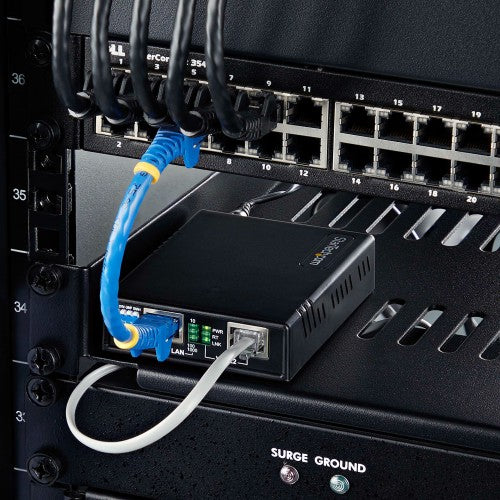

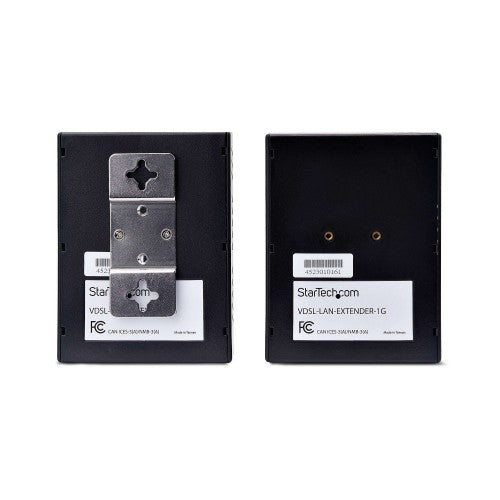

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.

The StarTech.com Advantage

Performance
Type	Network repeater
Maximum transfer distance	39370.1" (1000 m)
Data transfer rate	300 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	RTL8685FB-CG
VLAN tagging	Yes
Network
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ports & interfaces
DC-in jack	Yes
RJ-45 output ports	2
RJ-45 input ports	2
Design
LED indicators	LAN, Power
Product colour	Black
Quantity per pack	2 pc(s)
Rack mounting	No
Power
AC input voltage	100 - 240 V
Input current	0.5 A
Power consumption (typical)	3.8 W
External power adapter	Yes
Power plug type	Type M
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	2.91" (74 mm)
Depth	3.82" (97 mm)
Height	0.906" (23 mm)
Weight	4.09 oz (116 g)
Packaging content
Quick start guide	Yes
AC adapter included	Yes
Packaging data
Package width	5.91" (150 mm)
Package depth	7.09" (180 mm)
Package height	5.12" (130 mm)
Package weight	24.7 oz (700 g)
Sustainability
Sustainability compliance	Yes
Technical details
Type	Network repeater
Maximum transfer distance	39370.1" (1000 m)
Data transfer rate	300 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	RTL8685FB-CG
VLAN tagging	Yes
LED indicators	LAN, Power
Sustainability compliance	Yes
Compliance certificates	Trade Agreements Act (TAA)
Certificates
Compliance certificates	Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	12" (305 mm)
Master (outer) case length	16.7" (425 mm)
Master (outer) case height	20.3" (515 mm)
Products per master (outer) case	15 pc(s)
