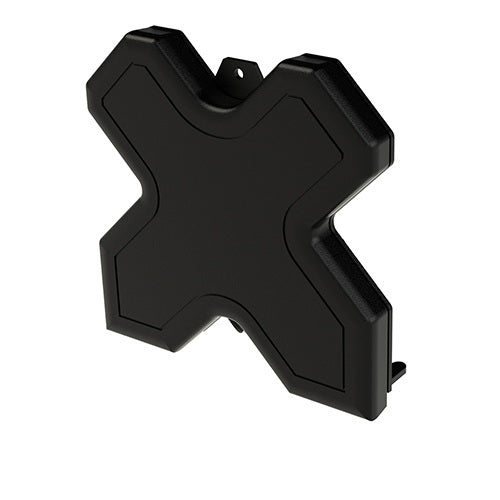

Panorama Antennas DMM4-6-60 network antenna Omni-directional antenna SMA 5 dBi
131.01 CAD
Skip to product information
Out of stock
Panorama Antennas DMM4-6-60 network antenna Omni-directional antenna SMA 5 dBi
Part number
DMM4-6-60-2SP
Sale price
131.01 CAD
Regular price
134.67 CAD
Taxes and shipping calculated at checkout.
Save
3.66 CAD
Off
3%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.733 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 4G/5G CAT18/20 LTE ready with fallback to 2G/3G
- Desk, window and wall mountable design
- Lightweight portable plug-and-play solution
The DMM4 portable antenna is an innovative antenna design which provides 4x4 MiMo function for 4G/5G with fallback to 3G/2G
The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4x4 MiMo function. It can also provide 2x 2x2 MiMo function for a router with dual modems, each requiring a 2x2 antenna system.
The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided.
The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors.
The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
The DMM4 antenna is a future proof solution for Cat 18/20 4G and 5G devices. Incorporating four separately fed, ultra wide band elements for 617-960/1710- 6000MHz in a single housing, the DMM4 provides a 4x4 MiMo function. It can also provide 2x 2x2 MiMo function for a router with dual modems, each requiring a 2x2 antenna system.
The DMM4 is highly portable and features desk mount feet which fold out for use, and flat for transport. A suction window mount enables the user to optimise their signal in multiple locations, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided.
The antenna is supplied with two twinned 2m (6’) length coaxial cables, with the option of SMA, TS9 or FAKRA D connectors.
The DMM4 is a cost eff ective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers, thereby improving satisfaction and retention.
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 0.96 / 1.71 - 6 GHz |
| Impedance | 50 Ω |
| Gain | 2 / 4 / 5 dBi |
| Features | |
| Housing material | Acrylonitrile styrene acrylate (ASA) |
| Connector gender | Male |
| Antenna type | Omni-directional antenna |
| Cable length | 78.7" (2 m) |
| Antenna connector type | SMA |
| Product colour | Black |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 0.617 - 0.96 / 1.71 - 6 GHz |
| Impedance | 50 Ω |
| Gain | 2 / 4 / 5 dBi |
| Power | |
| Power consumption (max) | 2 W |
| Weight & dimensions | |
| Width | 7.24" (184 mm) |
| Depth | 2.09" (53 mm) |
| Height | 7.28" (185 mm) |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
