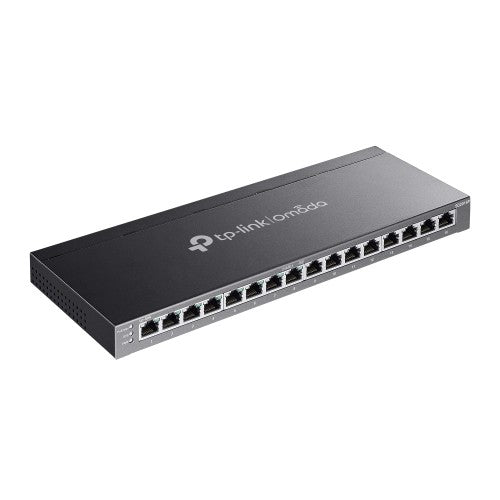

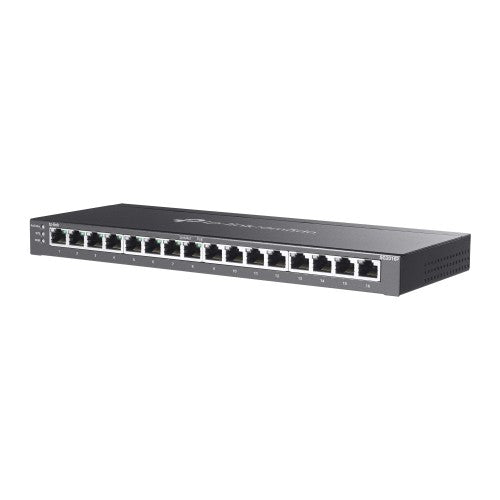

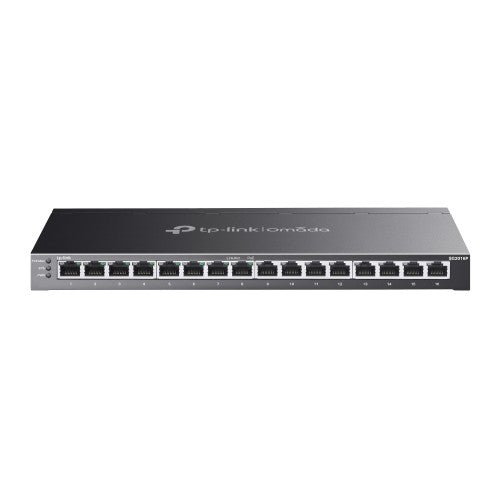

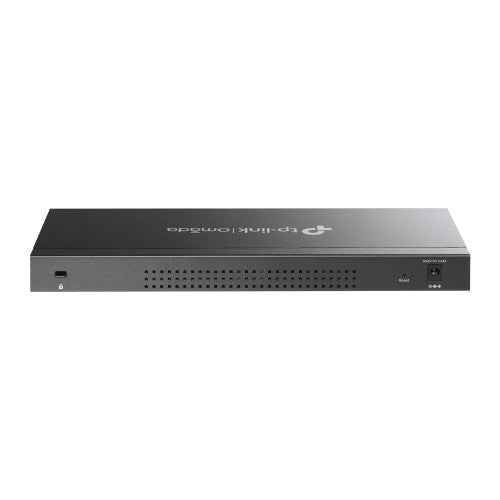

TP-Link Omada SG2016P network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
175.89 CAD
Skip to product information
2 left
TP-Link Omada SG2016P network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
SG2016P
175.89 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.012 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
- 120 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation

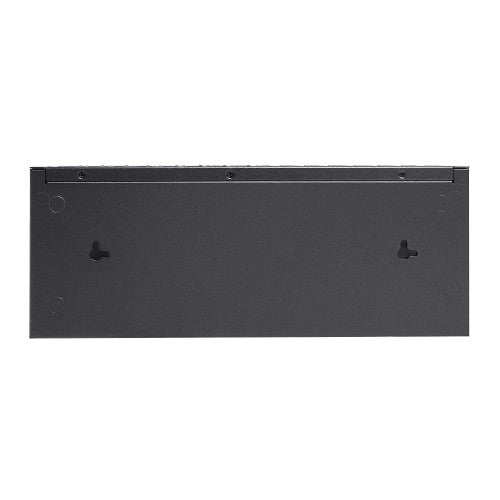

- Durable metal casing and desktop/wall mounting design
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
| Management features | |
|---|---|
| Switch layer | L2/L2+ |
| Switch type | Managed |
| ARP inspection | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Number of VLANs | 4000 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames | 9000 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Packet buffer memory | 4.1 MB |
| Forwarding rate | 23.81 Mpps |
| Number of VLANs | 4000 |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Security | |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protocols | |
| Supported network protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | PoE, Power, System |
| Certification | CE, FCC, RoHS |
| Performance | |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Packet buffer memory | 4.1 MB |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 146.5 W |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 499.98 BTU/h |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 11.3" (286 mm) |
| Depth | 4.4" (111.7 mm) |
| Height | 1" (25.4 mm) |
| Packaging content | |
| Manual | Yes |
| Cables included | AC |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Packaging data | |
| Manual | Yes |
| Cables included | AC |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
