In stock

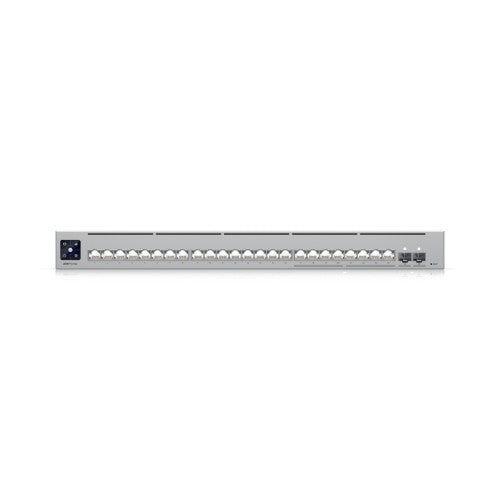

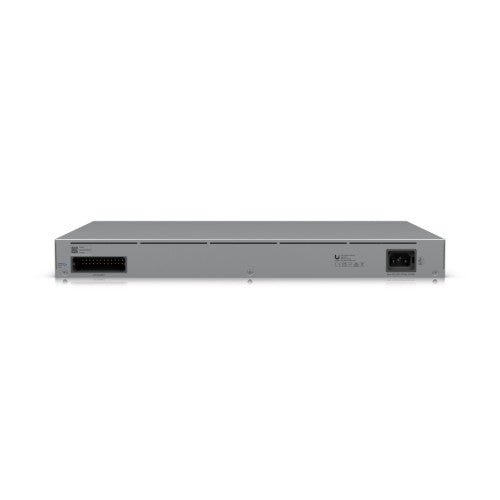

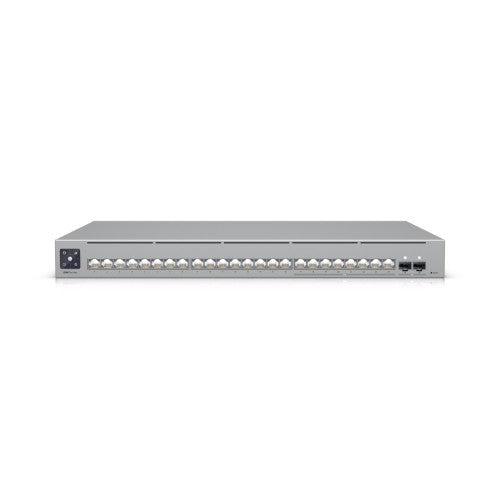

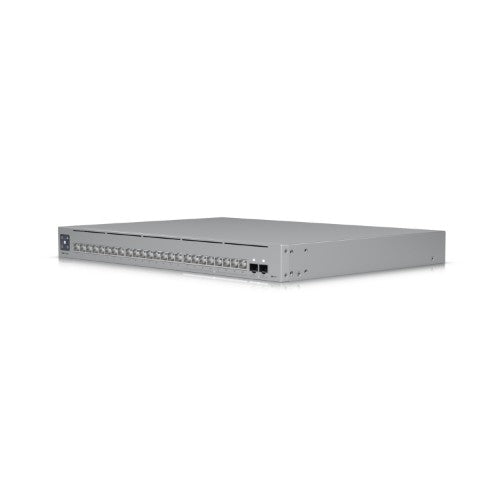

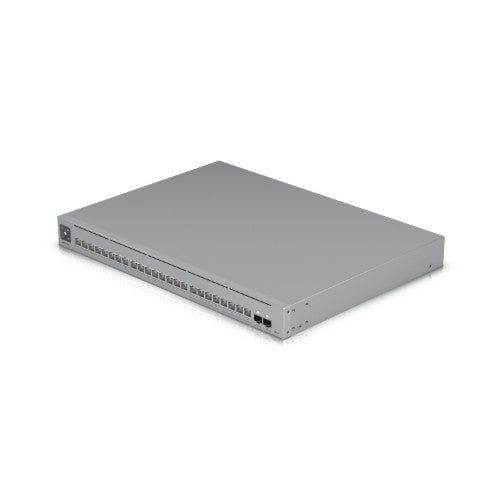

Ubiquiti Pro Max 24 L3 2.5G Ethernet (100/1000/2500) 1U Gray
Part number
USW-PRO-MAX-24
$611.12 CAD
50W, 8 x 2.5 GbE RJ45, 16 x GbE RJ45, 2 x 10G SFP+, SGCC steel, 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Key Features

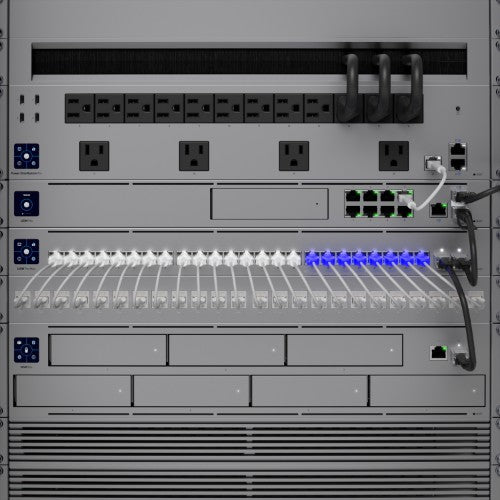

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network
- (8) 2.5 GbE RJ45 ports
- (16) GbE RJ45 ports
- (2) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later
Description
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.Specifications
| Management features | |
|---|---|
| Switch layer | L3 |
| Reset button | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC/DC |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Voice VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Switching capacity | 112 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Throughput | 56 Gbit/s |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP snooping |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Gray |
| Reset button | Yes |
| Form factor | 1U |
| Display type | LCM |
| LED indicators | Link, Network, Speed, Status |
| Housing material | SGCC |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 50 W |
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
| Power connector | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN |
| Weight & dimensions | |
| Width | 17.4" (442.4 mm) |
| Depth | 12.8" (325 mm) |
| Height | 1.72" (43.7 mm) |
| Weight | 9.48 lbs (4.3 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | Power |
| Sustainability | |
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | Power |
