Wilson Electronics 859112 cellular network device Cellular network splitter
78.39 CAD
Skip to product information
Out of stock
Wilson Electronics 859112 cellular network device Cellular network splitter
Part number
859112
78.39 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.372 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

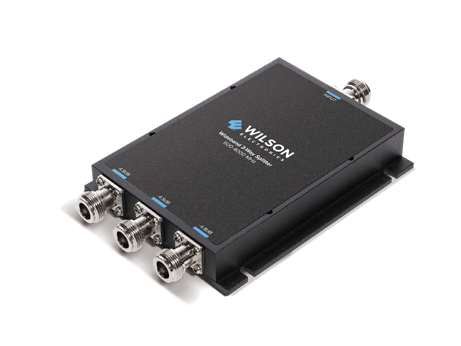

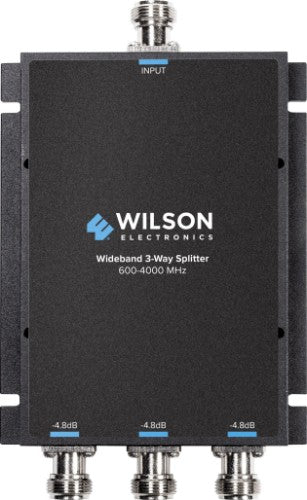

This 3-way splitter (859112) is used with WilsonPro cellular repeaters to split a signal into 3 equal parts, allowing 3 antennas to be run from a single cable and receive similar strength. It is required in order to add C-Band antennas (311245, 311243, 311242) and repeaters to an existing system. Designed to be used with WilsonPro 1337 C-Band products, this splitter is compatible with frequencies from 600 to 4,000 MHz. This IP65 indoor and outdoor rated splitter supports C-Band, T-Mobile band 71, and is Pro 710i compatible. As a high-performance splitter, it features low insertion loss and low VSWR (voltage standing wave ratio). It is equipped with N-Female connectors. Replaces previous version of 3-way splitter (859980).
| Technical details | |
|---|---|
| Device type | Cellular network splitter |
| Data network | Not supported |
| Design | |
| Device type | Cellular network splitter |
| Product colour | Black |
| Suitable for outdoor use | Yes |
| Suitable for indoor use | Yes |
| Ethernet LAN features | |
| Ethernet LAN | No |
| Wireless LAN features | |
| Wi-Fi | No |
| Mobile network | |
| Data network | Not supported |
| Performance | |
| Antenna connector type | N-type |
| Antenna | |
| Antenna connector type | N-type |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Weight & dimensions | |
| Weight | 13.1 oz (371.9 g) |
| Width | 6.25" (158.8 mm) |
| Depth | 3.88" (98.4 mm) |
| Height | 1.37" (34.9 mm) |
