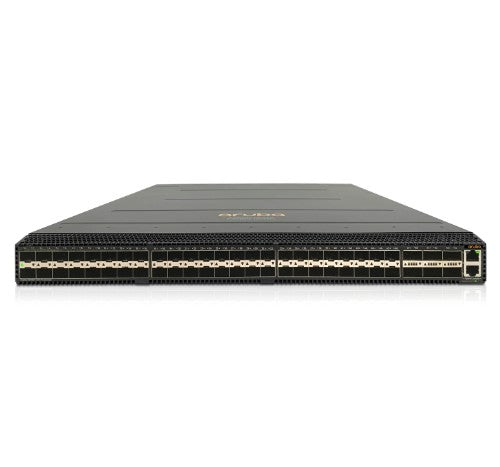

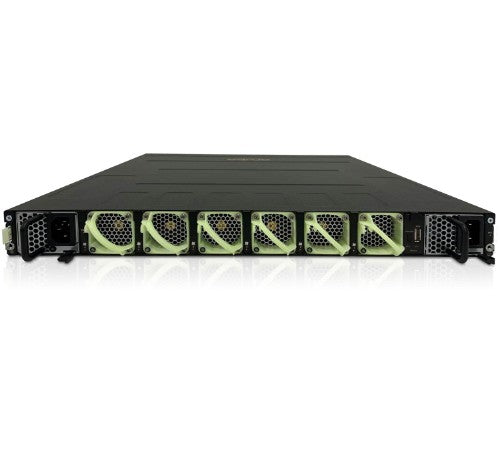

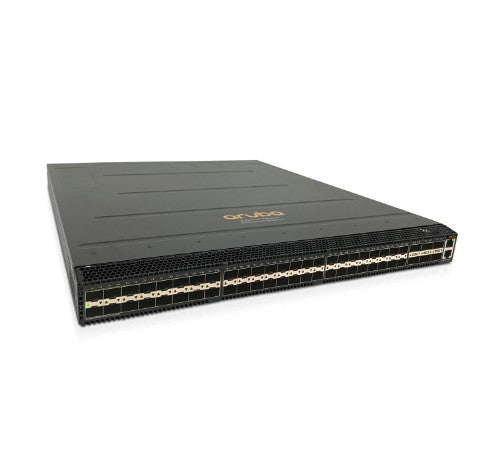

HPE Aruba Networking Aruba CX 10000-48Y6C Managed L3 1U
59,857.92 CAD
Skip to product information
Out of stock
HPE Aruba Networking Aruba CX 10000-48Y6C Managed L3 1U
Part number
R8P14A#ABA
59,857.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
9.75 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
HPE Aruba Networking Aruba CX 10000-48Y6C. Switch type: Managed, Switch layer: L3. Console port: RJ-45/Micro-USB. MAC address table: 98304 entries, Switching capacity: 3600 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE.... Rack mounting, Form factor: 1U
| Network | |
|---|---|
| IGMP snooping | Yes |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4018 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN |
| Virtual LAN features | |
| Number of VLANs | 4018 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of VLANs | 4018 |
| MAC address table | 98304 entries |
| Switching capacity | 3600 Gbit/s |
| Throughput | 1940 Mpps |
| Packet buffer memory | 32 MB |
| Optical fiber | |
| Fiber optic connector | QSFP28, SFP28 |
| Performance | |
| Packet buffer memory | 32 MB |
| Processor frequency | 2900 MHz |
| Memory type | RAM / Flash |
| Internal memory | 32768 MB |
| Flash memory | 8192 MB |
| Built-in processor | Yes |
| Management features | |
| Switch layer | L3 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type | No |
| Console port | RJ-45/Micro-USB |
| Fiber optic connector | QSFP28, SFP28 |
| QSFP28 ports quantity | 6 |
| SFP28 ports quantity | 48 |
| Security | |
| IGMP snooping | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP server |
| Multicast features | |
| IPv6 multicast entries | 4094 |
| IPv4 multicast entries | 4094 |
| Protocols | |
| Routing protocols | BGP4, OSPF, OSPFv3, RIP-2, RIPng |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Ventilation system | Back-to-front airflow |
| Number of fans | 6 fan(s) |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 550 W |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1876 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (438.2 mm) |
| Depth | 20.1" (511 mm) |
| Height | 1.75" (44.4 mm) |
| Weight | 21.5 lbs (9.75 kg) |
| Other features | |
| Ethernet LAN data rates | 1000,10000,25000,40000,100000 Mbit/s |
