CyberPower PDU20MVHVIEC24F power distribution unit (PDU) 24 AC outlet(s) 0U Black
308.92 CAD
Skip to product information
Out of stock
CyberPower PDU20MVHVIEC24F power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
PDU20MVHVIEC24F
308.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
5.42 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Real-time Local Monitoring
- Industrial-grade Metal Housing
- Cord Retention Tray
- Overload Protection
- Adjustable Mounting Brackets

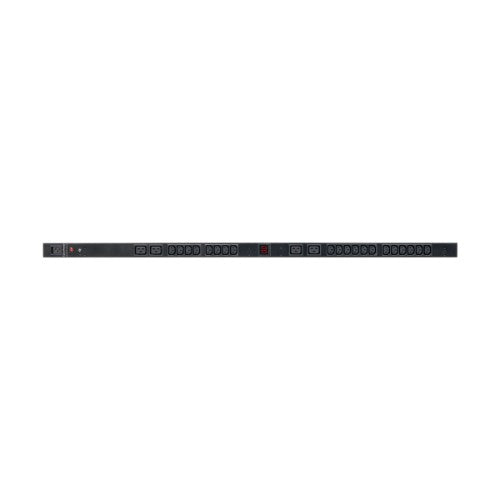

The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVIEC24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Type | Single-phase |
| Display | LED |
| Product colour | Black |
| Certification | UL60950 |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | C20 coupler |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | UL60950 |
| Surge protection | Yes |
| Ergonomics | |
| Display | LED |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 200 - 240 V |
| Maximum current | 16 A |
| Nominal output voltage | 200 - 240 V |
| Power protection features | Overload |
| Surge protection | Yes |
| AC input frequency | 50 / 60 Hz |
| Circuit breaker | Yes |
| Certificates | |
| Certification | UL60950 |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Operating temperature (T-T) | 32 - 95 °F |
| Weight & dimensions | |
| Weight | 5.8 lbs (2.63 kg) |
| Weight (imperial) | 7 lbs |
| Dimensions (W x D x H) (imperial) | 1.75 x 2.25 x 48" |
| Width | 1.75" (44.5 mm) |
| Depth | 1.5" (38.1 mm) |
| Height | 48" (1219.2 mm) |
| Package width | 6.06" (154 mm) |
| Package depth | 2.87" (73 mm) |
| Package height | 52.4" (1332 mm) |
| Package weight | 11.9 lbs (5.42 kg) |
| Packaging data | |
| Package width | 6.06" (154 mm) |
| Package depth | 2.87" (73 mm) |
| Package height | 52.4" (1332 mm) |
| Package weight | 11.9 lbs (5.42 kg) |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | RoHS |
| Logistics data | |
| Warranty period | 2 year(s) |
